55mm Blade Propeller+615 CW & CCW Coreless Brushed Motor for Indoor Racing Drone

Rs. 641.25
Rs. 641.25
Write a Review
Earn 320 Reward Points. Learn More...

Here is only a suggestion: Reward Points function (demo function). To use real Reward Points, you need a 3rd party Shopify App.

Your items may arrive sooner than the estimated delivery date. Ralph Lauren reserves the right to send packages via other shipping methods based on the shipping destination as long as orders will still arrive within the arrival times outlined on RalphLauren.com.

When you choose the Economy delivery option, packages are delivered Monday through Saturday 8 AM to 4:30 PM. Orders sent by Fast, 2-Business-Day or Next-Day shipping methods are delivered Monday through Friday from 8 AM to 4:30 PM.

We recommend choosing Fast or Next-Day delivery if you are shipping your package to a business address. You will be asked to provide a telephone number on the shipping page of checkout, which is important in the event the courier needs to arrange a delivery time with you.

You will also be asked to provide an email address, to which we will send confirmation that your order was placed.

Add to wishlist Added to wishlist
Order in the next
to get it by
Ask us any Question
Details

Properties:

  1. Model: 615
  2. Shaft Size: 1.0 mm
  3. Rated Voltage: 3.7 V.
  4. Rated RPM: 60000.
  5. Wire Length: 6cm
  6. Prop. Length: 55mm
  7. Prop. Material: Glass Fiber

Full- Description

If you are new in the multirotor/drone hobby area and want to try out some basic multirotor designs so as to enhance your basic knowledge about multirotor!!! Don’t wait and get this combo of 55mm Blade Propeller Prop with 615 CW & CCW Coreless Brushed Motor For Indoor Racing Drone Quad-copter.
These lightweight brushed DC coreless motors are the best choice for your small drone, offering you an excellent affordable price when compared with costly BLDC motors.
This 615 Magnetic Micro Coreless Motor is very compact and lightweight DC motor nicely crafted for perfectly matching with your small 100mm like multirotor frames.
They are rated at 60000 RPM which is more than needed to lift and push your drone to the target. These are less noisy with low resistance. The only drawback of using coreless is the amount of torque they provide, as they are High Speed and Low Torque motors.

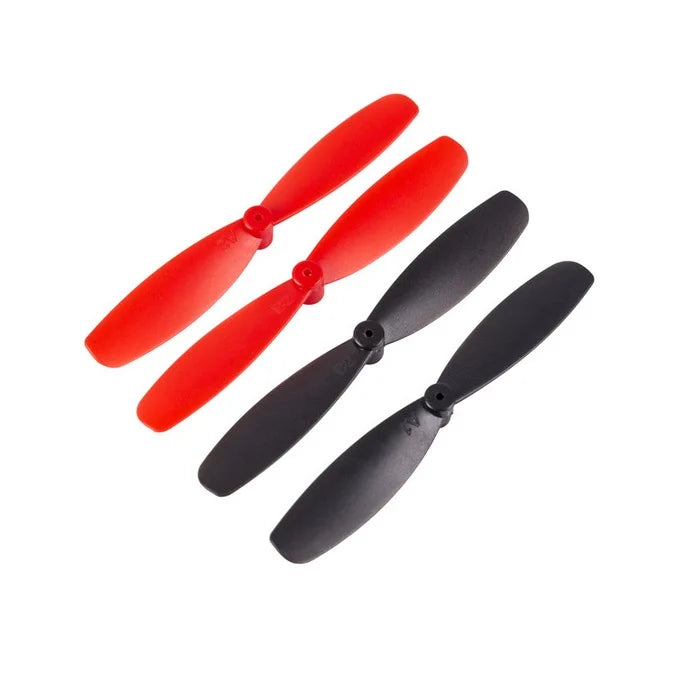

In this pack, we have included high-quality 55mm propeller compatible with 720, 8520, 615 Coreless Motor. Their smooth surface can greatly decrease the wind resistance during the flight. Therefore, the propellers can rotate in high-speed easily when reliably mounted on the quadcopter.
The propellers are made of high-tenacity material and thus can sustain crashes. Therefore, this propeller with 615 Coreless motors is a perfect combination for your multirotor. Only, Plug-n-Play.
Instruction :

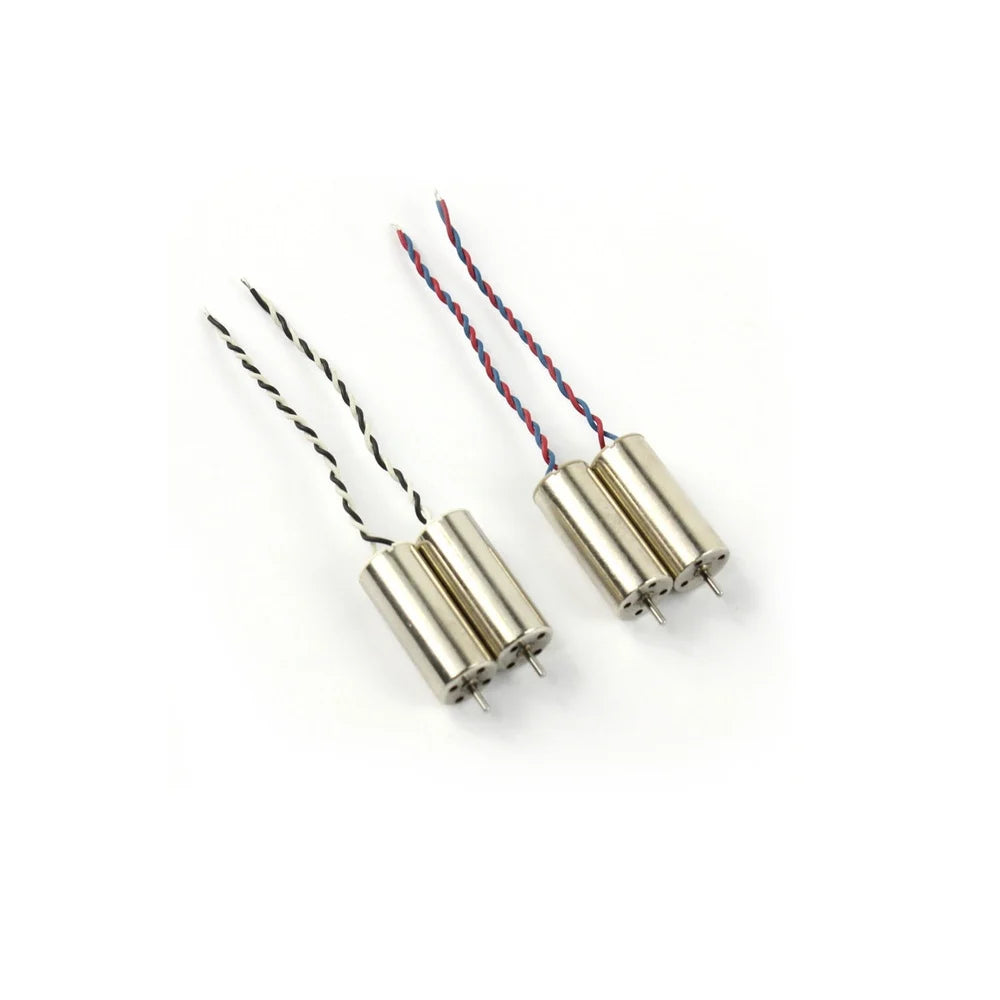

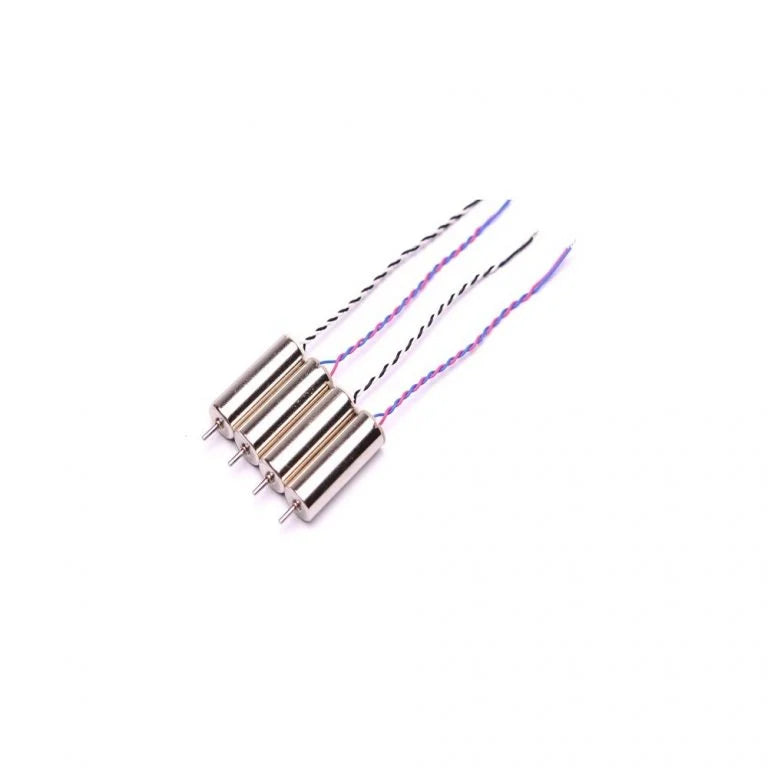

615 Magnetic Micro Coreless Motor with Red and the Blue wire is CW rotation motor & Black and the White wire is CCW rotation motor.

Features :

  1. 615 Coreless motor is High Speed and Low Torque motor.
  2. Less noisy operation.
  3. Offers low resistance.
  4. They are equipped with high-quality magnets.
  5. This coreless motor supports 1S battery.

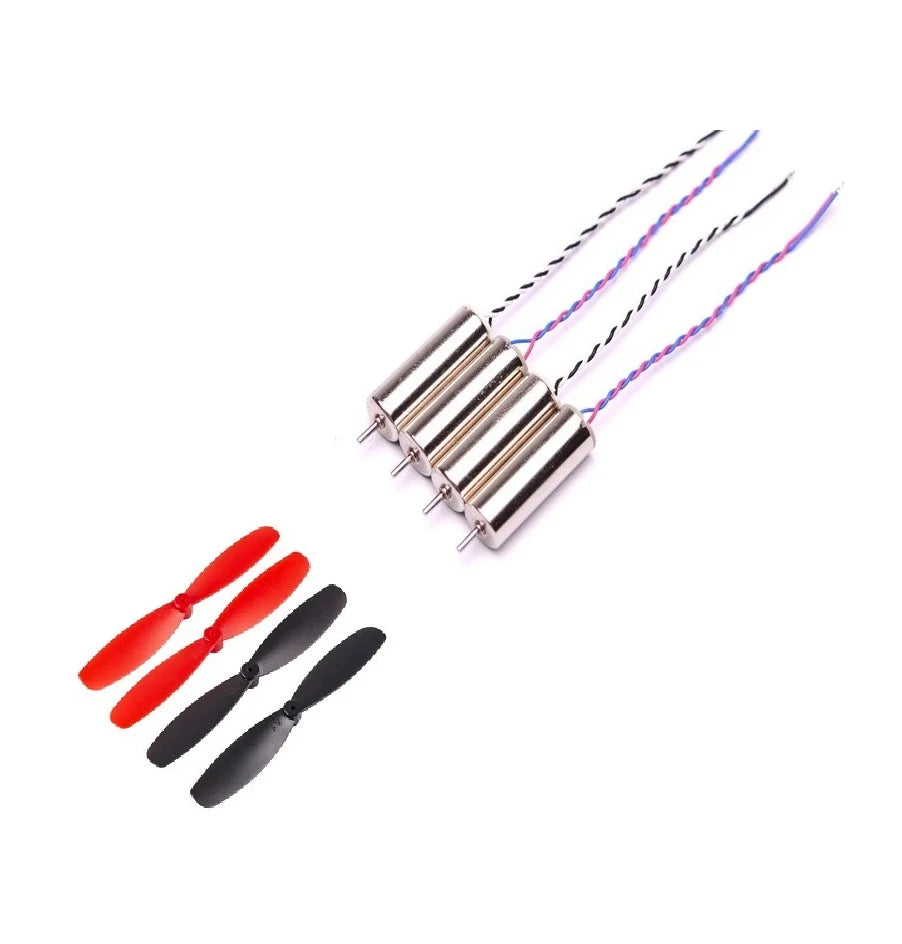

Package Includes :

  • 2 x 615 Magnetic Micro Coreless Motor (CW)
  • 2 x 615 Magnetic Micro Coreless Motor (CCW)
  • Set of 2 55mm (2.2inch) Blade Propeller prop (1xRed + 1xBlack)

Link for 100mm Micro Multicopter: Q100 Brushed Quad-copter Frame

Specification:

Model

615
Operating Temperature (°C):

-20 to 60
Rated Voltage(V)

Rated Speed (RPM)

41000, 60000
Rated Load Current (mA)

580
Shaft Diameter (mm)

1
Motor Color

Silver
Motor Material

Metal
Motor Length (mm)

15
Motor Diameter(mm)

6
Prop. Length(mm)

55
Prop. Material

Glass Fiber
Cable Length (cm)

6
Shipping Weight 0.06 kg
Shipping Dimensions 15 × 10 × 6 cm
