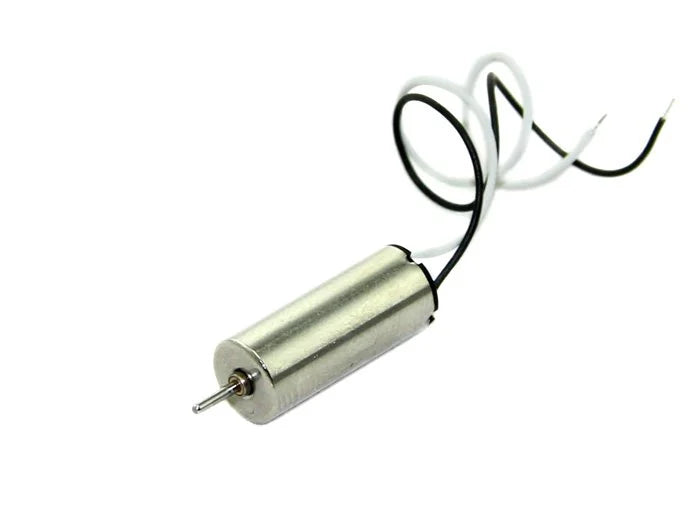

615 Magnetic Micro Coreless Motor for Micro Quadcopters – 2xCW & 2xCCW

Regular price
Rs. 615.00
Sale price
Rs. 615.00
Regular price
Earn 307 Reward Points. Learn More...
Order in the next
to get it by
Details

Properties:

  1. Model: 615
  2. Shaft Size: 0.8 mm
  3. Rated Voltage: 3.7 V.
  4. Rated RPM: 60000.
  5. Wire Length: 6cm
  6. Prop. Length: 65 or 55 mm
  7. Prop. Material: Glass Fiber

Full- Description

If you are new in multirotor/drone hobby area and want to try out some basic multirotor designs so as to enhance your basic knowledge about multirotors!!! Don’t wait and get this combo of 615 Magnetic Micro Coreless Motor for Micro Quadcopters – 2xCW & 2xCCW.

These lightweight brushed DC coreless motors are the best choice for your small drone, offering you an excellent affordable price when compared with costly BLDC motors.

This 615 Magnetic Micro Coreless Motor for Micro Quadcopters are very compact and lightweight DC motor nicely crafted for perfectly matching with your small 100mm like multirotor frames.

The speed is 38000 RPM which is more than needed to lift and push your drone to the target. These are less noisy with low resistance. The only drawback of using coreless is the amount of torque they provide, as they are High Speed and Low Torque motors.

Instruction :

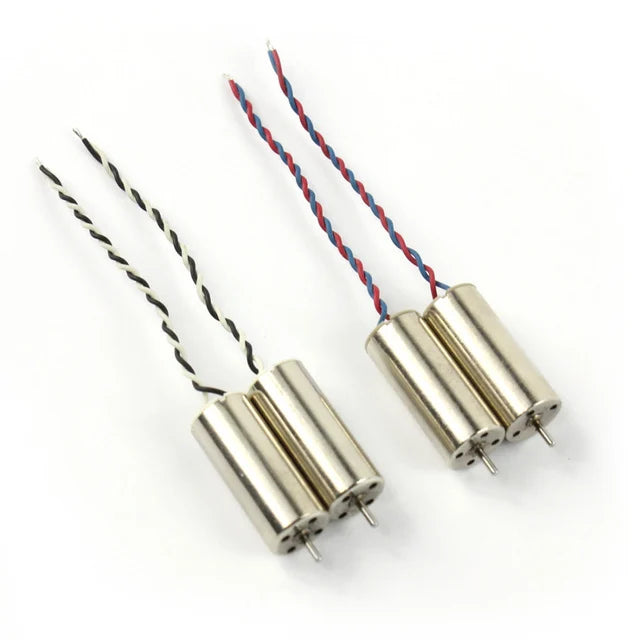

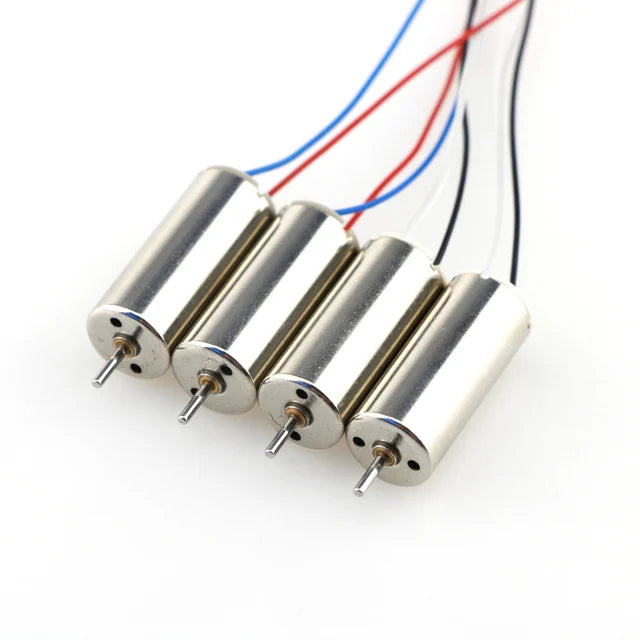

615 Magnetic Micro Coreless Motor with Red and the Blue wire is CW rotation motor & Black and the White wire is CCW rotation motor.


Features :

  1. 615 Coreless motor is High Speed and Low Torque motor.
  2. Less noisy operation.
  3. Offers low resistance.
  4. They are equipped with high-quality magnets.
  5. This coreless motor supports 1S battery.

Package Includes :

  • 2 x 615 Magnetic Micro Coreless Motor (CW)
  • 2 x 615 Magnetic Micro Coreless Motor (CCW)

Link for 100mm Micro Multicopter: Q100 Brushed Quad-copter Frame


      Specification:

      Rated Speed (RPM)

      38000

      Rated Voltage(V)

      Rated Load Current (mA)

      580

      Operating Temperature (°C):

      -20 to 60

      Shaft Diameter (mm)

      0.8

      Compatible Propellers Size (inch)

      2 ~ 2.5

      Motor Color

      Silver

      Motor Material

      Metal

      Motor Diameter(mm)

      6

      Motor Length (mm)

      15

      Cable Length (cm)

      6

      Shipping Weight 0.06 kg
      Shipping Dimensions 15 × 10 × 6 cm
