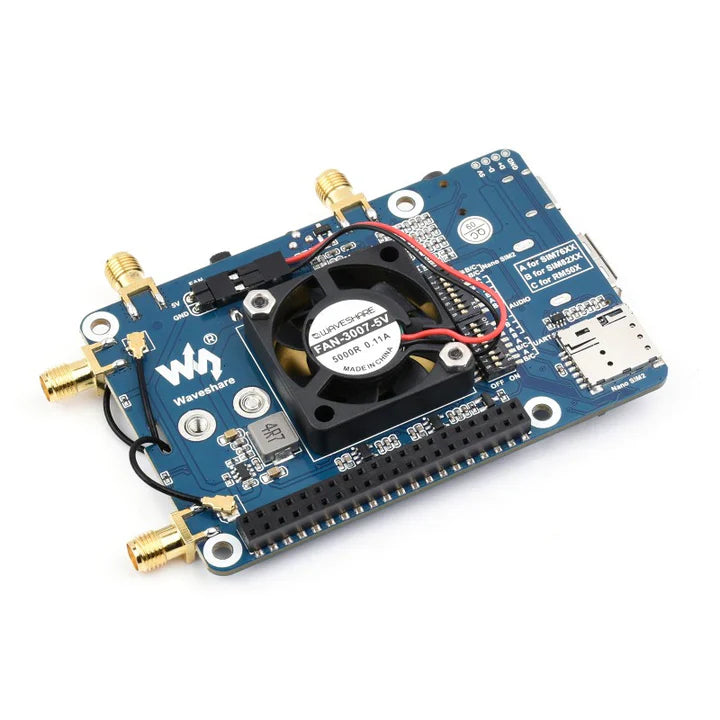

Based on Qualcomm platform, support 5G NSA and SA networking, support multi-mode & multi-band
Multi-constellation dual-band positioning: GPS, Beidou, Glonass, Galileo, and QZSS
Operating system support: Windows/Linux/Android
USB 3.1 port (USB 2.0 compatible) for connecting to PC, Raspberry Pi, or Jetson Nano host board to enable high speed 5G communication

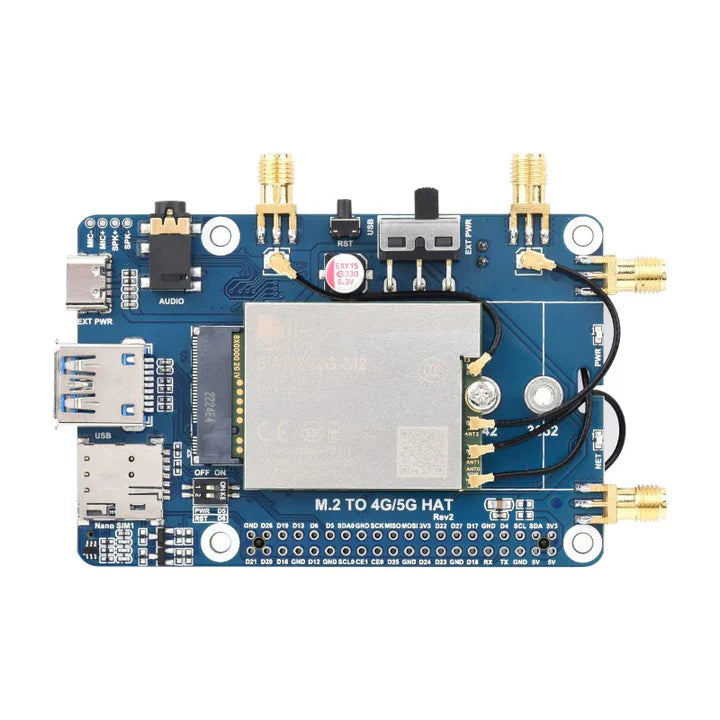

Standard M.2 B KEY slot, compatible with different 5G modules: SIM8202X-M2 / SIM8200EA-M2 / SIM8262X-M2 / RM5XX series, setting via DIP switches
Onboard UART, PWR, and RST control pin, built-in voltage level translator, enabled via DIP switch, for use with hosts like Raspberry Pi or Arduino
Onboard USB-C connector, enabled via switch, for connecting standalone power supply for the module, allows more loads, stable amd flexible power supply
Onboard power supply on/off switch, reset button and LED indicator, easy to turn on/off the module or monitor the operating status
4x SMA to IPEX antenna connectors, with pre-soldered SMA terminals for connecting antennas
2x SIM card slot, dual card single standby, switchable via AT command
Onboard audio jack and audio decoder, allows audio operation like making phone call
High efficiency power supply circuit, up to 3A output current
Wiki: www.waveshare.com/wiki/SIM8202G-M2_5G_HAT_(B)
Wiki: www.waveshare.com/wiki/SIM8262E-M2_5G_HAT
Documentation to make it work with Jio 5G SIM (India) .
|
|
|
|
Without Case |

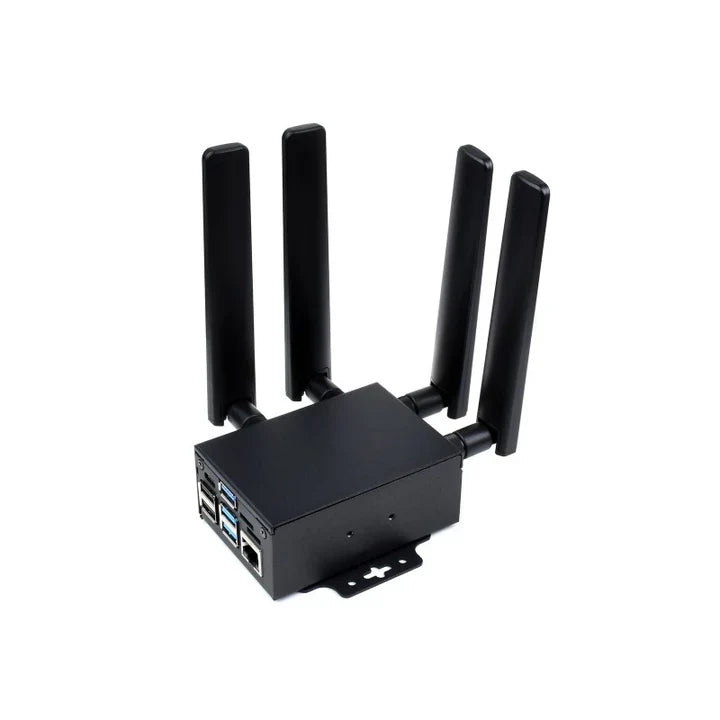

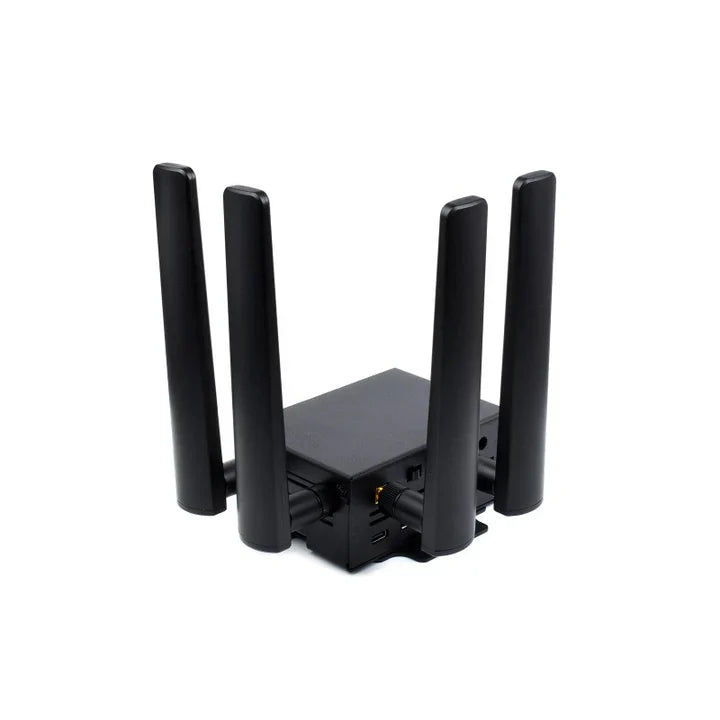

With Case |
|
|
SIM8262A-M2 |
|||
|
5G STANDARD |
3GPP R15 |
3GPP R16 |
||
|
CHIP |
Qualcomm Snapdragon X55 |
Qualcomm Snapdragon X62 |
||
|
FREQUENCY BAND |
||||
|
Sub-6G |
n1, n2, n3, n5, n7, n8, n12, n20, n28, n38, n40, n41, n48, n66, n71, n78 |
n1, n2, n3, n5, n7, n8, n12, n20, n28, n38, n40, n41, n66, n71, n77, n78, n79 |
n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n77, n78,n79 |
n2, n5, n7, n12, n13, n14, n25, n30, n41, n48, n66, n71, n77, n78, n79 |
|
LTE-FDD |
B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71 |
B1, B3, B5, B7, B8, B18, B19, B20, B26, B28, B32 |
B2, B4, B5, B7, B12, B13, B14, B25, B26, B29, B30, B66, B71 |
|
|
LTE-TDD |
B34, B38, B39, B40, B41, B42, B43, B48 |
B38, B39, B40, B41, B42, B43 |
B41, B46, B48 |
|
|
WCDMA |
B1, B2, B3, B4, B5, B8 |
B1, B5, B8 |
B2, B4, B5 |
|
|
GNSS |
GPS, GLONASS, Beidou, Galileo, and QZSS |
|||
|
DATA RATE |
||||
|
Sub-6G |
2.4 Gbps (DL) / 500 Mbps (UL) |
|||
|
LTE |
1 Gbps (DL) / 200 Mbps (UL) |
|||
|
HSPA+ |
42 Mbps (DL) / 5.76 Mbps (UL) |
|||
|
SOFTWARE FUNCTIONS |
||||
|
Operating systems |
Windows/Linux/Android |
|||
|
Communication protocols |
TCP/IP, IPV4, IPV6, Multi-PDP, FTP, FTPS, HTTP, HTTPS, MQTTS, DNS, SSL3.0 |
|||
|
Dial Up |
RNDIS、NDIS、PPP、MBIM |
|||
|
SMS |
Supports MT, MO, CB, Text, PDU |
|||
|
Firmware upgrade |
Supports firmware upgrade via USB port |
|||
|
HARDWARE SPECIFICATIONS |
||||
|
SIM Card |
1.8V/2.95V |
|||
|
Antenna |
For 3G/4G/5G/GNSS |
|||
|
6 × IPEX-4 connectors |
4 × IPEX-4 connectors |
|||
|
Power Supply |
3.135~4.4V |
|||
|
Form Factor |
M.2 |
|||
|
Dimensions |
52.0 × 30.0 × 2.3 mm |
42.0 × 30.0 × 2.3 mm |
||
|
Operating Temperature |
-30℃ ~ +70℃ |
|||
|
APPLICATIONS |
||||
|
Applicable regions |
China, US, Japan, South Korea, Europe, the Middle East, Latin America |
except Americas |
Americas |
|
|
The applicable regions above are for reference only, please choose the right module according to your local operator network coverage and supported frequency bands |
||||
|
Application examples |
CPE, Smart gateway, Drone, Live streaming, Remote medical treatment, Intelligent security |
|||
Based on Qualcomm platform, support 5G NSA and SA networking, support multi-mode & multi-band
* the frequency band diagram above is for reference only, please confirm the supported bands according to your local service provider.

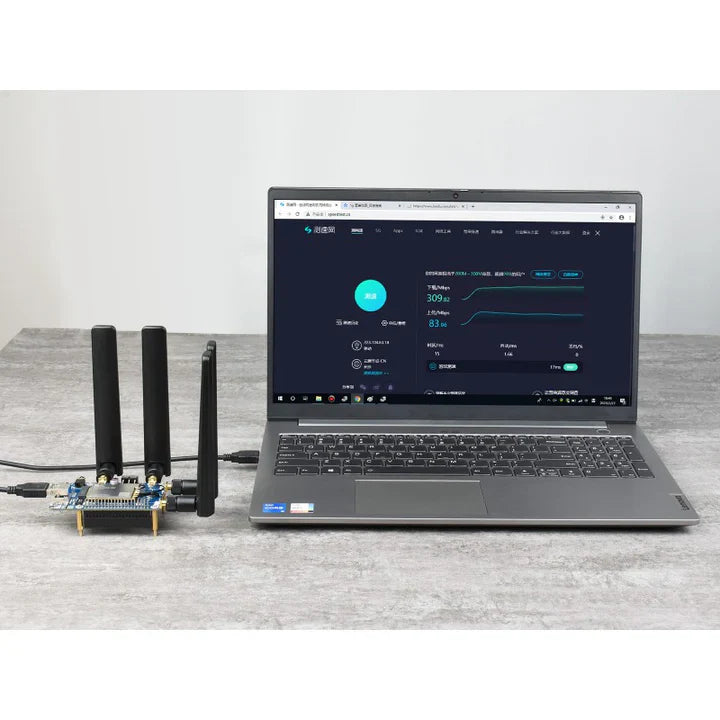

Just plug it into USB port, go through some simple configuration, the high speed 5G network connection will be ready to use
|

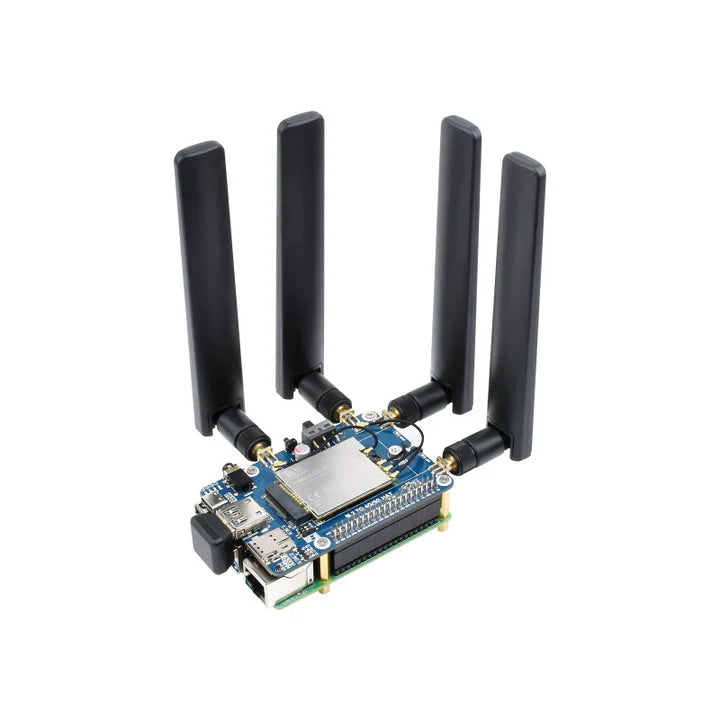

connecting with Raspberry Pi 4B |
connecting with Raspberry Pi 3B+ |
connecting with CM4 IO Base |
* for reference only, please check the Package Content section for exact part list.
