HobbyWing Platinum PRO V4-60A (3-6S)

Description:

High-performance 32-bit processor with a running frequency of 72MHz combined with advanced algorithm optimizes the speed governing. Together with the adjustable governor parameters guarantees every pilot a precise control experience. The built-in switch mode BEC with an adjustable voltage range from 5V to 8V, a continuous current of over 7A and peak current of 18A can supply enough power for your servos to operate efficiently. The DEO (Driving Efficiency Optimization, or so called "Active freewheeling") technology implemented in the ESC has multiple advantages. Quicker response to the throttle change. Higher driving efficiency, longer flight time. Lower ESC temperature and a more reliable operation. This Platinum 60A V4 ESC has "Brake Disabled, Normal Brake, Proportional Brake and Reverse Brake" four brake modes. The brake amount is adjustable in normal brake mode; in proportional brake mode, the brake force will be automatically allocated based on the position of the radio throttle stick; in reverse brake mode, the motor rotation can be changed via a spare transmitter channel. Multiple protection features include, ESC thermal, capacitor thermal (HOBBYWING-patented technology), ESC overload, throttle signal loss (or Fail Safe), and low voltage cutoff effectively prolongs the service life of the ESC. A separate programming port for connecting the programmer on this ESC allows user to Program ESC, check flight data include minimum voltage, maximum temperature, standardized RPM and speed curve (in Heli Governing Store mode) of the flight data recorded by the ESC, Upgrade ESC firmware With a multifunction LCD program box or a Wi-Fi Module & our Apple/Android phone App.

Features:

• One of a Kind Design The elegant case is made from aluminum alloy material. Each cooling slot and its fin were carefully designed and arranged, and the case has gone through oxidation, coloring and edge-highlighting.

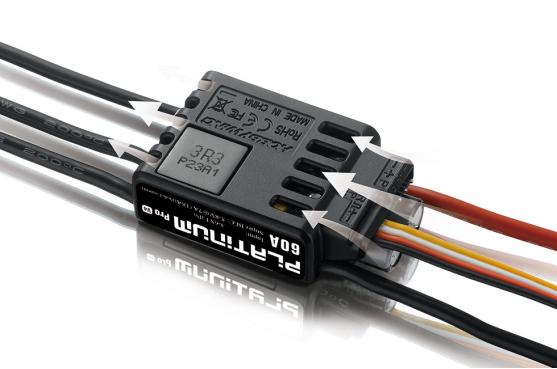

• Innovative Heat Dissipation Structure The innovative "duo" stacking structure allows all components on both sides of the printed circuit boards to quickly conduct heat to the aluminum case. Excellent Motor Speed Governing
• The high performance 32-bit processor, combined with advanced algorithm, makes the motor speed-governing excellent for different conditions. With the adjustable sensitivity of speed-governing, every pilot can find the most suitable settings for his helicopter.
• Super Soft Start-Up The Platinum 60A makes the motor start extremely soft and avoids tail-drift issues. The start-up time is adjustable within 8 to 25 seconds. This will definitely create a perfect starting point for every flight.
• 3-6S LiPo

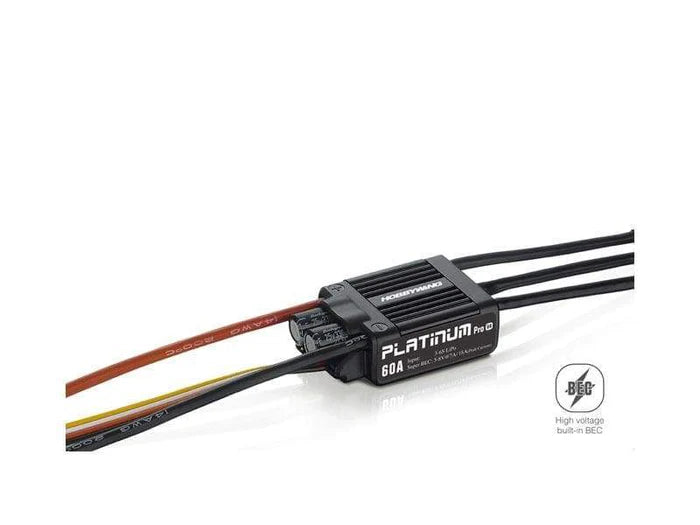

• Built-in BEC 5V-8V (default 5V)

• require LCD program box (purchase separately)

Package Includes:

• ESC

• Accessories and hardware

Specification:
