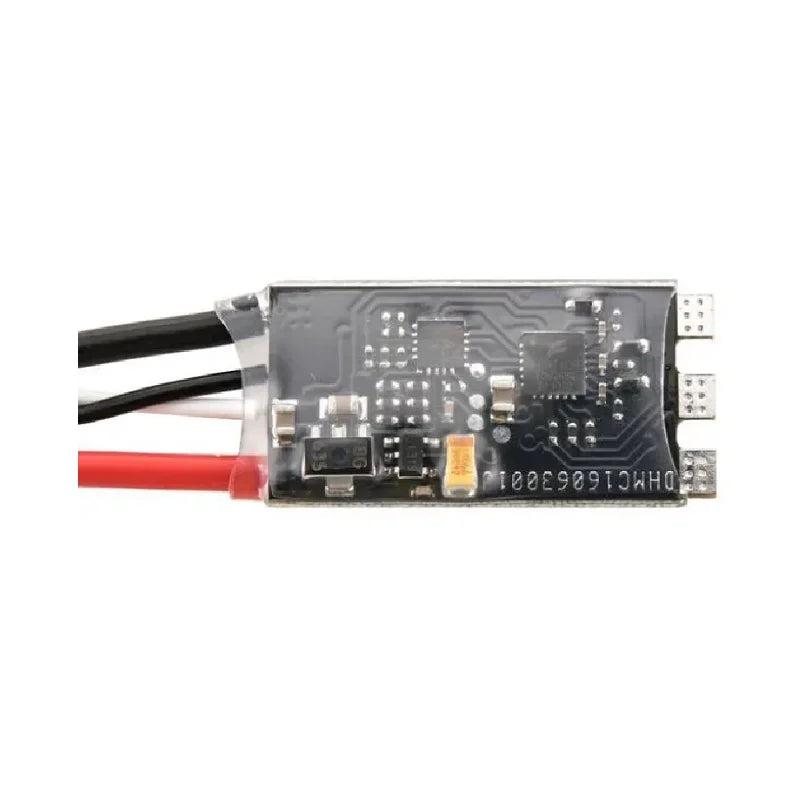

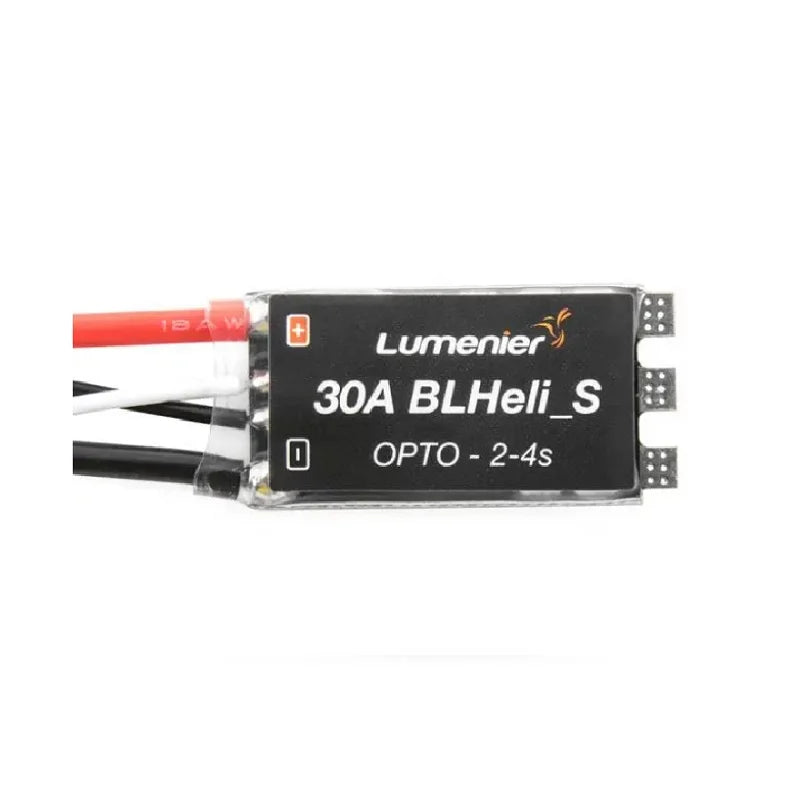

Lumenier 30A BLHeli_S ESC OPTO (2-4s) DSHOT

Rs. 2,399.00
Rs. 2,399.00
Write a Review
Earn 1199 Reward Points. Learn More...

Here is only a suggestion: Reward Points function (demo function). To use real Reward Points, you need a 3rd party Shopify App.

Your items may arrive sooner than the estimated delivery date. Ralph Lauren reserves the right to send packages via other shipping methods based on the shipping destination as long as orders will still arrive within the arrival times outlined on RalphLauren.com.

When you choose the Economy delivery option, packages are delivered Monday through Saturday 8 AM to 4:30 PM. Orders sent by Fast, 2-Business-Day or Next-Day shipping methods are delivered Monday through Friday from 8 AM to 4:30 PM.

We recommend choosing Fast or Next-Day delivery if you are shipping your package to a business address. You will be asked to provide a telephone number on the shipping page of checkout, which is important in the event the courier needs to arrange a delivery time with you.

You will also be asked to provide an email address, to which we will send confirmation that your order was placed.

Add to wishlist Added to wishlist
Order in the next
to get it by
Ask us any Question
Details

Properties:

  1. Input: 2-4s LiPoly
  2. Constant: 30 Amps
  3. Burst: 35 Amps
  4. BEC: No BEC, OPTO only

Full- Description

The Lumenier 30A BLHeli_S ESCs feature the powerful BusyBee2 (EFM8BB21F16) chip that runs at 48MHz 2x the speed of previous BLHeli_S ESCs. This BB2 processor allows the ESC to perform with incredible precision (up to 500kv eRPM support), resulting in smooth and responsive power and taking full advantage of the BLHeli_S firmware. The ESCs are low profile and compact in size, saving weight and making builds easy. These ESCs are OPTO (no BEC) and come pre-soldered with motor, signal, and power wires for your convenience. The ESC features new BLHeli_S firmware pre-installed on them. They are compatible with PWM, Oneshot125, Oneshot42, Multishot, and DSHOT protocols. Simply enable the feature in the flight controller software and the ESC will automatically match it.

These BLHeli_S ESCs feature hardware PWM controllers running at 36KHz, which is more than double of previous software PWM ESCs at 16KHz. This results in ultra-smooth throttle response and near-silent motor operation.

Features:

  1. New BusyBee2 MCU at 48MHz, up to 500k eRPM support
  2. Improved firmware using BLHeli_S
  3. Hardware PWM driver at 36KHz
  4. Supports DSHOT, Oneshot125 (125-250us), Oneshot42(41.7-83.3us) and Multishot (5-25us). Auto-detection.
  5. Ultra Lightweight, and compact size
  6. Adaptive timing, compatible with a wide range of motors and Kv
  7. Synchronous rectification technology adds efficiency, damped light
  8. Powerful regenerative braking / active braking.
  9. 2-4s LiPo battery compatible
  10. DSHOT compatible

Package Includes:

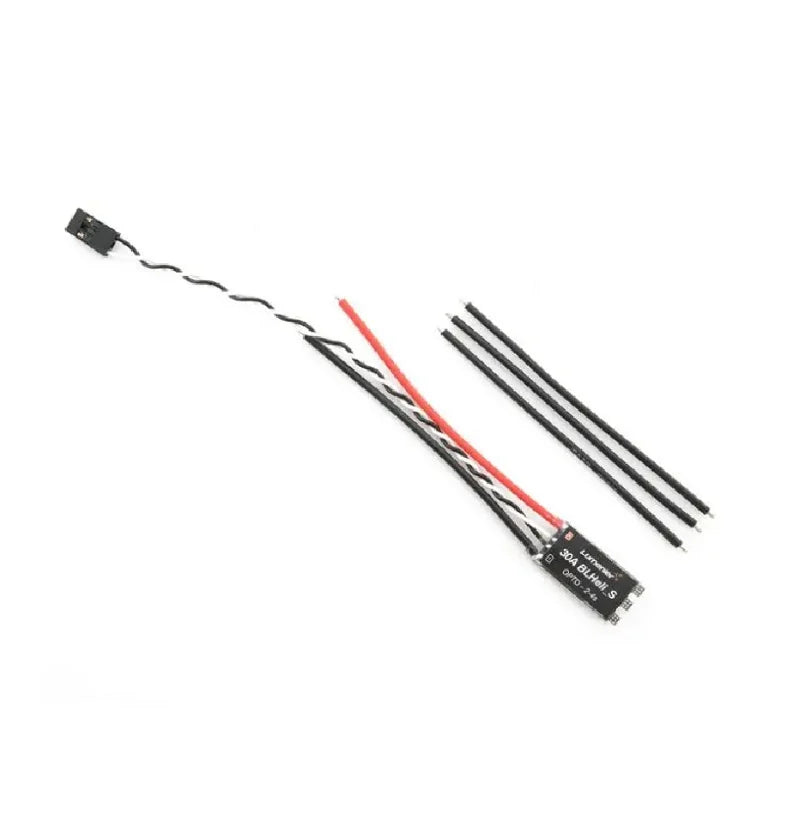

  • 1 x Lumenier 30A BLHeli_S ESC OPTO (2-4s) DSHOT

Specification:

Input

2-4s LiPoly
Constant Current (A)

30
Burst Current (A)

35
BEC

No BEC, OPTO only
Signal wire

150mm
Motor, Power wires

90mm
Length (mm):

28
Width (mm):

14
Height (mm):

5g
Weight (g):

5g (without motor wires)
Shipping Weight 0.011 kg
Shipping Dimensions 13 × 10 × 2 cm
