XRotor H100A 14S Foc V1

Rs. 30,000.00
Rs. 30,000.00
Write a Review
Earn 15000 Reward Points. Learn More...

Here is only a suggestion: Reward Points function (demo function). To use real Reward Points, you need a 3rd party Shopify App.

Your items may arrive sooner than the estimated delivery date. Ralph Lauren reserves the right to send packages via other shipping methods based on the shipping destination as long as orders will still arrive within the arrival times outlined on RalphLauren.com.

When you choose the Economy delivery option, packages are delivered Monday through Saturday 8 AM to 4:30 PM. Orders sent by Fast, 2-Business-Day or Next-Day shipping methods are delivered Monday through Friday from 8 AM to 4:30 PM.

We recommend choosing Fast or Next-Day delivery if you are shipping your package to a business address. You will be asked to provide a telephone number on the shipping page of checkout, which is important in the event the courier needs to arrange a delivery time with you.

You will also be asked to provide an email address, to which we will send confirmation that your order was placed.

Add to wishlist Added to wishlist
Order in the next
to get it by
Ask us any Question
Details

Description:

  1. Overview:

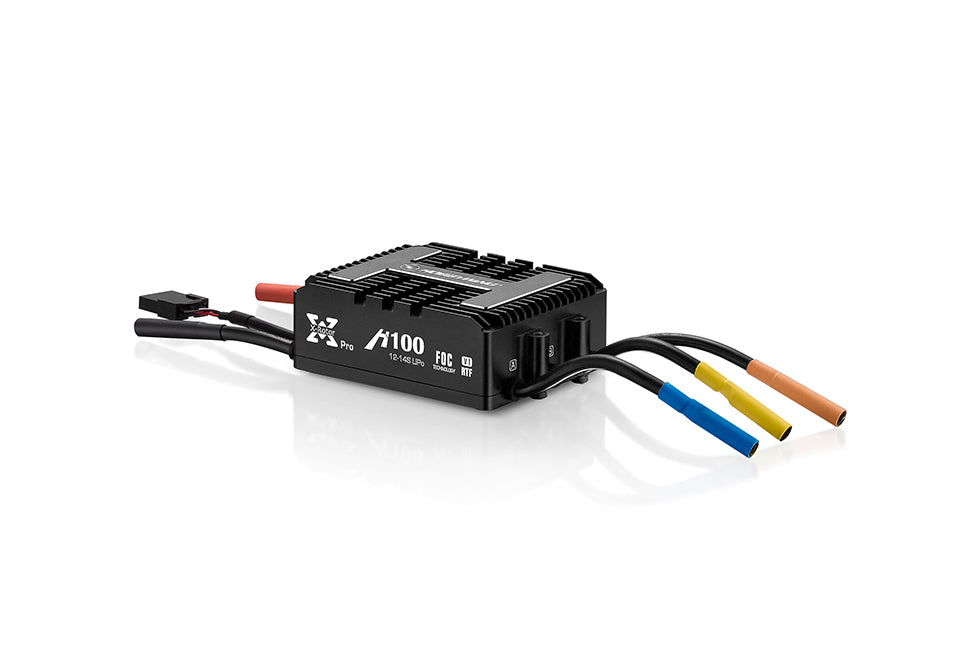

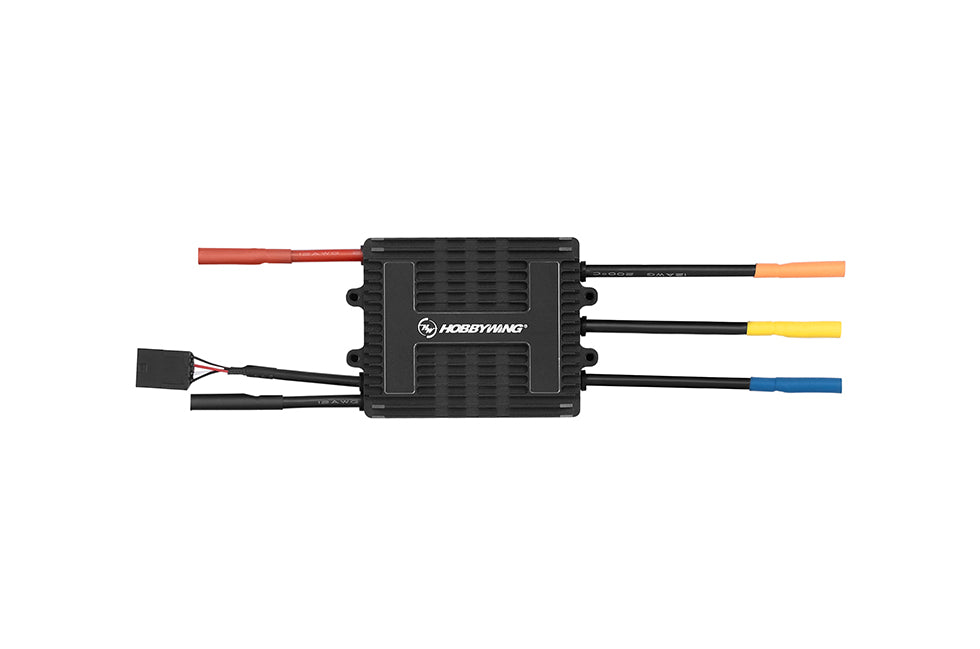

    • The XRotor H100A 14S FOC V1 is a high-performance ESC designed for use in drones and other electric vehicles.
    • It features several advanced features to enhance performance and safety.

  2. Propeller Position Customization:

    • The magnetic encoder detects the position of the motor when the propeller stops.
    • The propeller can be fixed in any position to reduce the drag during gliding.

  3. FOC Intelligent Drive:

    • FOC (Field-Oriented Control) provides accurate and efficient vector control.
    • Compared to ESCs with the same power, FOC offers:
      • Higher efficiency
      • Lower temperature
      • Faster response
      • Lower noise
      • Lower interference
      • Linear throttle response
      • Precise control
      • Kinetic energy recovery

  4. Protection and Fault Handling:

    • IP55 Waterproof and Dustproof:
      • Lightweight nano-coating and an integrated aluminum alloy shell provide protection.
      • Customizable IP67 protection available.
    • Intelligent protection features:
      • Power-on self-test
      • Undervoltage protection
      • Overvoltage protection
      • Overcurrent protection
      • Throttle signal loss protection
      • Infinite restart
    • Fault storage function for analysis.

  5. Heat Dissipation:

    • Large-area copper sheets and thermal-conducting copper strips on the aluminum alloy case ensure excellent heat dissipation.

  6. Information and Communication:

    • Real-time data acquisition using the black box function:
      • ESC status
      • Speed
      • Throttle
      • Current
      • Voltage
      • MOSFET temperature
      • Capacitor temperature
    • Data analysis with the DATALINK box.

  7. Quick Upgrade:

    • Software updates via the DATALINK box.
    • Supports flight control remote upgrade (optional).

Specification:


Input Voltage 12-14S (44-63V)
Continuous Current 40A (Good heat dissipation)
Peak Current (3s) 120A (3S)
Weight (Without Wires) 144.1g
Dimensions 83mm x 59mm x 27.4mm
Operating Temperature -20°C to 50°C
Magnetic Encoder One motor, one program
Propeller Positioning Custom motor
Waterproof Rating IP55 (Custom IP67)
Heat Dissipation Efficient copper sheets and aluminum alloy case design
Communication Protocol Serial port
Throttle Signal Isolated Isolated (Custom non-isolated)
PWM Input Signal Level 5V/3.3V
Throttle Signal Frequency 50-500Hz
Operating Pulse Width 1100μs-1940μs
Throttle Travel Calibration Yes
Intelligent Drive (FOC) Yes
Fault Storage Yes (for analysis)
Quick Upgrade Supports software updates via DATALINK box
