XRotor H300A 24S FOC & BLDC V1

Rs. 49,999.00
Rs. 49,999.00
Write a Review
Earn 24999 Reward Points. Learn More...

Here is only a suggestion: Reward Points function (demo function). To use real Reward Points, you need a 3rd party Shopify App.

Your items may arrive sooner than the estimated delivery date. Ralph Lauren reserves the right to send packages via other shipping methods based on the shipping destination as long as orders will still arrive within the arrival times outlined on RalphLauren.com.

When you choose the Economy delivery option, packages are delivered Monday through Saturday 8 AM to 4:30 PM. Orders sent by Fast, 2-Business-Day or Next-Day shipping methods are delivered Monday through Friday from 8 AM to 4:30 PM.

We recommend choosing Fast or Next-Day delivery if you are shipping your package to a business address. You will be asked to provide a telephone number on the shipping page of checkout, which is important in the event the courier needs to arrange a delivery time with you.

You will also be asked to provide an email address, to which we will send confirmation that your order was placed.

Add to wishlist Added to wishlist
Order in the next
to get it by
Ask us any Question
Details
Description:

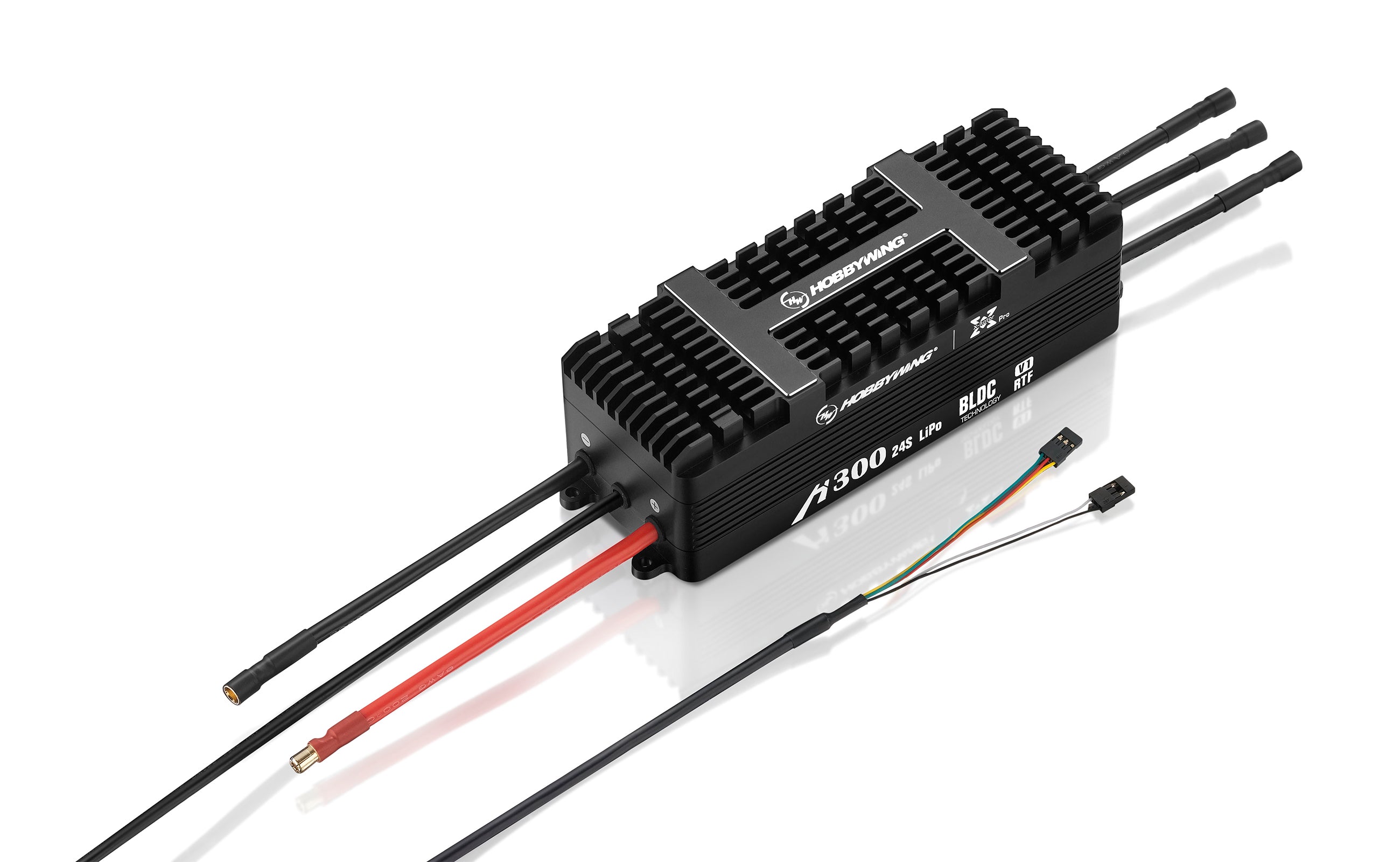

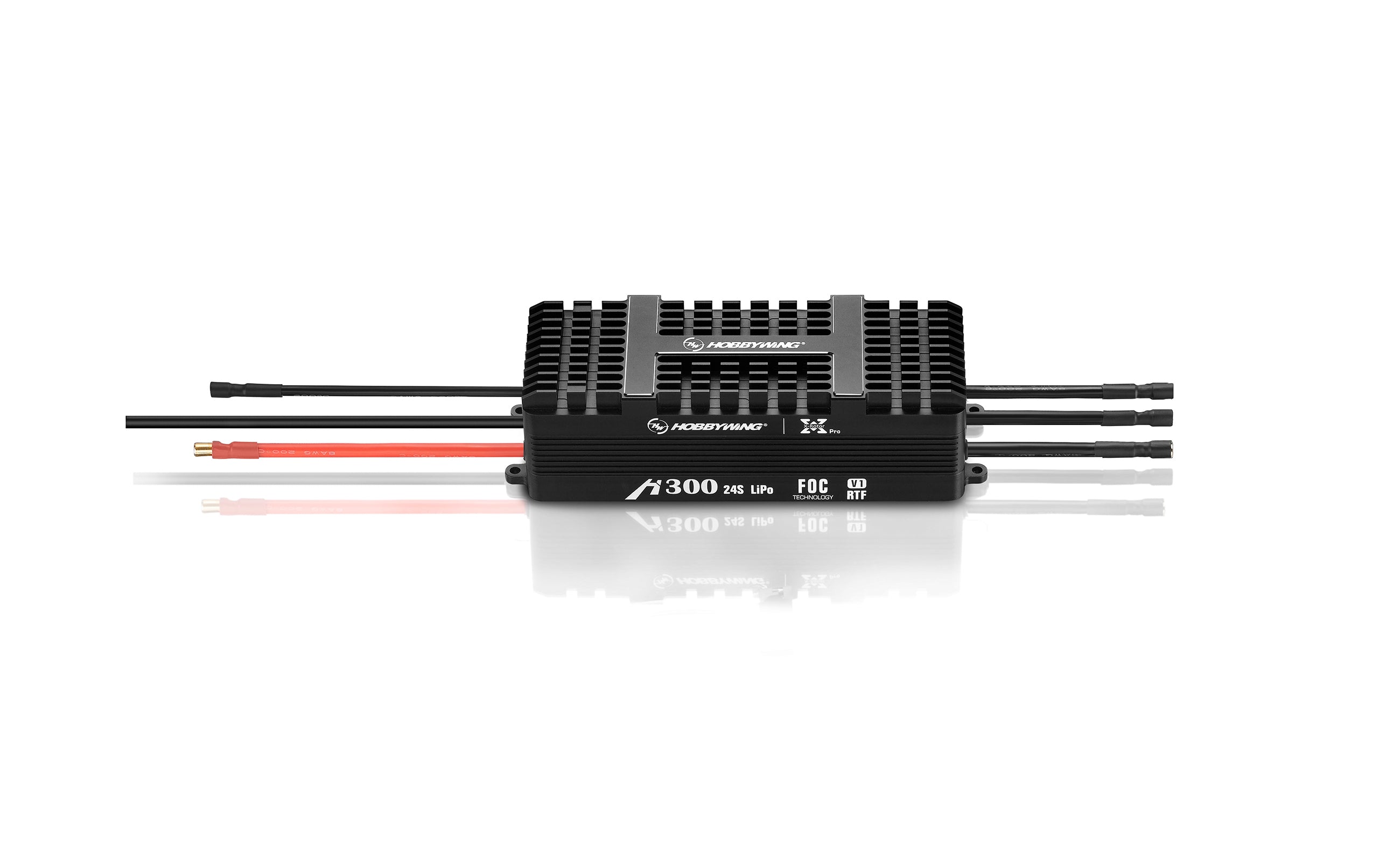

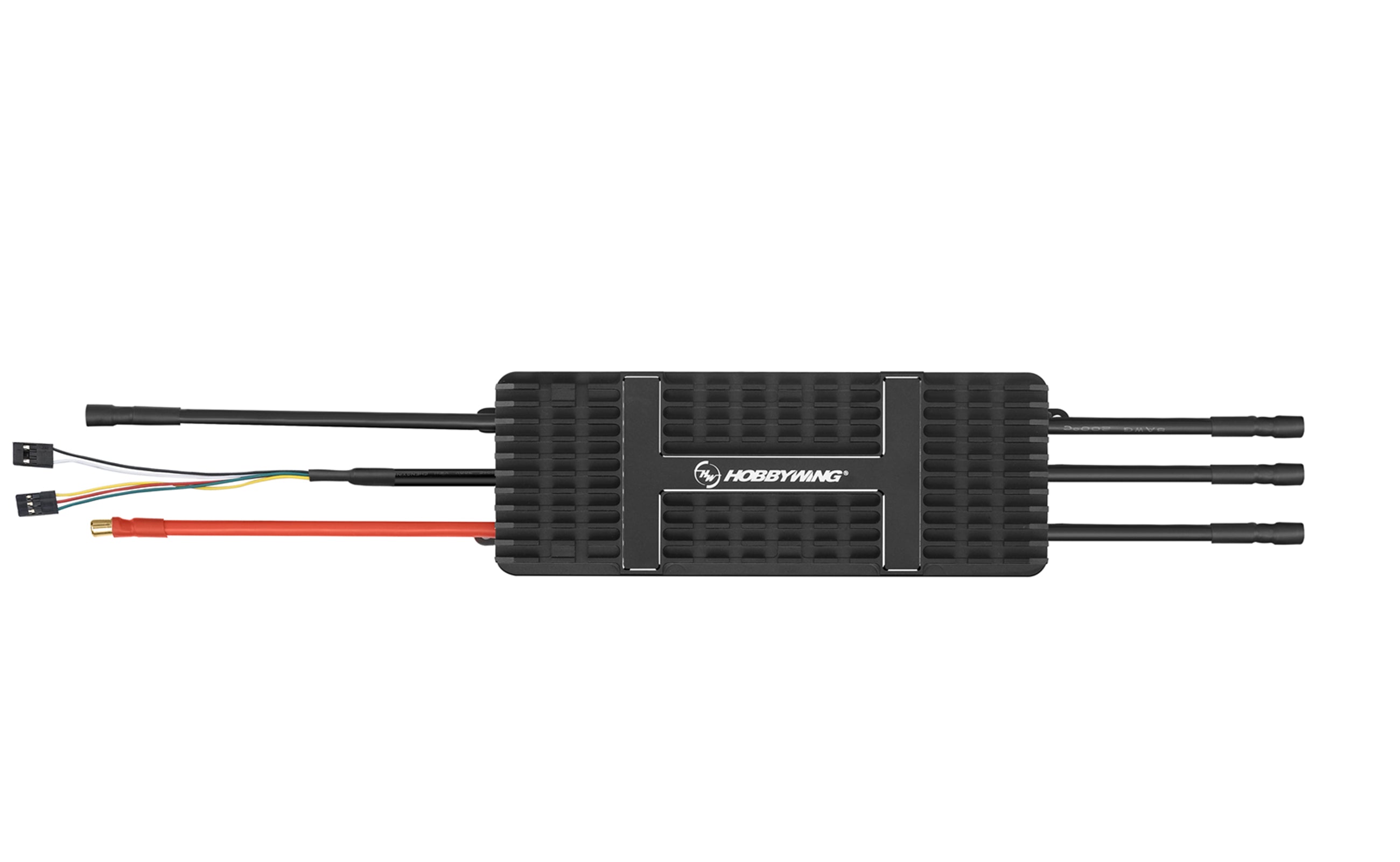

XRotor H300A 24S FOC & BLDC V1 is a high-voltage electronic speed controller (ESC) designed specifically for drones.

  1. Input Voltage: Supports 18-24S (54~104.4V) power supply.
  2. Peak Current (3s): Capable of handling up to 120A (with good heat dissipation).
  3. Weight: Approximately 1054.3g (excluding wires).
  4. Size: Dimensions are 213mm x 71mm x 61mm.
  5. Communication Protocol: Utilizes CAN (Custom Serial port) for communication.
  6. Throttle Signal Isolation: The throttle signal is isolated, ensuring reliable operation.

  7. Drivers:

    • The XRotor H300A supports two types of drivers:
      • BLDC (Brushless DC): High efficiency, compatible with square wave drive technology, and plug-and-play.
      • FOC (Field-Oriented Control): Provides precise and efficient vector control. It operates at low temperatures, offers fast response, low noise, low interference, linear throttle, and precise control. Additionally, it allows kinetic energy recovery.

    Protection Features:

    • IP55 Waterproof and Dustproof Rating: Achieved through lightweight nano-coating and an integrated aluminum alloy shell.
    • Customizable IP67 Protection: Includes intelligent protection mechanisms such as undervoltage, overvoltage, overcurrent, and throttle signal loss protection.
    • Fault Storage Function: The ESC records fault data for analysis.

    Heat Dissipation:

    • Patent-designed copper bar stacked structure ensures excellent heat dissipation.
    • Multilayer cooling design helps dissipate heat quickly.

    Anti-Interference:

    • Shielded cables and the ability to isolate throttle signals ensure strong anti-interference performance.
    • CAN Information and Communication: Real-time acquisition of key information (ESC status, speed, throttle, current, voltage, MOSFET temperature, and capacitor temperature) using the black box function.

    Quick Upgrades:

    • The latest Hobbywing software can be updated using the DATALINK box.
    • Optional support for flight control remote upgrades.

Specification:

Input Voltage 18-24S (54~104.4V)
Peak Current (3s) Up to 120A (with good heat dissipation)
Weight (excluding wires) Approximately 1054.3g
Dimensions 213mm x 71mm x 61mm
Communication Protocol CAN (Custom Serial port)
Throttle Signal Isolation Yes (reliable operation)
Drivers BLDC (Brushless DC) and FOC (Field-Oriented Control)
Protection Features IP55 Waterproof and Dustproof, Customizable IP67 Protection, Fault Storage Function
Heat Dissipation Patent-designed copper bar stacked structure, Multilayer cooling design
Anti-Interference Shielded cables, CAN Information and Communication
Quick Upgrades Hobbywing software updates via DATALINK box, Flight control remote upgrades
Additional Features
Dynamic Timing Adjustable timing for optimal motor performance
BEC Output Voltage 5.2V/6.0V/7.4V (adjustable)
Motor Compatibility Supports most brushless motors (compatible with various brands)
Throttle Range Calibration Precise calibration for smooth throttle response
Telemetry Support Real-time data transmission via CAN communication
Operating Temperature Range -20°C to 85°C
