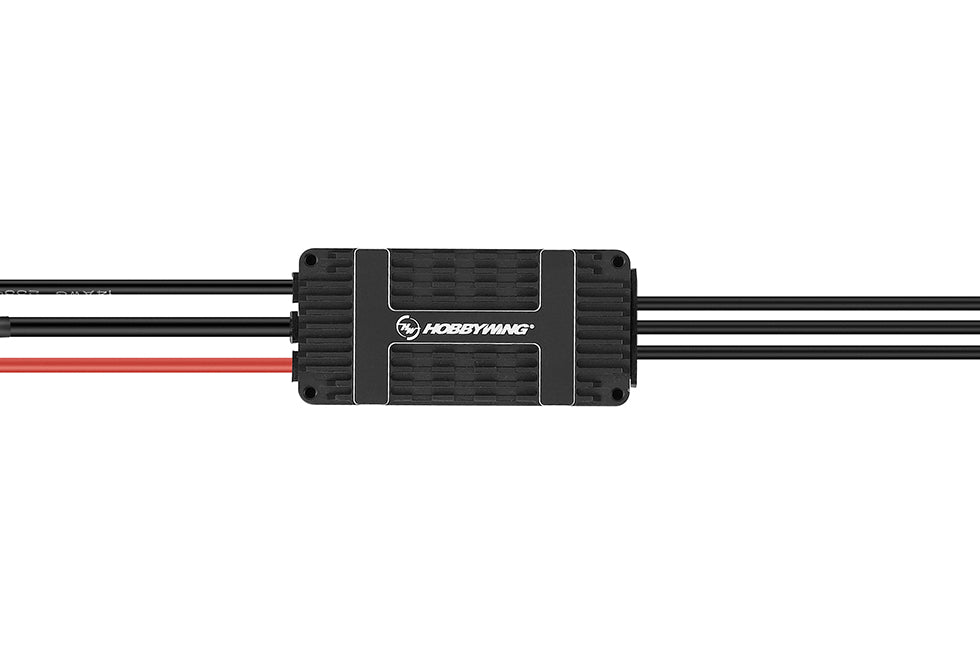

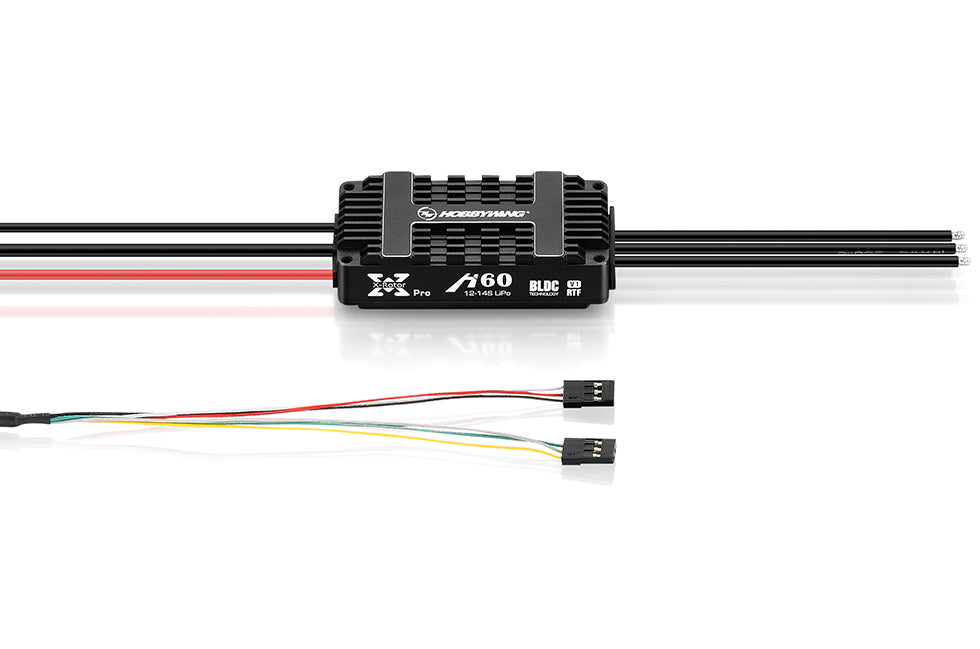

XRotor H60A 14S FOC & BLDC V1

Rs. 15,500.00
Rs. 15,500.00
Write a Review
Earn 7750 Reward Points. Learn More...

Here is only a suggestion: Reward Points function (demo function). To use real Reward Points, you need a 3rd party Shopify App.

Your items may arrive sooner than the estimated delivery date. Ralph Lauren reserves the right to send packages via other shipping methods based on the shipping destination as long as orders will still arrive within the arrival times outlined on RalphLauren.com.

When you choose the Economy delivery option, packages are delivered Monday through Saturday 8 AM to 4:30 PM. Orders sent by Fast, 2-Business-Day or Next-Day shipping methods are delivered Monday through Friday from 8 AM to 4:30 PM.

We recommend choosing Fast or Next-Day delivery if you are shipping your package to a business address. You will be asked to provide a telephone number on the shipping page of checkout, which is important in the event the courier needs to arrange a delivery time with you.

You will also be asked to provide an email address, to which we will send confirmation that your order was placed.

Add to wishlist Added to wishlist
Order in the next
to get it by
Ask us any Question
Details

Description:

  1. Overview:

    • The XRotor H60A 14S FOC & BLDC V1 is a high-performance ESC designed for use in drones and other electric vehicles.
    • It features two types of drivers: BLDC (Brushless DC) and FOC (Field-Oriented Control).
    • Let’s dive into the details of each type:

  2. BLDC (Brushless DC) Driver:

    • High Efficiency: Compatible with square wave drive technology, making it efficient and easy to use.
    • Plug and Play: You can connect it directly without complex setup procedures.
    • DEO Synchronous Rectification: This technology ensures better efficiency, resulting in a 10% improvement compared to traditional square wave ESCs.
    • Temperature Reduction: The use of DEO technology reduces the temperature by up to 10°C compared to square wave ESCs.

  3. FOC (Field-Oriented Control) Driver:

    • Precise and Efficient Vector Control:
      • Low temperature operation
      • Fast response
      • Low noise
      • Low interference
      • Linear throttle response
      • Precise control
      • Kinetic energy recovery
    • Protection Features:
      • IP55 Waterproof and Dustproof: Lightweight nano-coating and an integrated aluminum alloy shell provide protection.
      • Customizable IP67 Protection: Includes features like undervoltage protection, overvoltage protection, overcurrent protection, and more.
      • Fault Storage Function: The ESC records fault information for analysis.
    • Heat Dissipation:
      • Large-area heat sinks on the aluminum alloy case ensure efficient heat dissipation.
    • Anti-Interference:
      • Throttle signal isolation
      • Shielded cable for BLDC to prevent external interference
    • Information and Communication:
      • Real-time data acquisition (speed, current, voltage, etc.) using the black box function
      • BLDC serial communication and FOC-CAN bus communication with flight control
    • Quick Upgrade:
      • Supports software updates via the DATALINK box.

  4. Specifications:

    • Voltage: 14S (up to 58.8V)
    • Current: 60A continuous
    • Weight: Approximately 130g
    • Dimensions: 65.5mm x 41.5mm x 18.5mm

Specification:


Feature XRotor-Pro-H60A-14S-BLDC-RTF-HW-H-V1 XRotor Pro-H60A-14S-FOC-RTF-HW-H-V1
Input Voltage 12-14S (44-63V) 12-14S (44-63V)
Continuous Current 25A (Good heat dissipation) 25A (Good heat dissipation)
Peak Current (3s) 60A (3s) 60A (3s)
Operating Temperature -20°C~50°C -20°C~50°C
Compatibility Good One motor, one program
Magnetic Encoder NO NO
Waterproof Rating IP55 (Custom IP67) IP55 (Custom IP67)
Weight (Without Wires) 67g 73g
Size 75mm x 35.5mm x 20.3mm 75mm x 35.5mm x 20.3mm
Communication Protocol Serial port CAN (Custom Serial port)
Throttle Signal Isolated Isolated (Custom non-isolated) Isolated (Custom non-isolated)
PWM Input Signal Level 5V/3.3V 5V/3.3V
Throttle Signal Frequency 50-500Hz 50-500Hz
Operating Pulse Width 1100μs-1940μs 1100μs-1940μs
Throttle Travel Calibration Yes No
Specifications DEO No
Double Throttle Signal No Yes (CAN)
