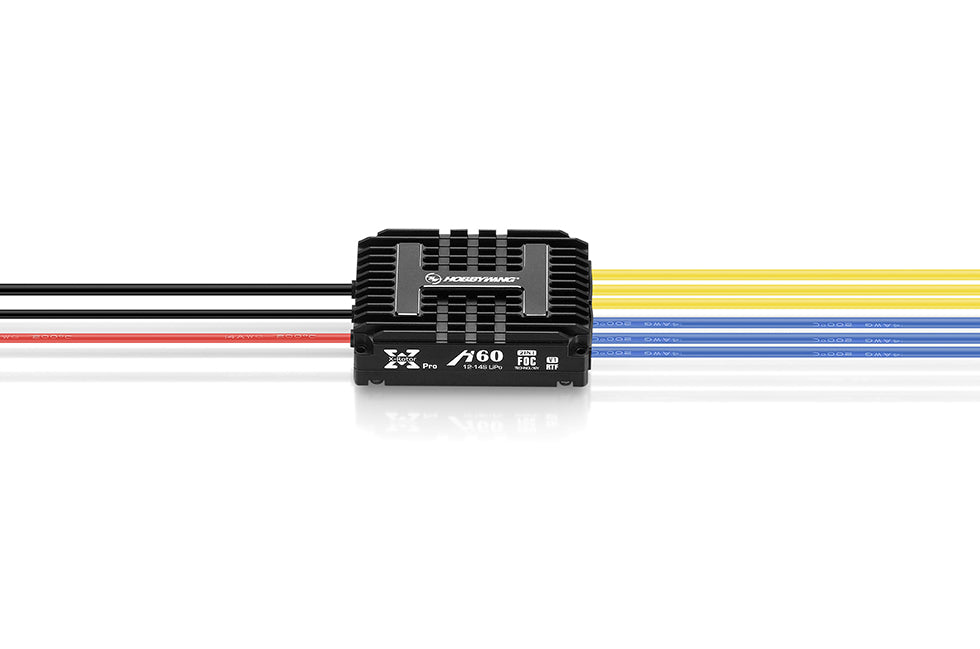

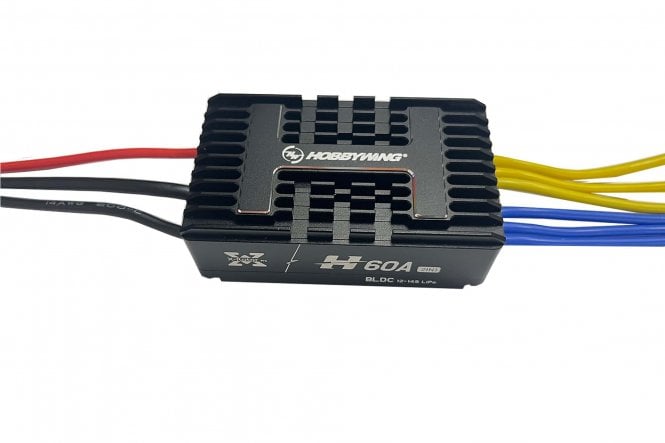

XRotor H60A(2in1) 14S FOC & BLDC V1

Rs. 35,999.00
Rs. 35,999.00
Write a Review
Earn 17999 Reward Points. Learn More...

Here is only a suggestion: Reward Points function (demo function). To use real Reward Points, you need a 3rd party Shopify App.

Your items may arrive sooner than the estimated delivery date. Ralph Lauren reserves the right to send packages via other shipping methods based on the shipping destination as long as orders will still arrive within the arrival times outlined on RalphLauren.com.

When you choose the Economy delivery option, packages are delivered Monday through Saturday 8 AM to 4:30 PM. Orders sent by Fast, 2-Business-Day or Next-Day shipping methods are delivered Monday through Friday from 8 AM to 4:30 PM.

We recommend choosing Fast or Next-Day delivery if you are shipping your package to a business address. You will be asked to provide a telephone number on the shipping page of checkout, which is important in the event the courier needs to arrange a delivery time with you.

You will also be asked to provide an email address, to which we will send confirmation that your order was placed.

Add to wishlist Added to wishlist
Order in the next
to get it by
Ask us any Question
Details
Description:

XRotor H60A(2in1) 14S FOC & BLDC V1, a versatile ESC designed for vertical take-off and landing drones, coaxial motor applications, and multi-rotor setups.

  1. Vertical 2-in-1 ESC:

    • The XRotor H60A(2in1) integrates two independent outputs to drive two motors simultaneously.
    • Optimizes space for wiring and simplifies installation.
    • Reduced overall weight, making it ideal for vertical take-off and landing (VTOL) drones and coaxial motor configurations.
    • Note: This ESC is also suitable for multi-rotor applications!

  2. IP55 Protection:

    • Achieves IP55 protection class by nano-coating the PCB circuit board and using an aluminum alloy case.
    • Suitable for various UAVs in different environmental conditions.
    • Provides robust protection against dust, water, and other elements.

  3. CAN Bus Communication and Real-Time Data Output:

    • Capacitor temperature and other operating data are sent to the flight control system for real-time monitoring of the UAV power system.
    • Data is stored in the black box for accident analysis.
    • CAN bus communication offers strong real-time performance, long transmission distance, and resistance to electromagnetic interference.

  4. Two Types of Drivers:

    • BLDC (Brushless DC):
      • High efficiency compatible with square wave drive technology.
      • Plug-and-play design.
    • FOC (Field-Oriented Control):
      • Precise and efficient vector control.
      • Low temperature operation.
      • Fast response and low noise.
      • Linear throttle for precise control.
      • Kinetic energy recovery.

  5. Motor Specifications:

    • Stator Size: Φ62*10 mm
    • KV Rating: 130 KV

  6. ESC Specifications:

    • Input Voltage: 6-14S (18-63V)
    • Peak Current (3s): 15A (Good heat dissipation)
    • Weight: 117.4g (Without wires)
    • Size: 77.54726.8mm
    • Communication Protocol: CAN (Custom Serial port)

Specification:

ESC Model XRotor Pro-H60A(2in1)
Input Voltage 6-14S (18-63V)
Continuous Current 15A (Good heat dissipation)
Peak Current (3s) 60A
Operating Temperature -20°C to 50°C
Magnetic Encoder No
Waterproof Rating IP55 (Custom IP67)
Weight (without wires) 117.4 g
Size 77.54726.8 mm
Communication Protocol CAN (Custom Serial port)
Throttle Signal Isolated Isolated
PWM Input Signal Level 5V/3.3V
Throttle Signal Frequency 50-500 Hz
Operating Pulse Width 1100-1940 μs
Throttle Travel Calibration No
Specifications (DEO) Supported (Dynamic Efficiency Optimization)
Double Throttle Signal Yes
