MARTIAN-II REPTILE 220mm Quadcopter Frame Kit

Regular price
Rs. 1,699.00
Sale price
Rs. 1,699.00
Regular price
Earn 849 Reward Points. Learn More...
Order in the next
to get it by
Details

Properties:

  1. Model: Martian-II
  2. Material: Carbon Fiber
  3. Wheelbase: 220 mm
  4. Arm Thickness: 4 mm
  5. Weight: 140 gm

Full-Description:

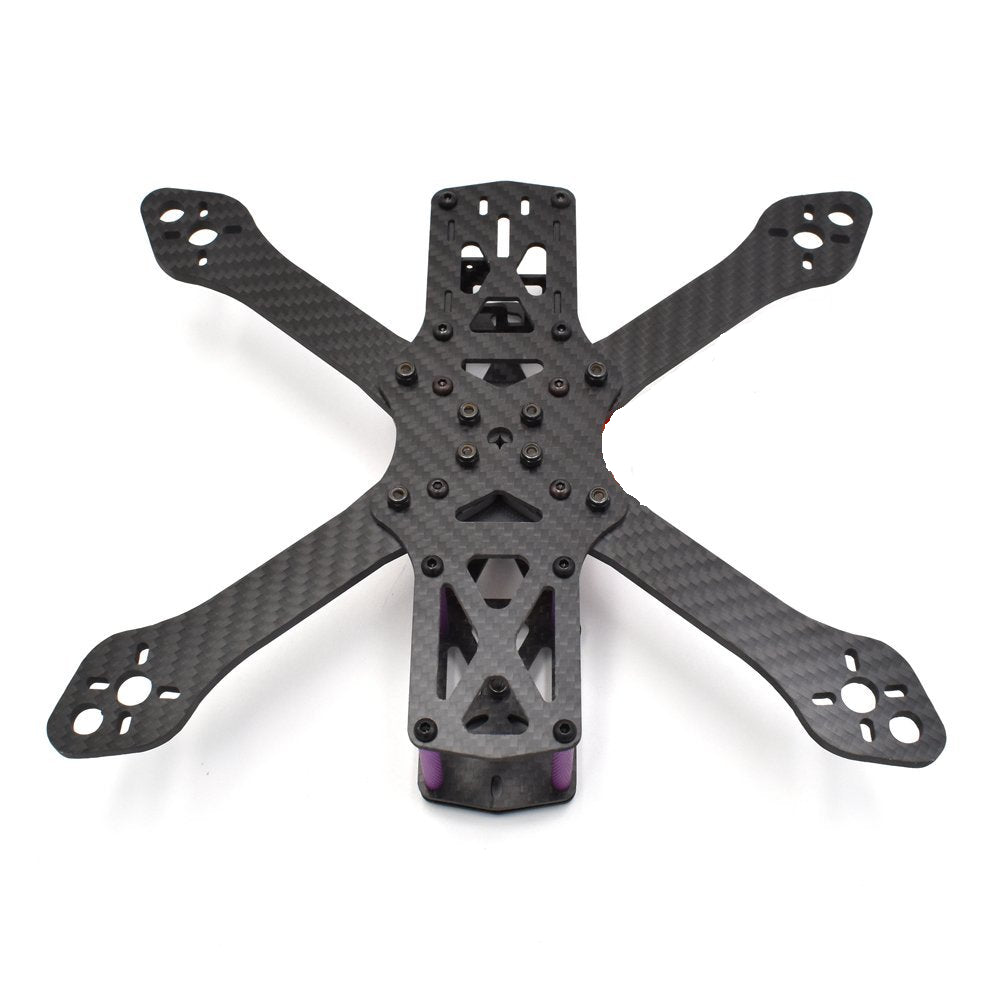

This is a MARTIAN-II REPTILE 220mm Quadcopter Frame Kit.

This Quadcopter Frame is the advanced version of the Martian-II reptile Quadcopter Frame. It keeps everything that has made the Martian-I Quadcopter frame successful. The MARTIAN-II REPTILE Quadcopter Frame is a mini-size quadcopter frame.

The MARTIAN-2 REPTILE 220mm Quadcopter Frame is manufactured with excellent quality 3K Carbon Fiber. Also, the arms of this frame are shorter than the previous one. In comparison between the Martian-I, Martian-II, and Martian-III it is found that the carbon fiber of the Martian-II frame is of the highest quality hence they are costlier in the class of Martian Quadcopter Frames.

This MARTIAN-II REPTILE 220mm Quadcopter Frame is made from Carbon Fiber which makes it tough and durable. They have carbon fiber arms of thickness 4mm which ensure no more arm breakage at the motor mounts on a hard landing. The arms equip dampers at the end, which protects motors during the crash. The frame enables quick swapping of arms in race pit settings.

The carbon fiber is mostly accepted material for frame designing because of its high stiffness to weight ratio. The Carbon Fiber Frames are very rigid and improve stability and flight performance.

It is also designed to fit standard flight controllers/PDB, FPV cameras and also FPV transmitters and antenna. The assembly is done with Black Oxide steel screws which are included in the pack.

The frame is lightweight and possesses thick arms, so as to give them good mechanical strength. The mini-size design of this quadcopter frame makes it aerodynamically efficient which will require lower throttle to hover.

The frame has a wheelbase of 220mm and weighs around 140gm. This frame supports 37mm board cams as well as 26mm cams in cases with mounting brackets.

The MARTIAN-II REPTILE Quadcopter Frame equips anodized alloy spacers. The arms of this carbon fiber frame feature multiple motor mounting holes so as to fit a variety of motors.

Martian-II Quadcopter frame is available in two different wheelbase sizes as 220mm and 250mm.

We are offering a full line of multi-rotor accessories,
Multirotor Motors
ESC’s (Electronic Speed Controller)
Orange Li-PO Batteries
Flight Controllers
FPV Cameras
Gimbals
Propellers
Remotes

Or explore more variety of multirotor accessories by clicking below
Multirotor’s

You can also check our following Multirotor Kits category if you are a beginner or just not willing to send lot much of time in selecting appropriate parts for your quadcopter and want your quad in the air as soon as possible,
Multirotor Kits


Features :

  1. Lightweight and Durable.
  2. Made by super strong and advanced engineering material.
  3. The frame has excellent strength.
  4. The arm equips dampers for a safe landing.
  5. The arm has multiple motor mounting holes.

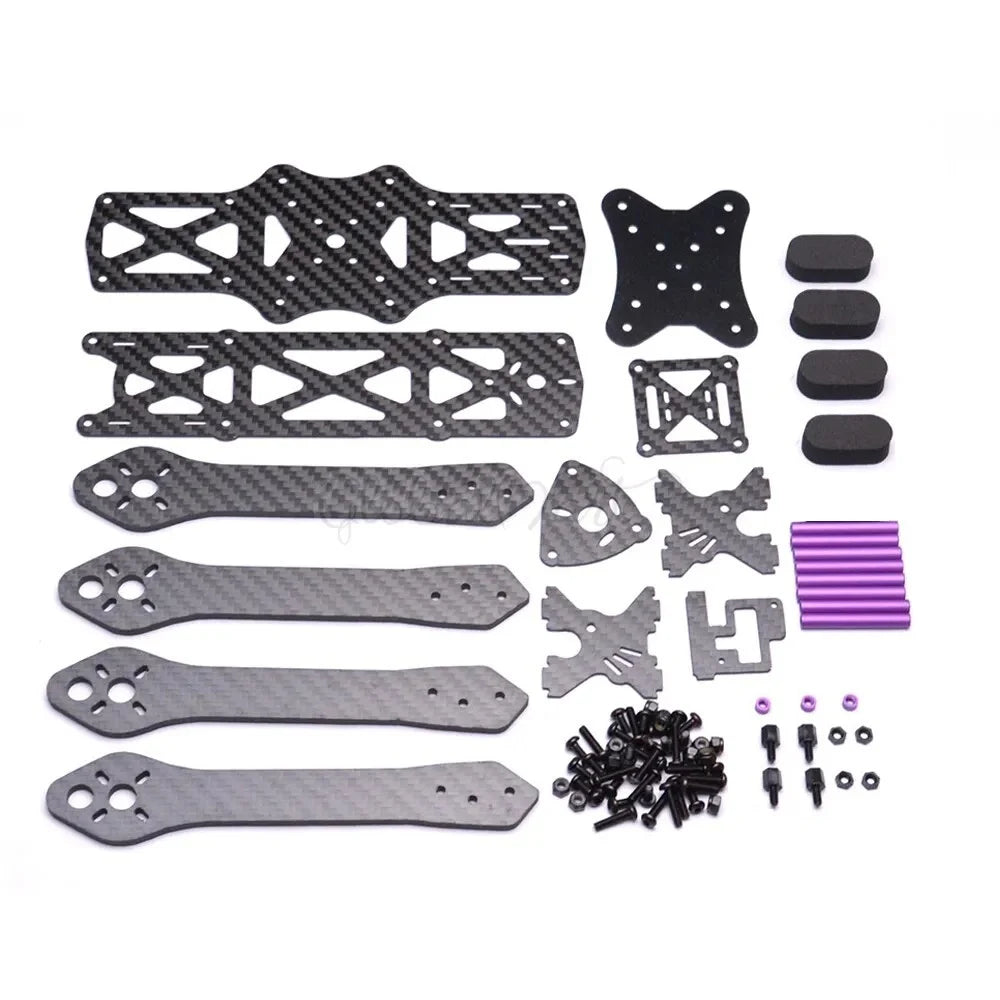

Package Includes :

  • 1 x MARTIAN-II REPTILE 220mm Quadcopter Frame
  • 4 x Vibration Dampers
  • 1 x Assembly Schematic Sheet
  • Set of Screws

Specification:

Model

Martian-II

Material:

Carbon Fiber

Wheelbase (mm)

220

Weight (g):

140

Arm Size (L x W) mm

132 x 30

Shipping Weight 0.16 kg
Shipping Dimensions 22 × 8 × 4 cm
