4G LTE Shield With GNSS and BLE5.0

Rs. 4,599.00
Rs. 4,599.00
Write a Review
Earn 2299 Reward Points. Learn More...

Here is only a suggestion: Reward Points function (demo function). To use real Reward Points, you need a 3rd party Shopify App.

Your items may arrive sooner than the estimated delivery date. Ralph Lauren reserves the right to send packages via other shipping methods based on the shipping destination as long as orders will still arrive within the arrival times outlined on RalphLauren.com.

When you choose the Economy delivery option, packages are delivered Monday through Saturday 8 AM to 4:30 PM. Orders sent by Fast, 2-Business-Day or Next-Day shipping methods are delivered Monday through Friday from 8 AM to 4:30 PM.

We recommend choosing Fast or Next-Day delivery if you are shipping your package to a business address. You will be asked to provide a telephone number on the shipping page of checkout, which is important in the event the courier needs to arrange a delivery time with you.

You will also be asked to provide an email address, to which we will send confirmation that your order was placed.

Add to wishlist Added to wishlist
Order in the next
to get it by
Ask us any Question
Details

Properties:

  1. BLE5.0 support with onboard PCB antenna.
  2. Worldwide 4G/3G/2G communication coverage. Supports VoLTE.
  3. GNSS supporting GPS, BeiDou, GLONASS, LBS positioning.
  4. Supports mail, TCP/ IP/ IPV4/ V6 Multi-PDP, MT PDP, and FTP/ FTPS/ HTTP /HTTPS /MQTT/ DNS.
  5. Firmware update via USB/FOTA.
  6. Can be powered through USB +5V ± 5%
  7. Four-layer PCB for good RF performance, long range, lower power

Full- Description

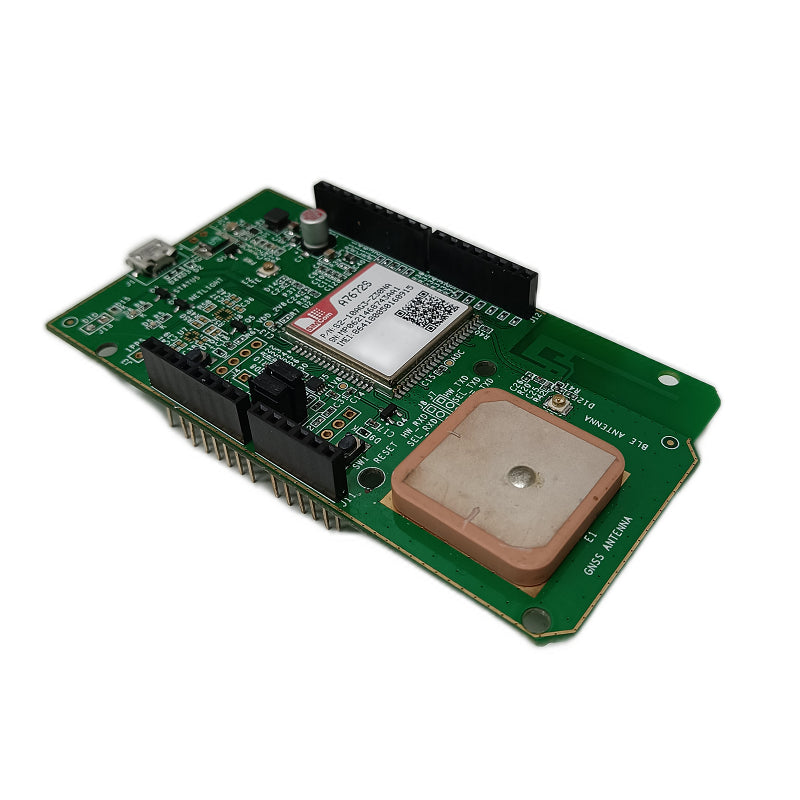

Based on A7672S LTE module, supporting GSM, LTE-FDD, LTE-TDD communications at LTE-CAT1 speed, GNSS (GPS) and BLE5.0. 4G LTE, GNSS, BLE5.0 Arduino Shield with A7672S is a multi-Band 4G/3G/2G communication and GNSS positioning module, LTE-CAT1 speed option. This product is designed to be directly compatible with Arduino UNO to enable 4G LTE data connectivity for applications such as Internet of Things (IoT), Tracking, using USB or UART interfaces.

The USB interface enables the 4G LTE, GNSS, BLE5.0 Arduino Shield with A7672S Board to be connected to Windows/Linux/Android PCs or Industrial PCs as a standalone unit without Arduino if needed. UART interface enables easy interface of the shield PCB with any other Microcontroller platform other than Arduino as well.

Features :

  1. USB data interface to connect with Windows/Linux/Android PCs, or embedded host. UART interface with Arduino.
  2. BLE5.0 support with onboard PCB antenna.
  3. Worldwide 4G/3G/2G communication coverage. Supports VoLTE.
  4. GNSS supporting GPS, BeiDou, GLONASS, LBS positioning.
  5. Supports mail, TCP/ IP/ IPV4/ V6 Multi-PDP, MT PDP, and FTP/ FTPS/ HTTP /HTTPS /MQTT/ DNS.
  6. Firmware update via USB/FOTA.
  7. Can be powered through USB +5V ± 5%
  8. Four-layer PCB for good RF performance, long range, lower power
  9. Printed PCB antenna for BLE and optional connector for external antenna. On board GPS Patch antenna.
  10. Optional sensors for 6-axis sensing (Accelerometer + Gyro meter), barometer, and Secure element IC for secured connectivity not populated
  11. Impedance matching enables choice of external antennas for BLE and LTE

Package Includes:

  • 1 x (4G LTE Shield With GNSS and BLE5.0)

    Specification:

    Connectivity Support

    4G/3G/2G/VoLTE
    Operating Voltage

    USB +5V ± 5%
    Module

    GNSS positioning module, LTE-CAT1 speed option
    Length (mm):

    11
    Width (mm):

    53
    Height (mm):

    19
    Weight (g):

    35
    Shipping Weight 0.035 kg
    Shipping Dimensions 17 × 10 × 3 cm
