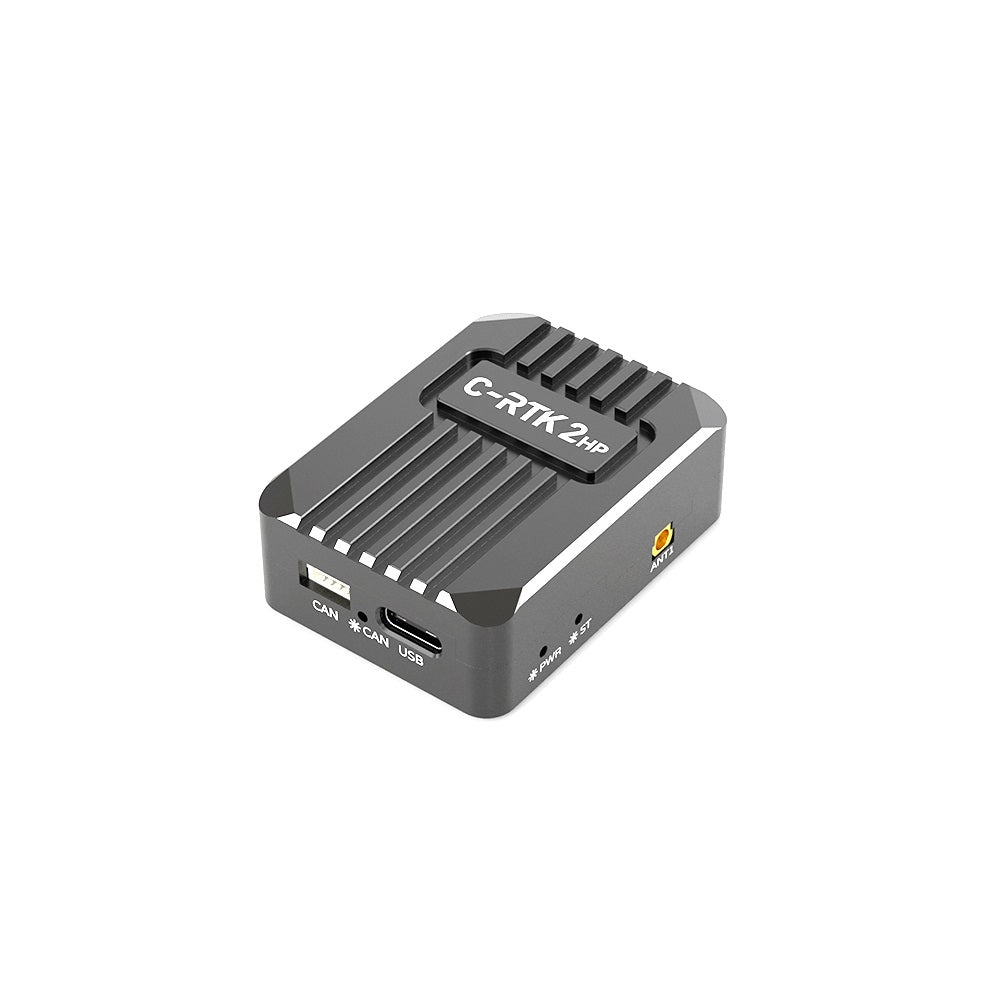

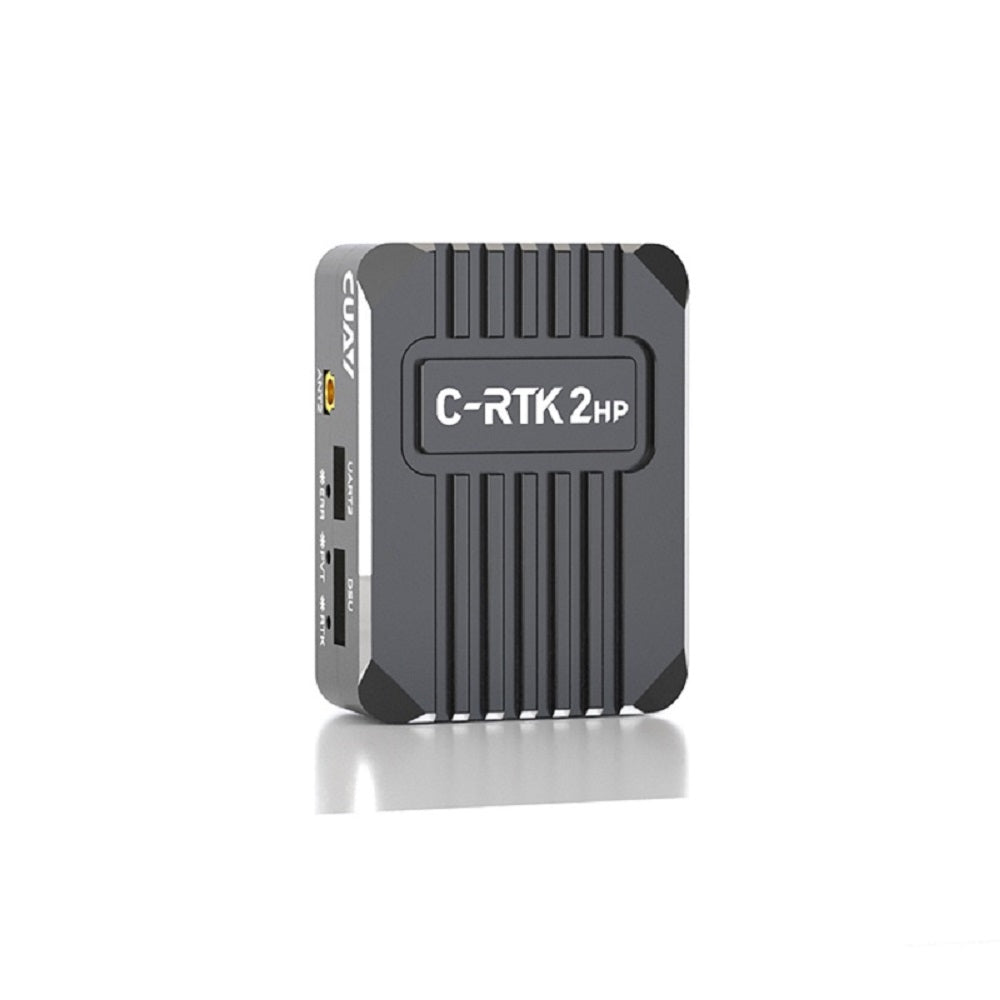

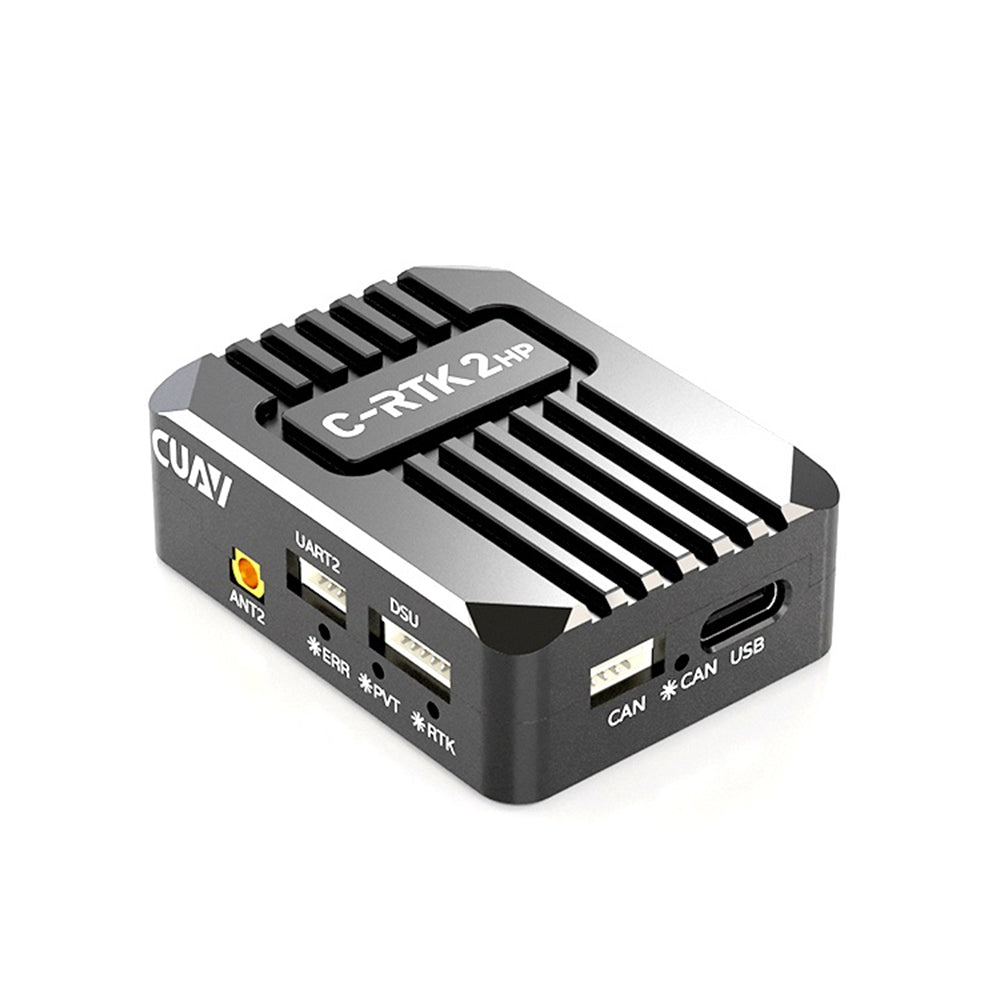

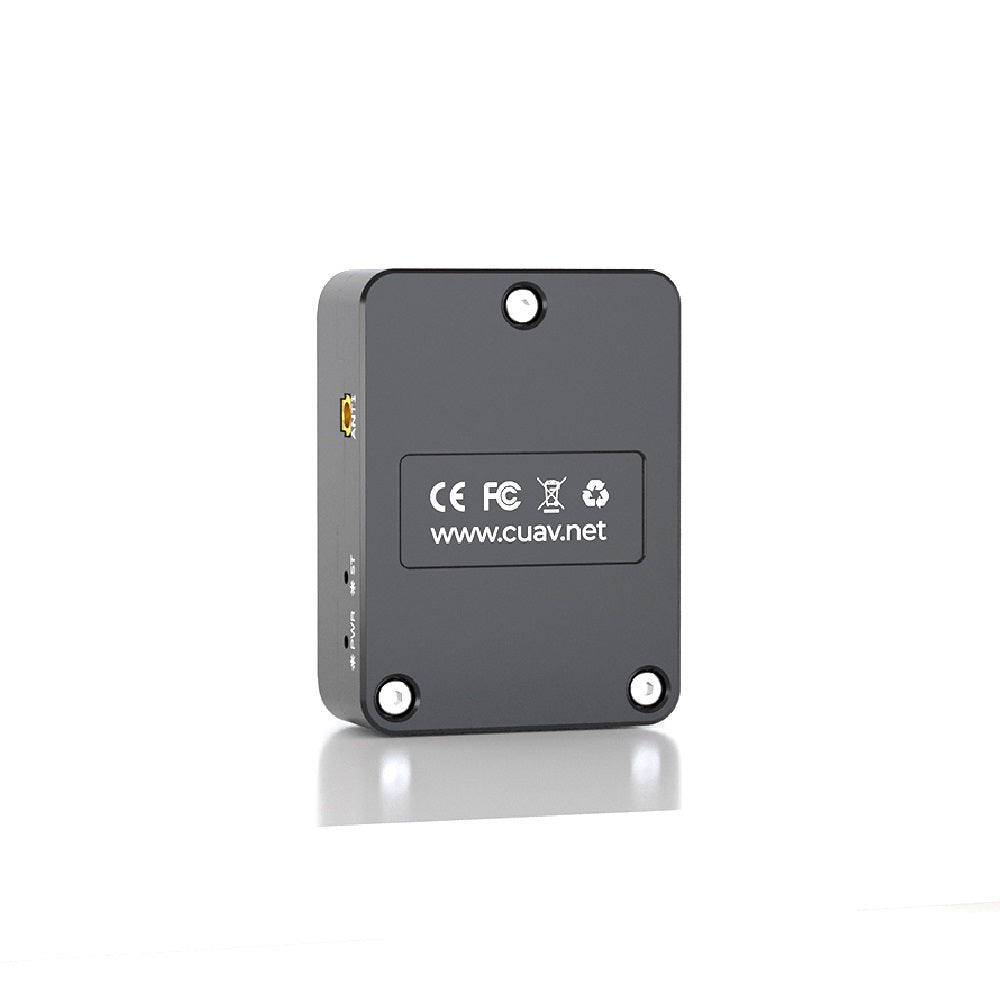

CUAV C-RTK 2 HP GNSS Heading Module

Regular price
Rs. 29,450.00
Sale price
Rs. 29,450.00
Regular price
Earn 14725 Reward Points. Learn More...
Order in the next
to get it by
Details

Properties:

  1. Centimeter-Level Positioning
  2. Single Module Dual Antenna Estimate yaw
  3. All-constellation Multi-frequency Receiver
  4. Supports Drone CAN Protocol
  5. Sensor: Compass: RM3100, Grro/ACC: ICM42688
  6. Antenna 1 (main): BDS:B11, B21, B31; GPS:L1C/A, L2P/L2C, L5; GLONOSS:L1, L2; Galileo: E1, E5a, E5b; QZSS:L1, L2, L5
  7. Antenna 2: BDS:B11, B21, B31 GPS:L1C/A, L2C; GLONOSS:L1, L2 Galileo: E1, E5b QZSS:L1, L2

Full- Description

It’s CUAV C-RTK 2 HP GNSS Heading Module from CUAV! The module utilizes multiple satellite constellations, such as GPS, GLONASS, Beidou, and Galileo, to provide high-precision positioning down to the centimeter level. This level of accuracy is crucial for applications like drone navigation, where precise location data is essential. The dual-antenna configuration helps in determining not only the position but also the heading or orientation of the device. This is particularly valuable for applications like precision agriculture, where the orientation of equipment matters.

Many GNSS modules, including the CUAV New C-RTK 2HP, incorporate an IMU for measuring changes in orientation and velocity. This enhances the performance in dynamic and challenging environments. The module is designed to operate in various environmental conditions, including extreme temperatures and humidity levels.

Note: Refer to Interface Design in the ATTACHMENTS section for more info.

Cuav Cuav C Rtk 2 Hp Gnss Heading Module 4

Cuav Cuav C Rtk 2 Hp Gnss Heading Module 3


Features :

  1. Centimeter-Level Positioning
  2. Single Module Dual Antenna Estimate yaw
  3. All-constellation Multi-frequency Receiver
  4. Supports Drone CAN Protocol
  5. Sensor: Compass: RM3100, Grro/ACC: ICM42688
  6. Antenna 1 (main): BDS:B11, B21, B31; GPS:L1C/A, L2P/L2C, L5; GLONOSS:L1, L2; Galileo: E1, E5a, E5b; QZSS:L1, L2, L5
  7. Antenna 2: BDS:B11, B21, B31 GPS:L1C/A, L2C; GLONOSS:L1, L2 Galileo: E1, E5b QZSS:L1, L2
  8. Position Accuracy: Single point positioning: horizontal 1.5M/elevation: 2.5m DGPS (assisted positioning): horizontal 0.4M+1PPM/ elevation: 0.8m+1 PPM, RTK: Horizontal 0.8cm+1PPM/Elevation: 1.5cm+1PPM
  9. Estimate yaw accuracy: 0.2 degrees/1m (distance between antenna 1 and antenna 2)
  10. Max star: Single: 28+ RTK:50 +
  11. Positioning speed: Cold start <30s/auxiliary start <5s
  12. Data refresh rate: 5Hz (default); Max 20Hz
  13. Data format: RTCM3.X
  14. Data protocol: Dronecan/NMEA

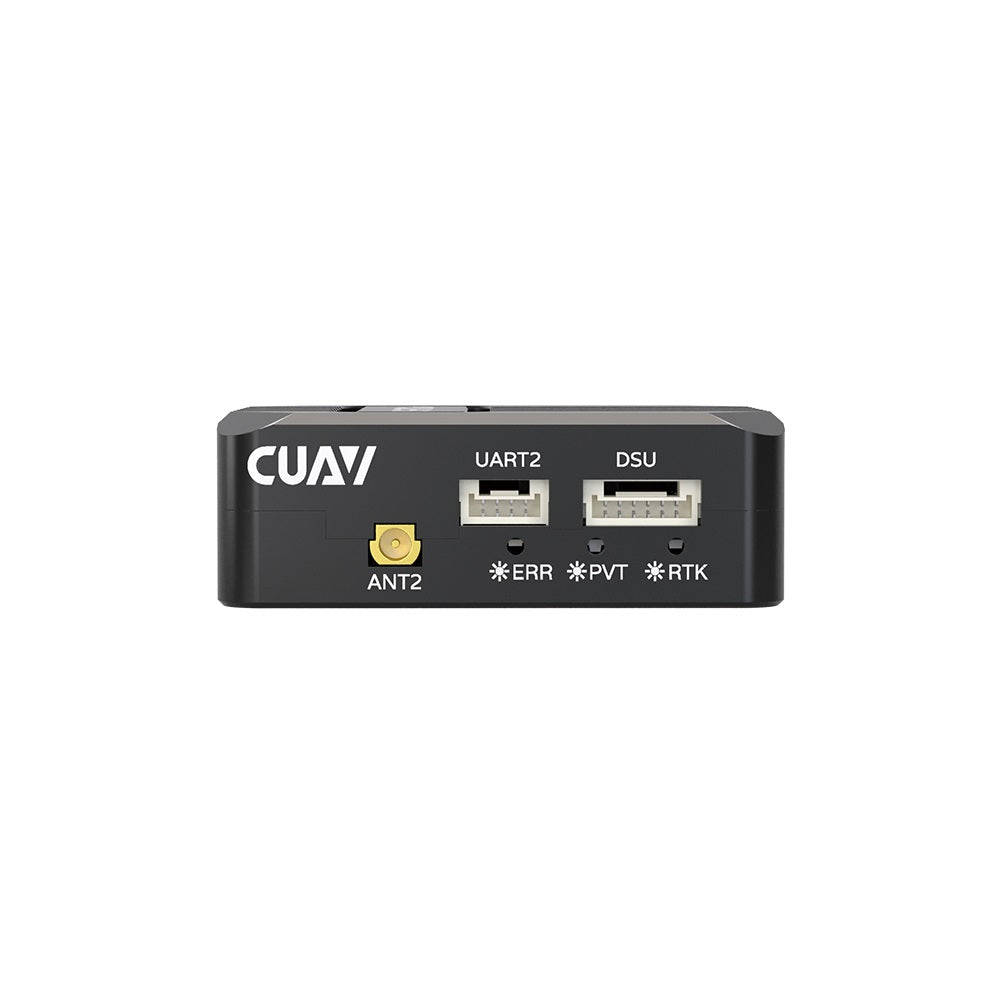

  15. Interface: Antenna interface *2, CAN*1, UART*1, DSU*1, USB*1

Package Includes:

  • 1 x CUAV C-RTK 2 HP GNSS Heading Module & Accessories as shown in image.

Specification:

Processor

STM32F4

Module Type

All-constellation Multi-frequency

Channels

1408

GNSS

BDS/GPS/GLONASS/Galileo/QZSS

Length (mm):

50

Width (mm):

37

Height (mm):

17

Weight (g):

40
