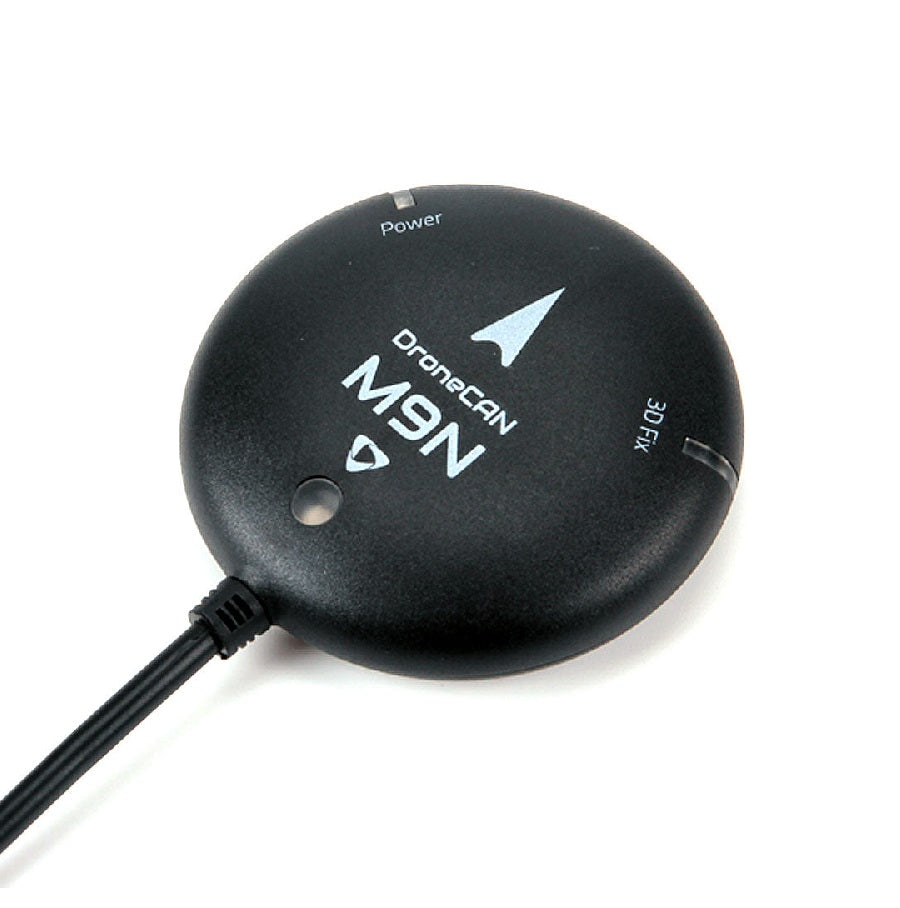

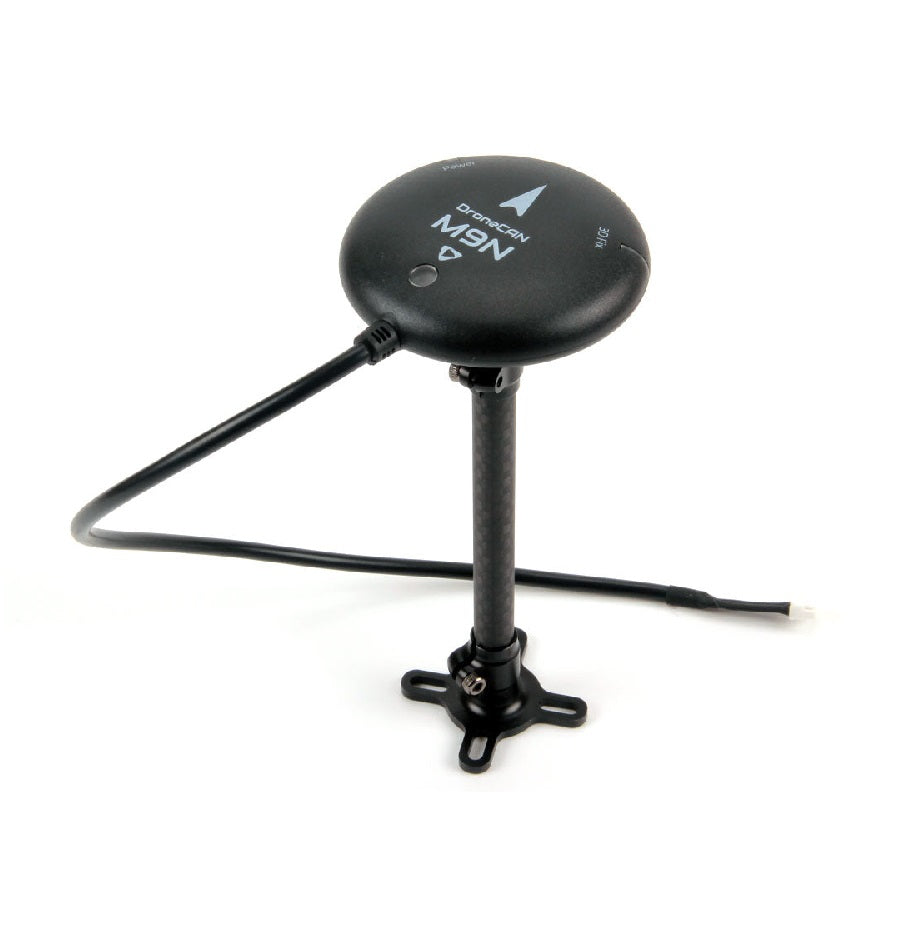

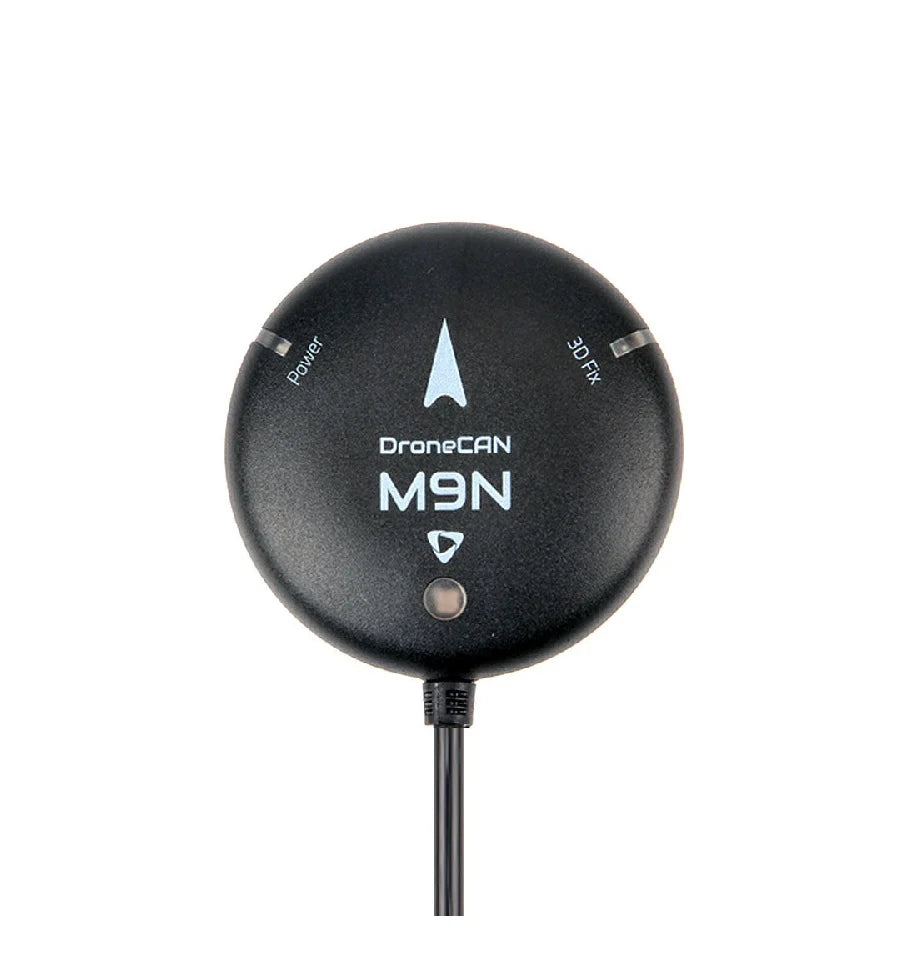

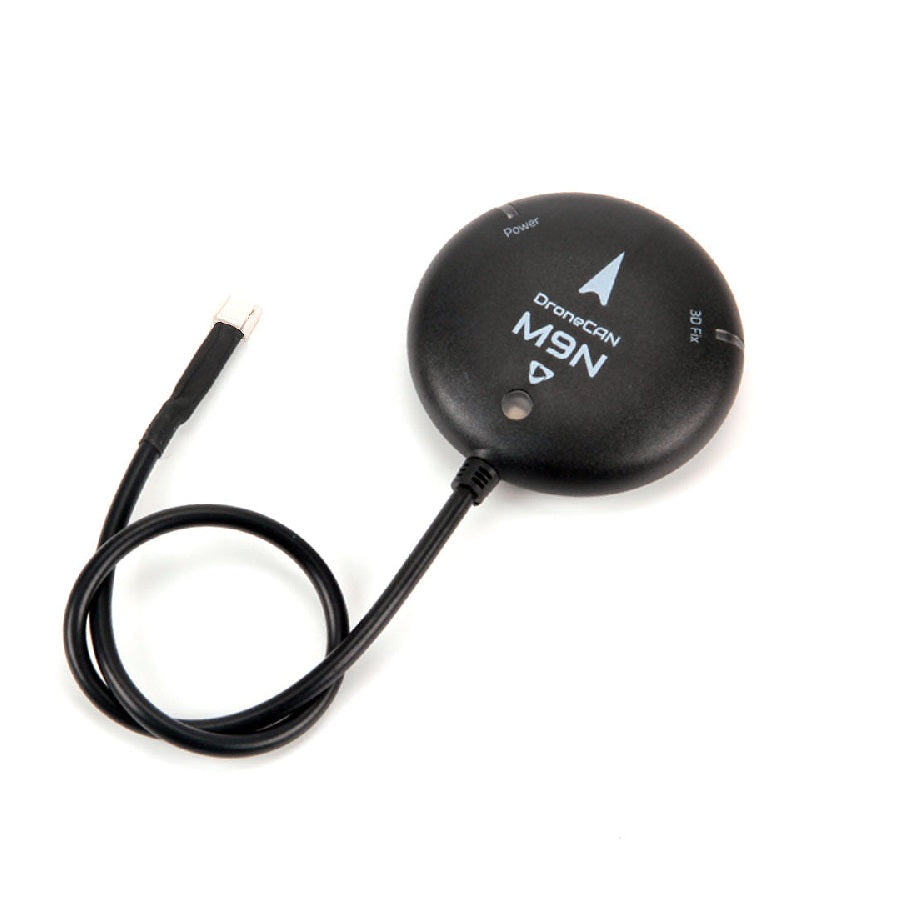

Holybro DroneCAN M9N GPS

Rs. 12,492.00
Rs. 12,492.00
Write a Review
Earn 6246 Reward Points. Learn More...

Here is only a suggestion: Reward Points function (demo function). To use real Reward Points, you need a 3rd party Shopify App.

Your items may arrive sooner than the estimated delivery date. Ralph Lauren reserves the right to send packages via other shipping methods based on the shipping destination as long as orders will still arrive within the arrival times outlined on RalphLauren.com.

When you choose the Economy delivery option, packages are delivered Monday through Saturday 8 AM to 4:30 PM. Orders sent by Fast, 2-Business-Day or Next-Day shipping methods are delivered Monday through Friday from 8 AM to 4:30 PM.

We recommend choosing Fast or Next-Day delivery if you are shipping your package to a business address. You will be asked to provide a telephone number on the shipping page of checkout, which is important in the event the courier needs to arrange a delivery time with you.

You will also be asked to provide an email address, to which we will send confirmation that your order was placed.

Add to wishlist Added to wishlist
Order in the next
to get it by
Ask us any Question
Details

Properties:

  1. Model: Holybro DroneCAN M8N GPS
  2. Advanced GNSS Technology
  3. Powerful Processor
  4. DroneCAN Protocol
  5. Clear Status Indication
  6. Serial Port Efficiency
  7. CAN Bus Compatibility

Full- Description

The Holybro DroneCAN GPS has an UBLOX M8N or M9N module, BMM150 compass, tri-colored LED indicator. It has the STM32G4 Processor and adopted the DroneCAN protocol for communication, making it more reliable and better in dealing with electromagnetic interference compare to serial connection. It does not occupy any serial port of the flight controller, and different CAN devices can be connected to the same CAN bus via a CAN splitter board.

       Features:

      1. Advanced GNSS Technology
      2. Powerful Processor
      3. DroneCAN Protocol
      4. Clear Status Indication
      5. Serial Port Efficiency
      6. CAN Bus Compatibility
      7.  LNA MAX2659ELT+ RF Amplifier
      8. Rechargeable Farah capacitance
      9.  Low noise 3.3V regulator

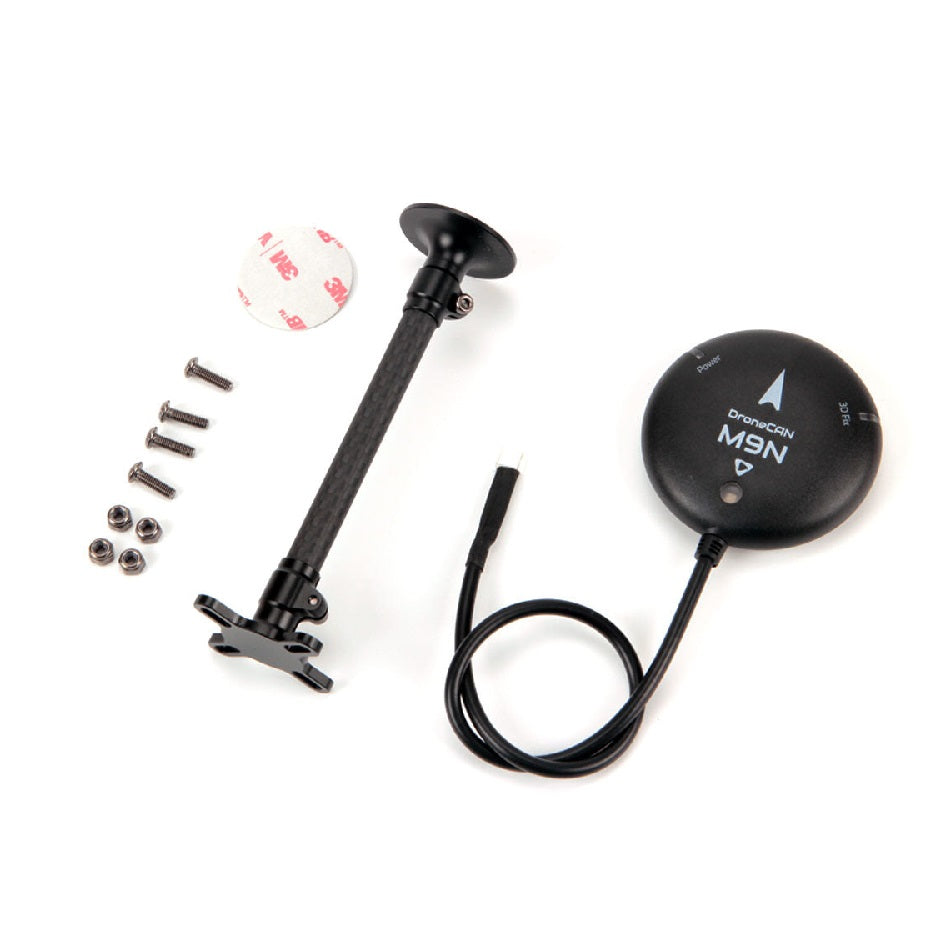

      Package Includes:

      • 1 x Holybro DroneCAN M8N GPS

        Specification:

        GNSS

        Ublox NEO M9N
        Number of concurrent GNSS

        Up to 4 GNSS (GPS, Galileo, GLONASS, BeiDou)
        Processor

        STM32G4 (170MHz, 512K FLASH)
        Compass

        BMM150
        Band Rate

        GPS: L1C/A GLONASS: L10F Beidou: B1I Galileo: E1B/C
        Navigation Update Rate

        5Hz Default(10Hz MAX)
        Accuracy

        2.5
        Refresh Speed (ms)

        0.05
        Power Consumption (mA)

        Less than 200mA @ 5V
        Rated Voltage (V)

        4.7-5.2V
        Operating Temperature (°C):

        -40~80C
        Size (mm):

        Diameter: 54mm Thickness: 14.5mm
        Shipping Weight 0.111 kg
        Shipping Dimensions 14 × 12 × 5 cm
