Holybro DroneCAN RM3100 Professional Grade Compass

Regular price
Rs. 8,200.00
Sale price
Rs. 8,200.00
Regular price
Earn 4100 Reward Points. Learn More...
Order in the next
to get it by
Details

Properties:

  1. DroneCAN RM3100 Compass
  2. Model: RM3100
  3. Operating Temperature: -40 to +85C
  4. Output Connector: 4pin JST-GH1.25

Full- Description

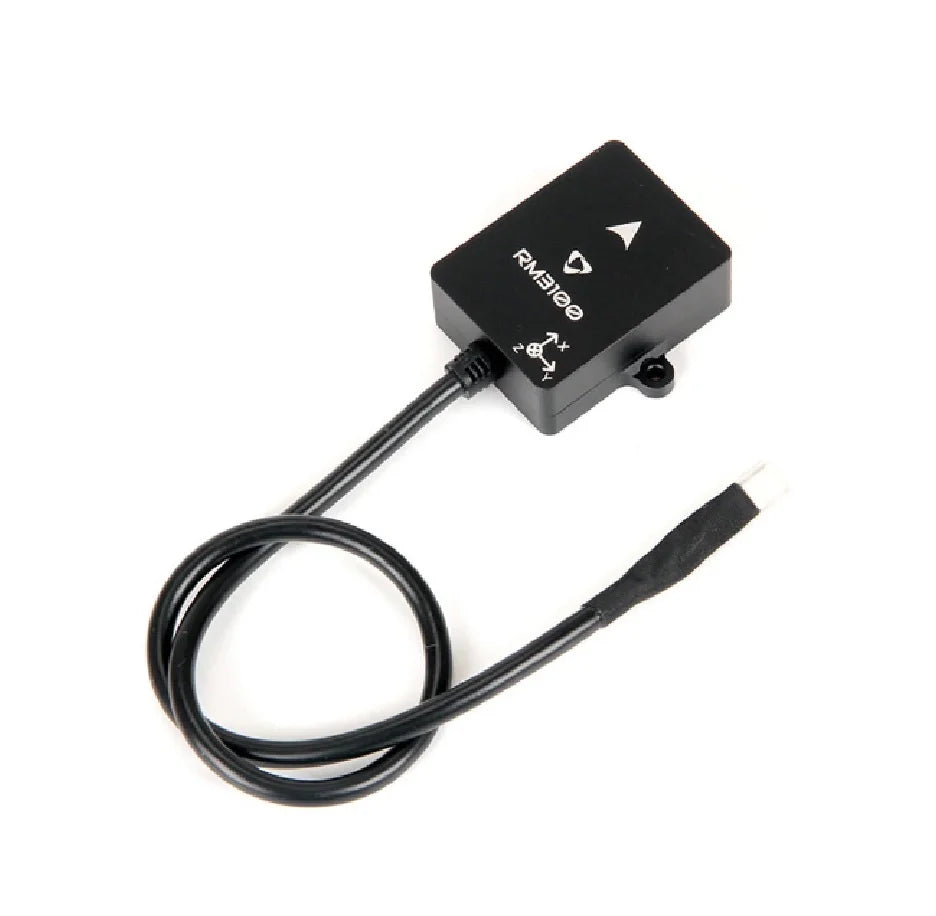

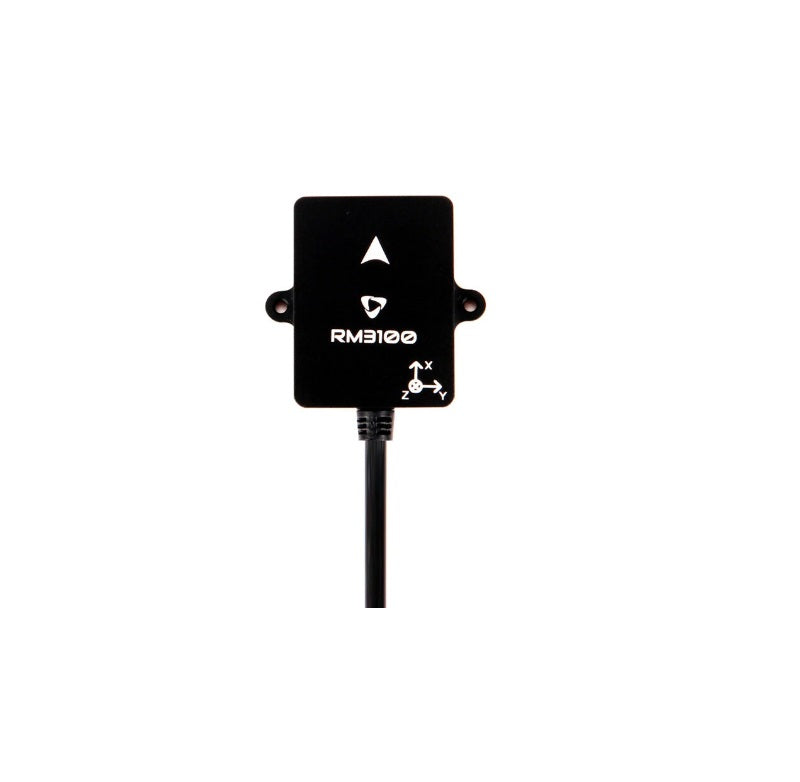

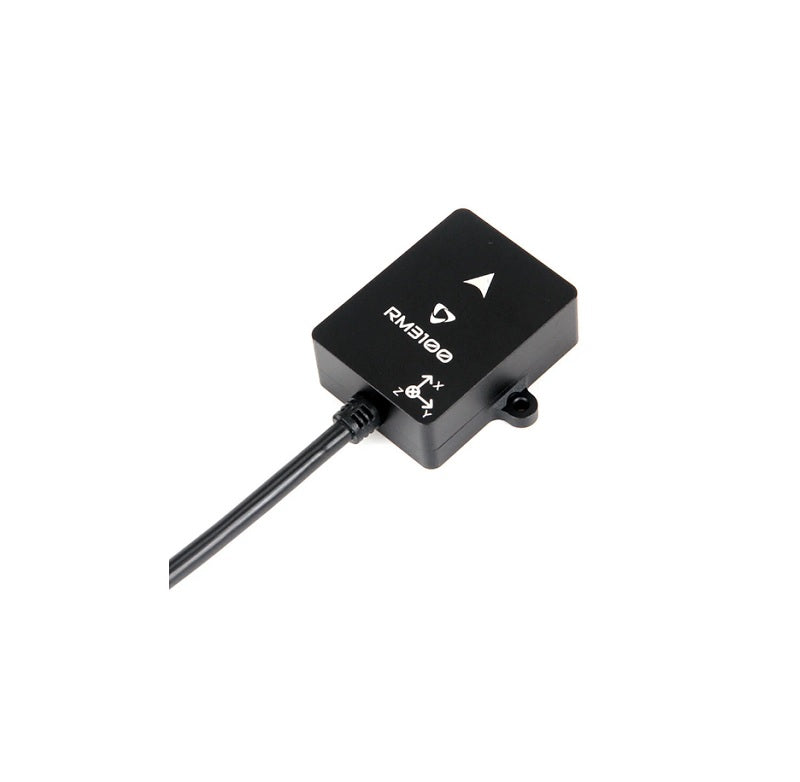

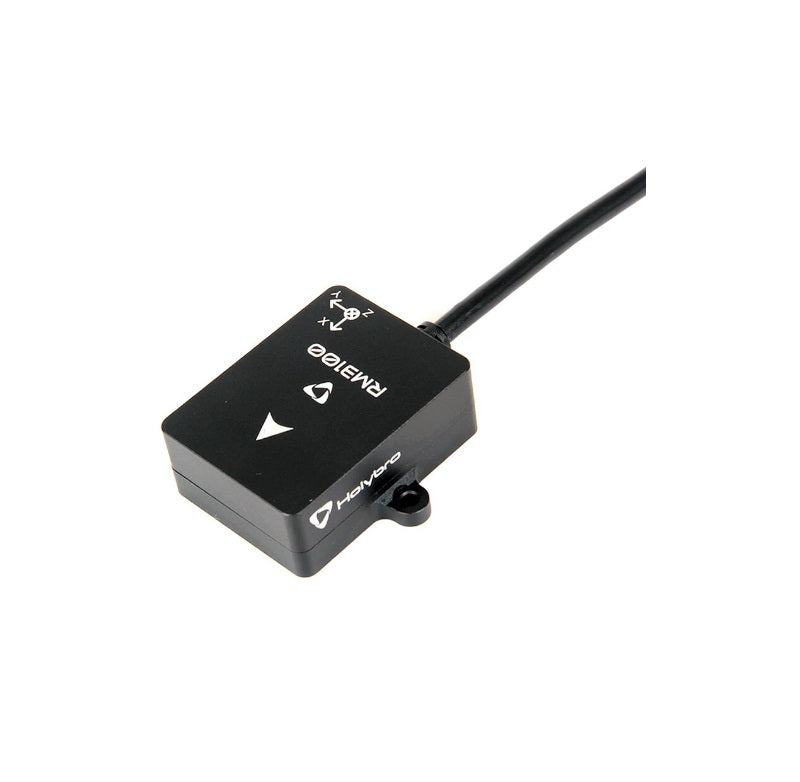

This professional-grade RM3100 compass/magnetometer has impeccable signal-to-noise ratios, no drift, and precise magnetic field measurements. It can provide professional-grade heading accuracy and orientation calculations for your vehicle. With this compass, your vehicle can navigate through waypoints with little magnetic disturbance due to motor coils and metal parts. You can achieve the best result by placing this module far away from motor coils and other metal parts, getting rid of one of the largest points of failure on your unmanned vehicle.

Holybro 3 7

This 3-axis magnetometer, based on PNI’s proprietary magneto-inductive technology, delivers high-performance resolution and repeatability. It has a very high level of resolution (10 nT) and ultra-low magnetic hysteresis, making it perfect for applications that require high heading accuracy.

With its DroneCAN output protocol, it can deliver robust and reliable connectivity over relatively large distances, and wiring is less complicated as you can have a single bus for connecting all your DroneCAN peripherals. It also does not occupy any serial ports on the flight controller.

Holybro Untitled 3


       Features:

      1. High-end RM3100 compass with superior signal-to-noise ratios ensuring impeccable heading accuracy.
      2. Capable of precise magnetic field measurements and delivers excellent repeatability.
      3. Withstands magnetic disturbances from motor coils and metal parts, ensuring reliable navigation.
      4. Uses the DroneCAN output protocol providing robust and reliable connectivity over substantial distances.
      5. Simplified wiring setup with a single bus for connecting all your DroneCAN peripherals.

      Package Includes:

      • 1 x Holybro DroneCAN RM 3100 Professional Grade Compass

          Specification:

          Model

          RM3100

          Operating Temperature (°C):

          -40 to 85

          Output Connector

          4pin JST-GH1.25

          Length (mm):

          35

          Cable Length (cm)

          42

          Width (mm):

          25

          Height (mm):

          10

          Weight (g):

          29

          Shipping Weight 0.029 kg
          Shipping Dimensions 10 × 8 × 1.5 cm
