Holybro M9N GPS with Standard Connector

Regular price
Rs. 9,400.00
Sale price
Rs. 9,400.00
Regular price
Earn 4700 Reward Points. Learn More...
Order in the next
to get it by
Details

Properties:

  1. Ublox M9N GNSS Reciever
  2. Accurate Positioning
  3. Fast Navigation Update Rate
  4. IST8310 Compass
  5. High-gain 25*25*4mm antenna
  6. Internal Buzzer, Safety switch
  7. Ultra Bright UI RGB LED

Full- Description

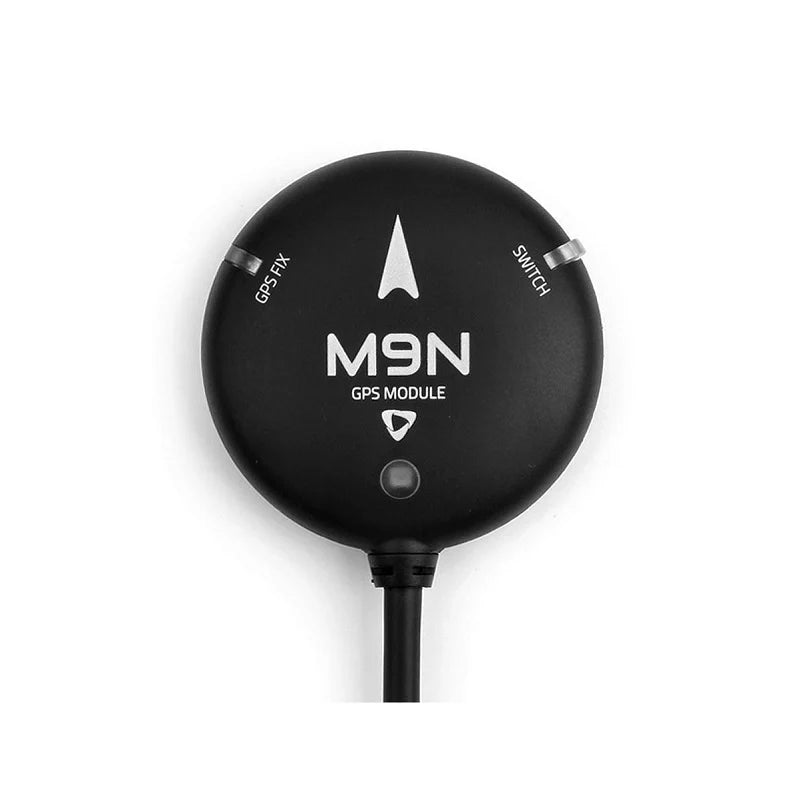

Holybro M9N GPS has a UBLOX M9N module, an IST8310 compass, a tri-colored LED indicator, and a safety switch. There are three different connector options for different purposes. This module ships with a baud rate of 115200 5Hz

The M9N GPS uses multi-constellation GNSS powered by the u-blox M9N, a concurrent GNSS receiver that can receive and track multiple GNSS systems. Owing to the multi-band RF front-end architecture, all four major GNSS constellations—GPS, Galileo, GLONASS, and BeiDou—can be received concurrently.

It also comes with the IST8310 compass, tricolored LED indicator, buzzer, and a safety switch.  This module ships with a baud rate of 115200 (38400 previously).

The high-gain 25 x 25 mm2 patch antenna provides excellent performance, and the omnidirectional antenna radiation pattern increases flexibility for device installation. It features active circuitry for the ceramic patch antenna and a rechargeable backup battery for warm starts.

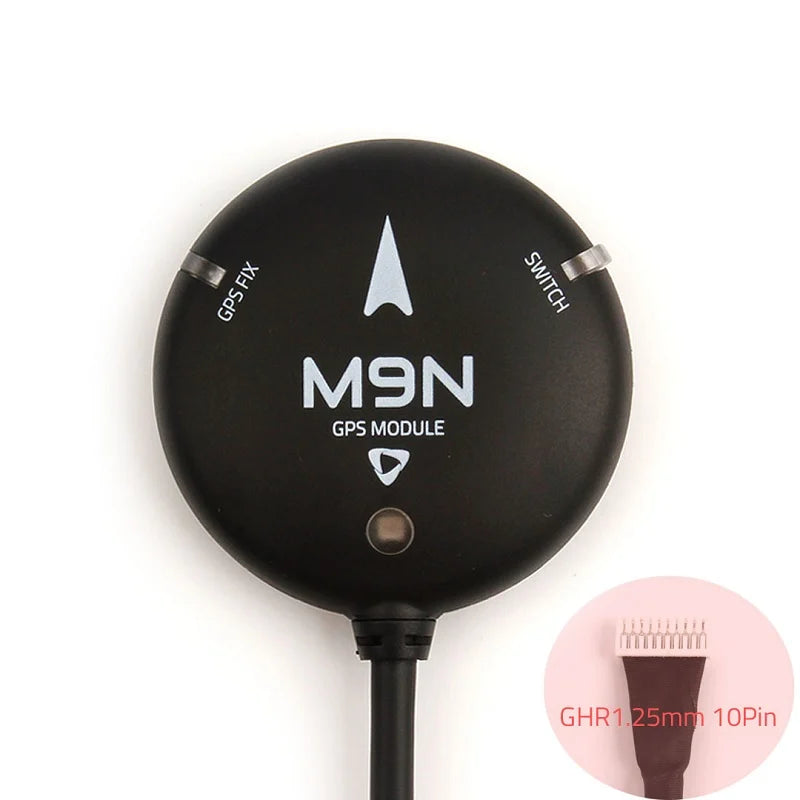

Note: This module comes with three connector variants. This is the standard connector variant

Holybro Pin Map


    Feature:

    1. Ublox Neo-M9N module
    2. Max concurrent reception of 4 GNSS
    3. Industry-leading -167 dBm navigation sensitivity
    4. Cold starts: 26s
    5. LNA MAX2659ELT+
    6. 25 x 25 x 4 mm ceramic patch antenna
    7. Rechargeable Farah capacitance
    8. Low-noise 3.3V regulator
    9. Current consumption: less than 150mA @ at 5 volts
    10. Fix indicator LEDs
    11. Protective case

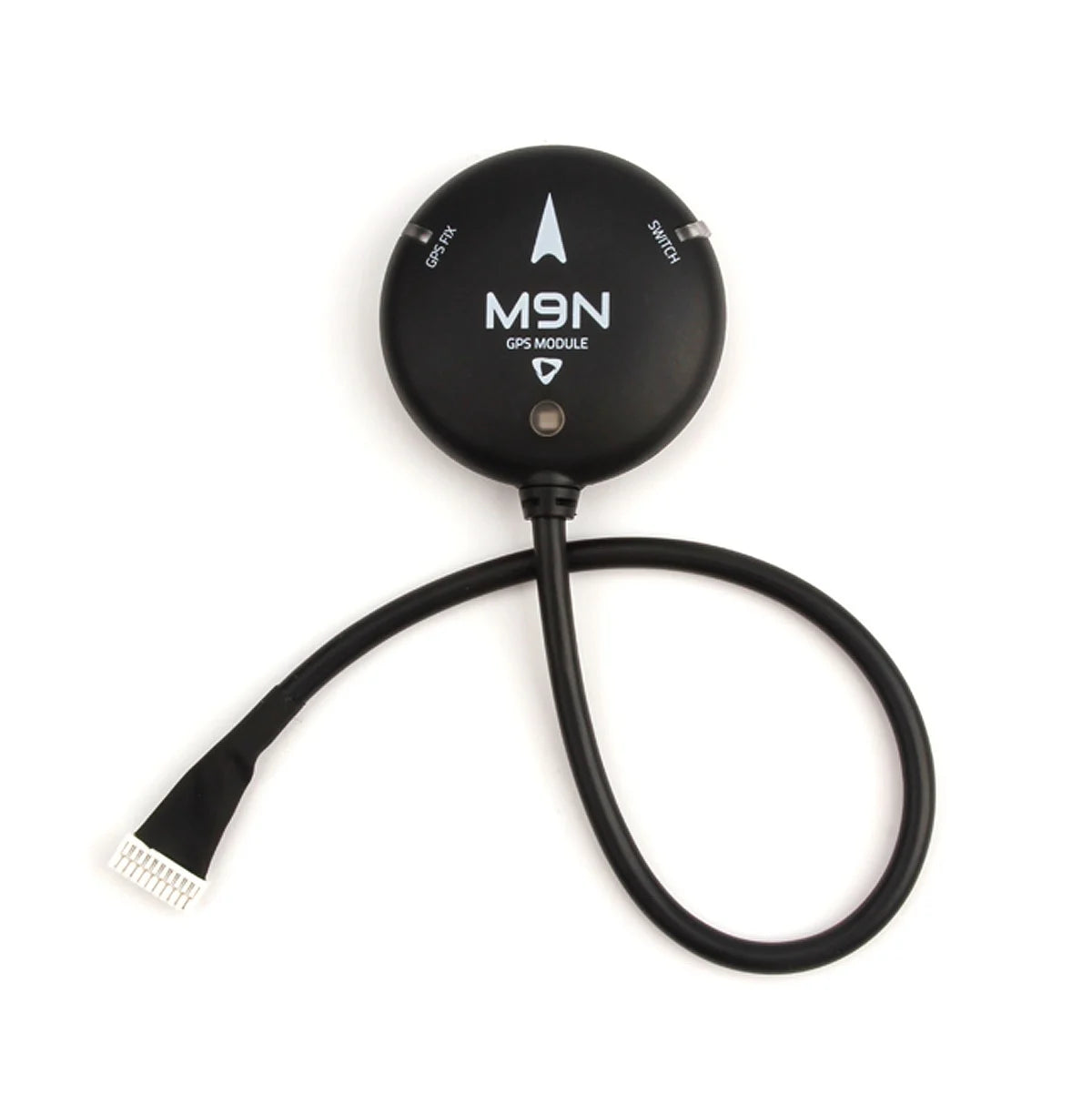

    12. 26cm cable included
    13. Diameter: 50mm total size, 32 grams with case.

    Package Includes:

    • 1 x M9N GPS Module (Standard Connector)

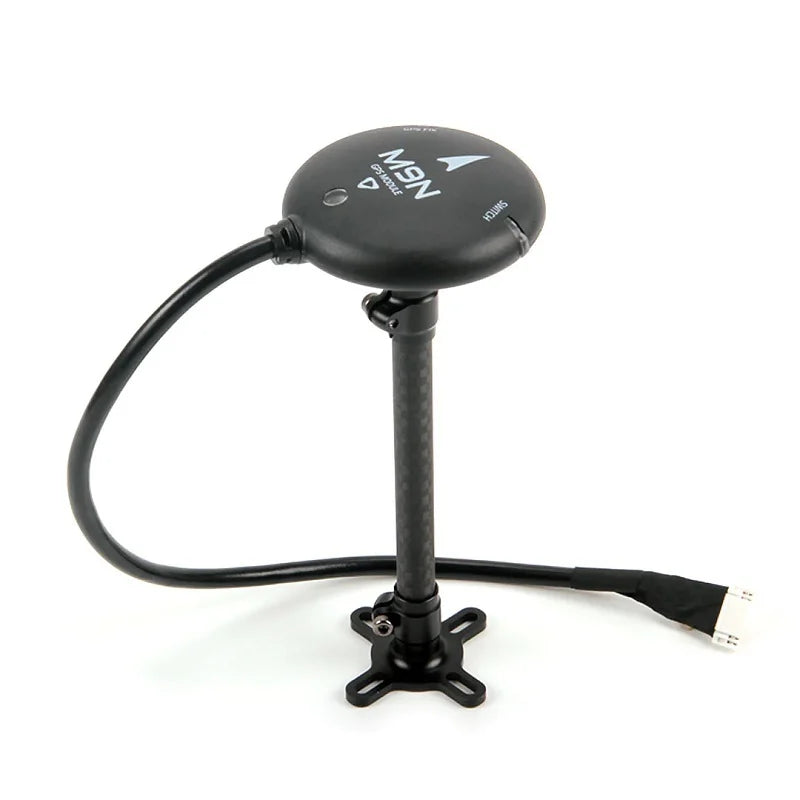

    • 1 x Fixed Carbon Fiber GPS mount

        Specification:

        Product

        M9N GPS Module

        Ublox Neo

        M9N module

        Industry-leading

        167 dBm navigation sensitivity

        Cold starts

        26s

        Low noise

        3.3V regulator

        Current consumption

        less than 150mA @ 5V

        cable included

        26cm

        Diameter

        50mm

        ceramic patch antenna

        25 x 25 x 4 mm
