Mikroe GNSS 10 ClICK

Regular price
Rs. 5,650.00
Sale price
Rs. 5,650.00
Regular price
Earn 2825 Reward Points. Learn More...
Order in the next
to get it by
Details

Properties:

  1. Type GPS/GNSSInterface I2C,SPI,UART,USB
  2. Compatibility mikroBUS
  3. Click board size L (57.15 x 25.4 mm)
  4. Input Voltage 3.3V

Full- Description

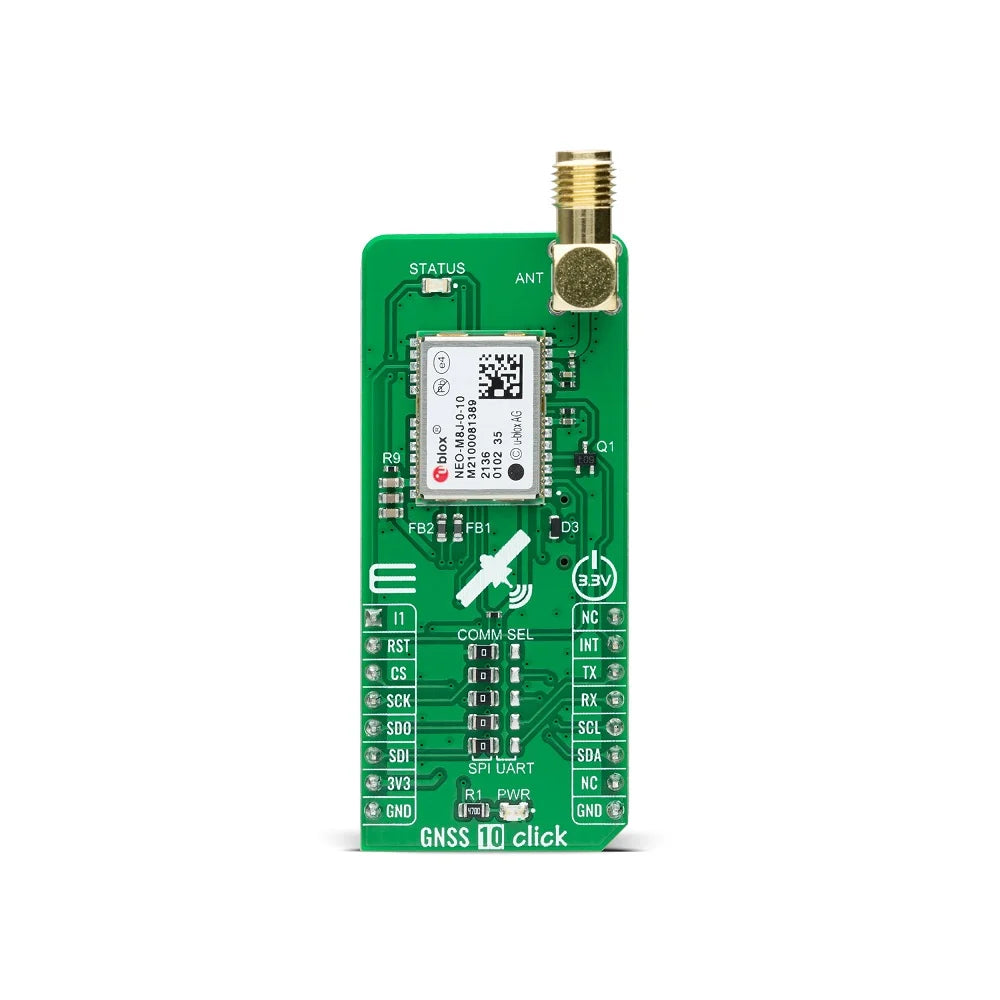

GNSS 10 Click is a compact add-on board that provides fast positioning capability. This board features the NEO-M8J, a standard precision GNSS module built on the high-performing M8 GNSS engine in the industry-proven NEO form factor from u-blox. This module utilizes concurrent reception of up to three GNSS systems (GPS/Galileo together with BeiDou or GLONASS), recognizes multiple constellations simultaneously, and provides outstanding positioning accuracy in scenarios where urban canyon or weak signals are involved. It supports all satellite augmentation systems for even better and faster positioning improvement, comes with a configurable host interface, and advanced jamming and spoofing detection. This Click board™ is ideally suited for industrial and automotive applications.

GNSS 10 Click is supported by a mikroSDK compliant library, which includes functions that simplify software development. This Click board™ comes as a fully tested product, ready to be used on a system equipped with the mikroBUS socket.

Applications: Can be used for industrial and automotive applications


Features :

  1. Type GPS/GNSS
  2. Interface I2C,SPI,UART,USB
  3. Compatibility mikroBUS
  4. Click board size L (57.15 x 25.4 mm)
  5. Input Voltage 3.3V
  6. On-board modules NEO-M8J – high-performance GNSS module from u-blox
  7. Key Features Low power consumption,
  8. Concurrent reception of up to 3 GNSS (GPS,
  9. Galileo, GLONASS, BeiDou),
  10. Industry-leading –167 dBm navigation sensitivity, security and integrity protection,
  11. Supports all satellite augmentation systems,
  12. Advanced jamming and spoofing detection, and more

Package Includes:

  • 1 x Mikroe GNSS 10 ClICK

Specification:

Product Type

GPS/GNSS

Compatibility

mikroBUS

Input Voltage (V)

3.3V

Board Size (mm)

57.15 x 25.4 mm

Shipping Weight 0.06 kg
Shipping Dimensions 7 × 5 × 3 cm
