Mikroe NANO GPS Click

Regular price
Rs. 5,848.00
Sale price
Rs. 5,848.00
Regular price
Earn 2924 Reward Points. Learn More...
Order in the next
to get it by
Details

Properties:

  1. Tracking sensitivity: -163dBm
  2. Interface GPIO,UART
  3. Compatibility mikroBUS
  4. Click board size S (28.6 x 25.4 mm)
  5. Input Voltage 3.3V or 5V

Full- Description

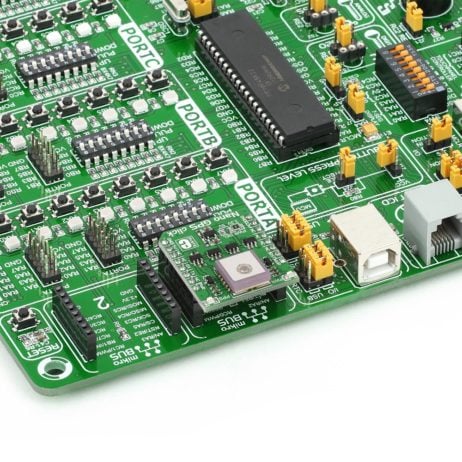

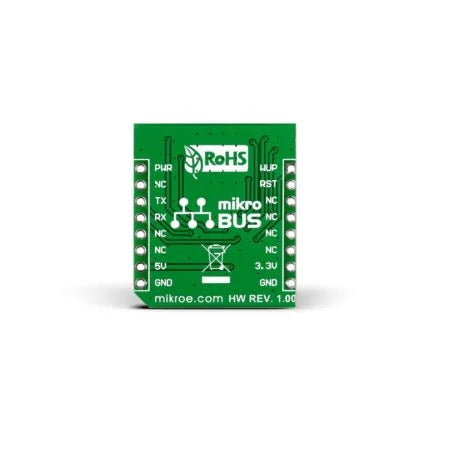

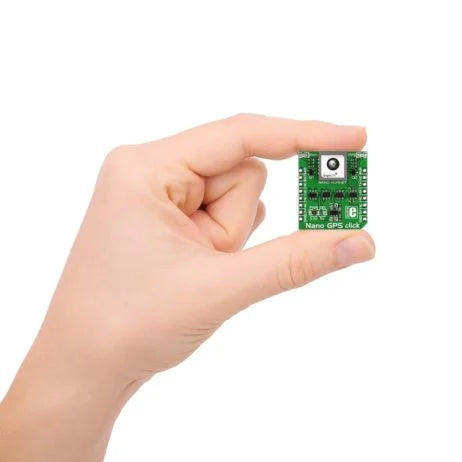

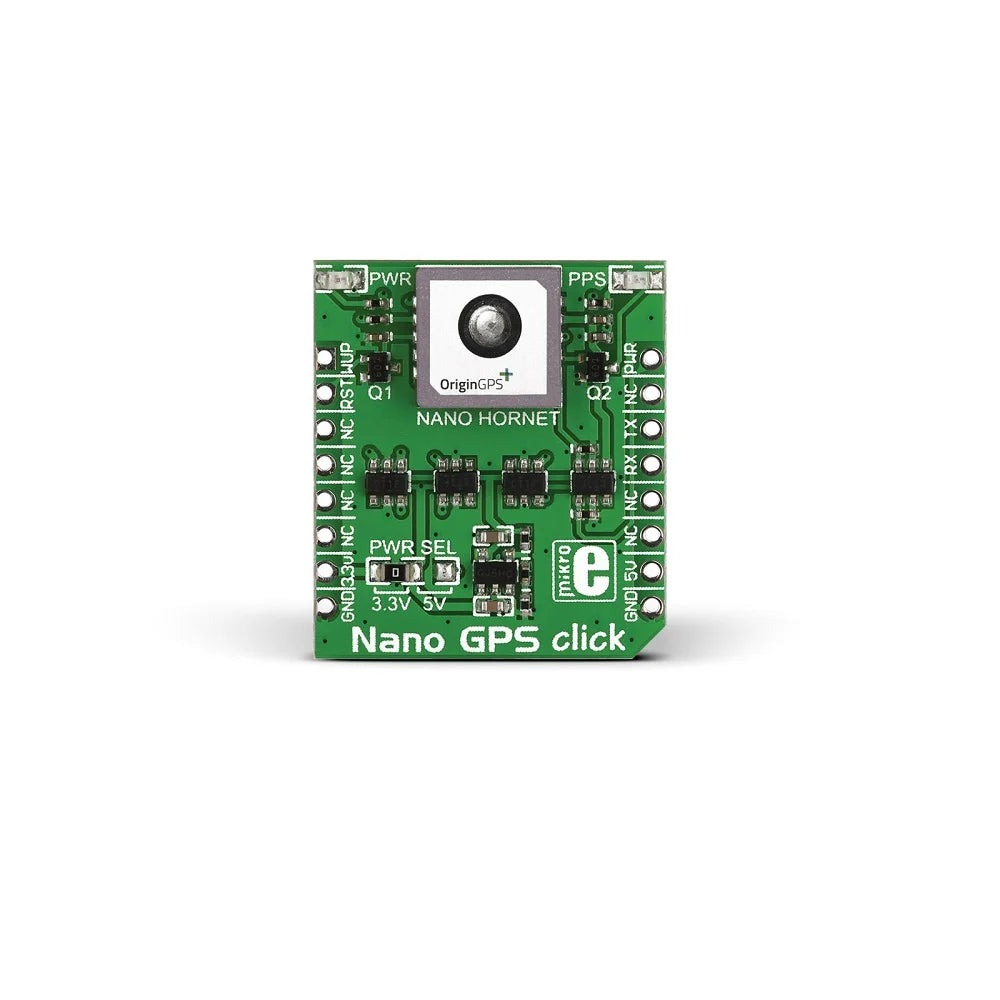

Nano GPS click carries the Nano Hornet module from OriginGPS. It’s the smallest GPS module with an integrated patch antenna (measuring just 10x10x3.8mm). Hence, Nano GPS click is also the smallest of all MikroElektronika GPS click boards. Despite its size, it offers superior sensitivity and outstanding performance, with time to first fix (TTFF) of less than 1 second, an accuracy of approximately 1m, and tracking sensitivity down to -163dBm.

Applications: Nano GPS click is ideal for prototyping for size-constrained devices with GPS functionality, such as wearables



      Features :

      1. Type GPS/GNSS
      2. Time to first fix (TTFF) less than 1 second.
      3. Tracking sensitivity: -163dBm
      4. Interface GPIO,UART
      5. Compatibility mikroBUS
      6. Click board size S (28.6 x 25.4 mm)
      7. Input Voltage 3.3V or 5V

      Package Includes:

      • 1 x Mikroe NANO GPS Click

      Specification:

      Product Type

      GPS/GNSS

      Tracking Sensitivity (dBm)

      -163dBm

      Interface

      GPIO,UART

      Compatibility

      mikroBUS

      Board Size (mm)

      28.6 x 25.4 mm

      Input Voltage (V)

      3.3V or 5V

      Shipping Weight 0.03 kg
      Shipping Dimensions 6 × 5 × 1 cm
