TBS M10 GPS GLONASS

Regular price
Rs. 1,720.00
Sale price
Rs. 1,720.00
Regular price
Earn 860 Reward Points. Learn More...
Order in the next
to get it by
Details

Properties:

  1. ublox UBX-M10050
  2. Flash memory for saving configuration.
  3. Chipset – ublox UBX-M10050
  4. Input Voltage – 5V
  5. Maximum acceleration – ≦ 4G

Full- Description

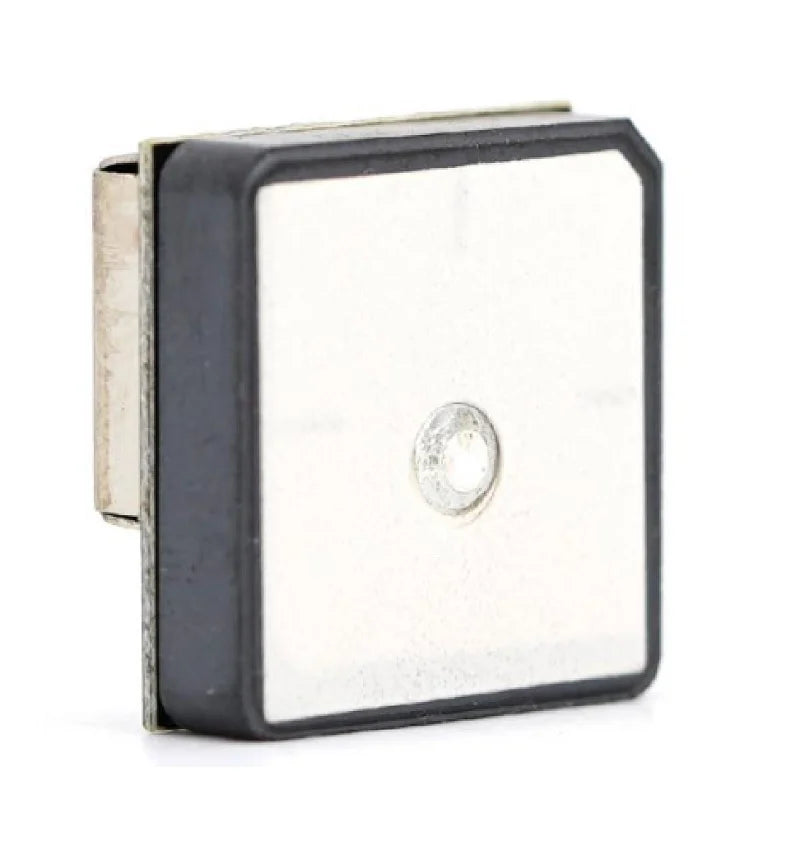

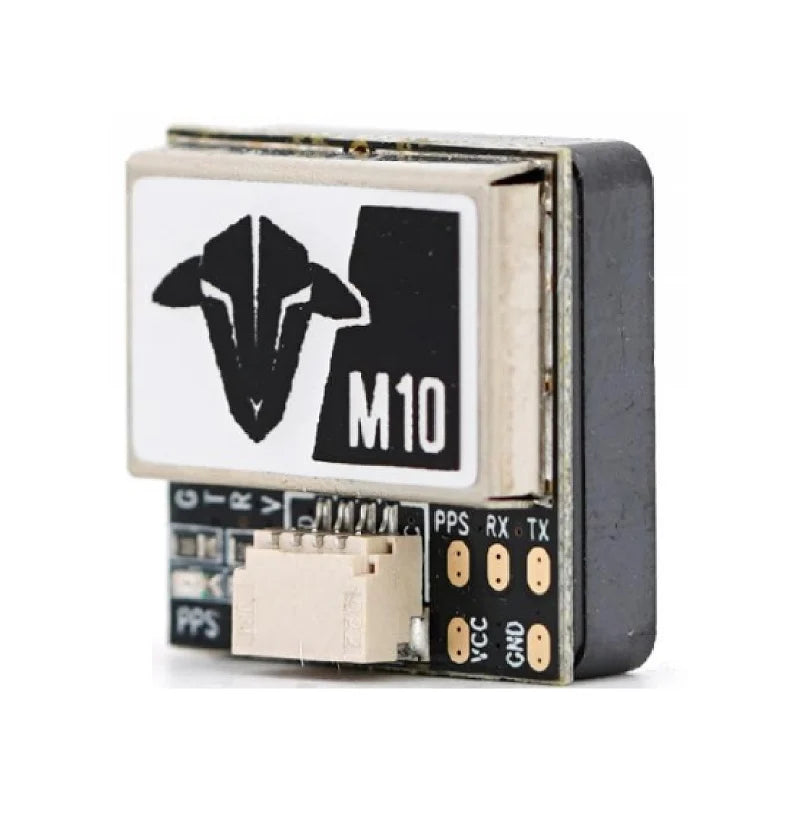

M10 GPS from TBS. Small in size, with a quick lock, great performance, and sensitivity. Precise GPS positioning for Betaflight, iNav, and more.


       Features:

      1. ublox UBX-M10050
      2. Flash memory for saving configuration.
      3. Chipset – ublox UBX-M10050
      4. Frequency – L1, 1575.42MHz ; L2,1561.10MHZ;L3,1602.00MHZ
      5. Baud Rate – 4800bps-921600bps, default 38400bps
      6. Sensitivity – (Tracking: -166dBm) | (Capture: -160dBm) | (Cold Start – 148dBm)
      7. Cold start – Average 26 seconds
      8. Warm start – Average 24 seconds
      9. Hot start – Average 1 second
      10. Accuracy – (HorizontalPosition: Autonomous<2m average) | (SBAS < 2.0m average) | (Timepulse signal: RMS 30 ns)
      11. Maximum height – 50000m
      12. Maximum speed – 500 m/s
      13. Maximum acceleration – ≦ 4G
      14. Refresh Rate – 0.25Hz-18Hz, default 1Hz
      15. Size – 18 x 18 x 6.1 mm
      16. Weight – 4.9g
      17. Input Voltage – 5V.

      Package Includes:

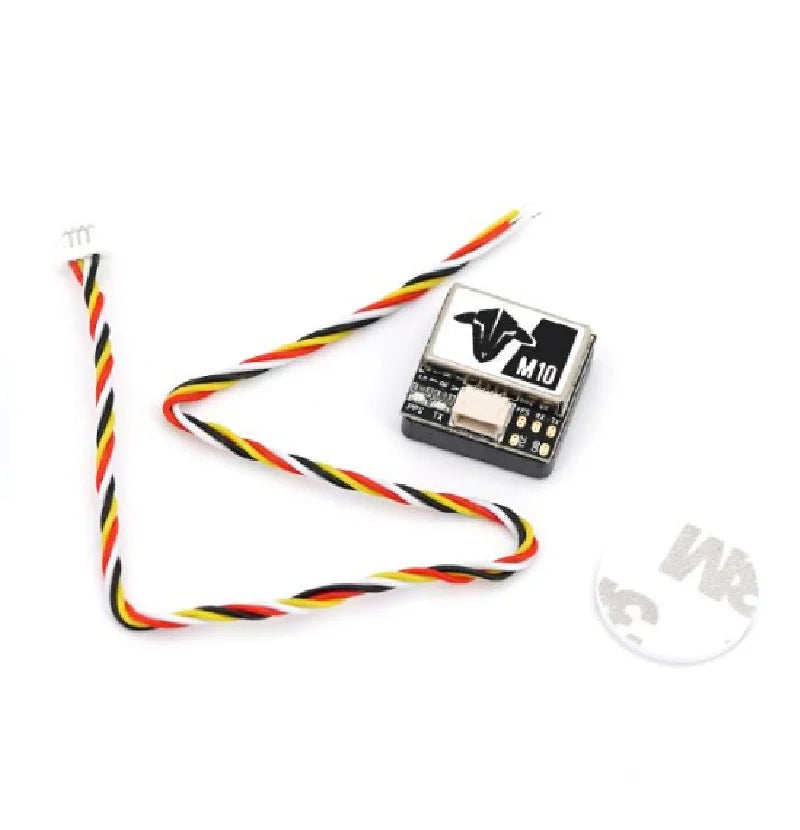

      • 1 x TBS M10 GPS GLONASS

      Specification:

      Chipset

      ublox UBX-M10050

      Maximum Speed

      500 M/s

      Baud Rate (bps)

      4800bps-921600bps, default 38400bps

      Frequency (MHz)

      L1, 1575.42MHz ; L2,1561.10MHZ;L3,1602.00MHZ

      Cold starts

      Average 26 seconds

      Warm Start Time (s)

      Average 24 seconds

      Hot Start Time

      Average 1 second

      Shipping Weight 0.01 kg
      Shipping Dimensions 9 × 7 × 1 cm
