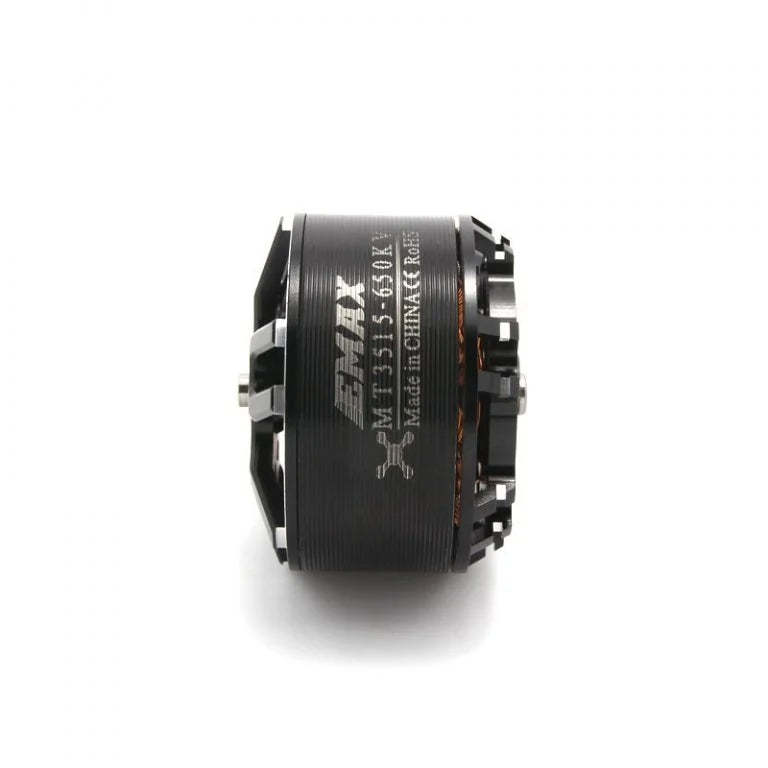

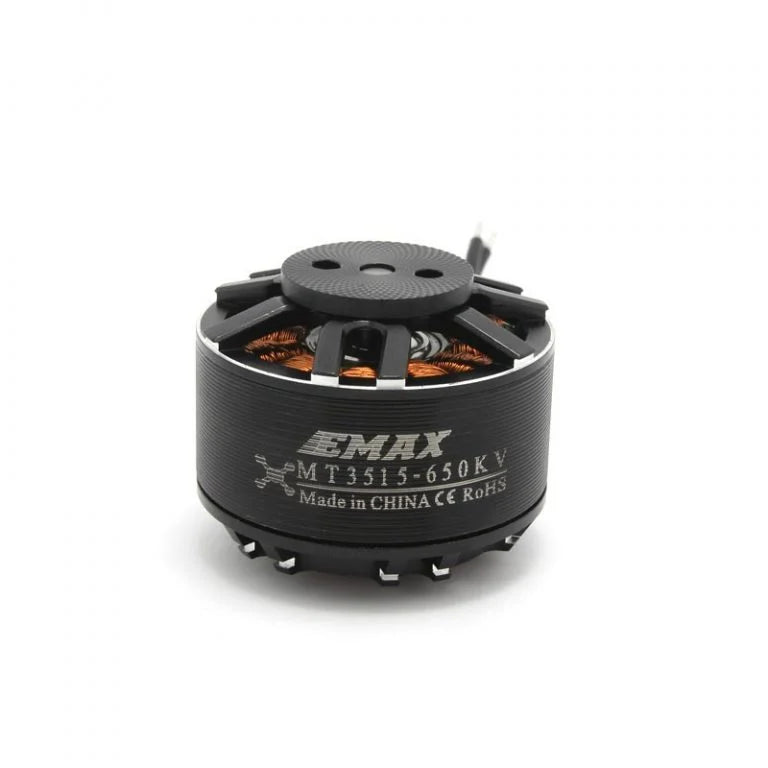

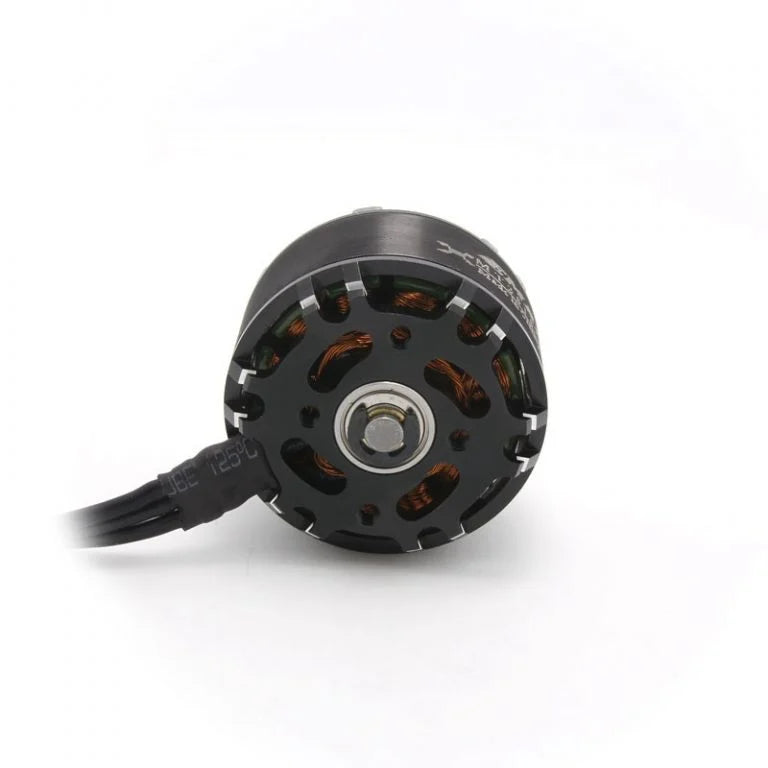

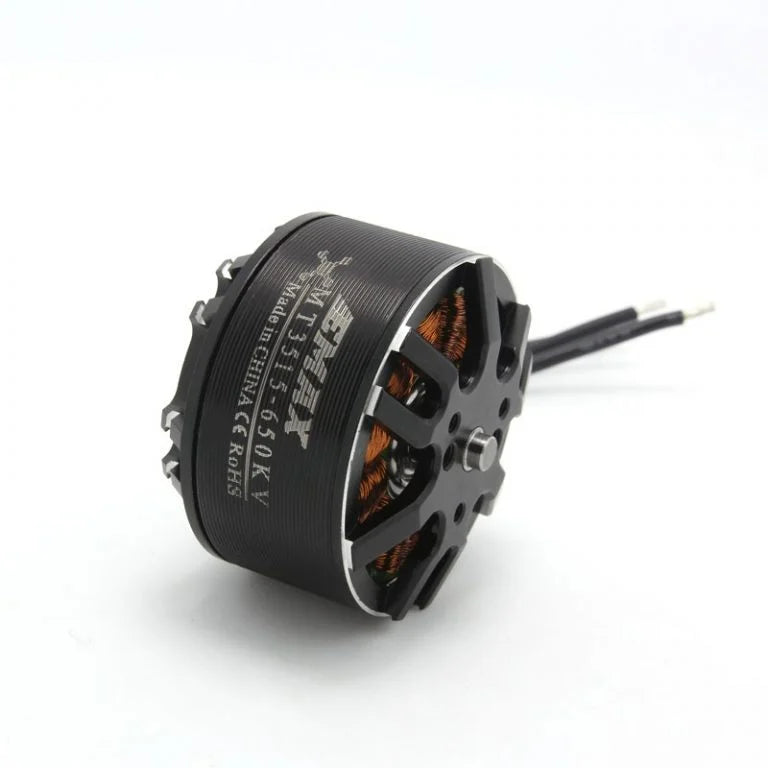

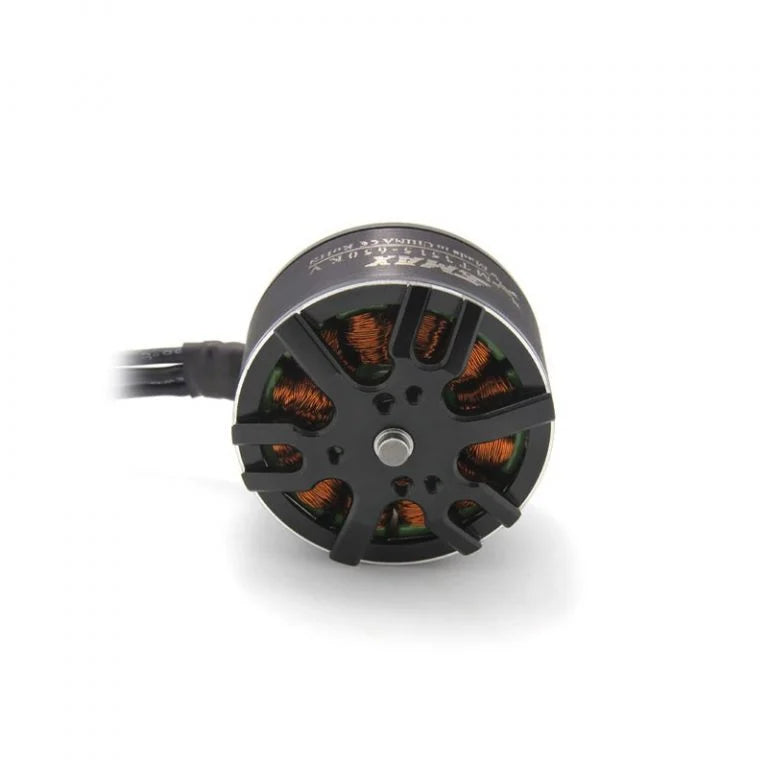

EMAX MT3515 650KV Brushless DC Motor – Silver Cap (CCW)

Regular price
Rs. 3,519.00
Sale price
Rs. 3,519.00
Regular price
Earn 1759 Reward Points. Learn More...
Order in the next
to get it by
Details

Properties:

  1. Framework: 12N14P
  2. Motor KV: 650KV
  3. LiPO Batteries: 4S-6S
  4. Max Thrust: 2870 gm
  5. Shaft: 5 mm
  6. Propeller:  13″-15″

Full- Description:

We at Vinatayskytech.in believe in supplying quality products to the makers who really are struggling hard to build something that is best in performance while assuring the long life of the design by using the branded components. This EMAX MT3515 650KV Brushless DC Motor (Original) is ready to stand up your needs!!!!

These EMAX Brushless DC Motor are imported from original Emax products manufacturers. The brand Emax is known for quality oriented product manufacturing in the market. Our team has selected some of the fine innovations from EMAX and tested them for their ability in labs before supplying to customers.

This EMAX MT3515 650KV Brushless DC Motor (Original) is specially designed for heavy lift applications while being highly efficient an reliable. MT3515 650KV BLDC motor can produce up to 2.8kg of thrust when perfectly synched with appropriate battery and propellers, so this one is more than sufficient for your heavy lift applications.

This EMAX MT3515 650KV Brushless DC Motor equips the high-quality bearings to ensure efficient and vibration free operation and silicone steel for high-performance operation with low temperature. These motors are specially meant for your Quadcopters or other types of Multirotors like Tri, Hexa etc.

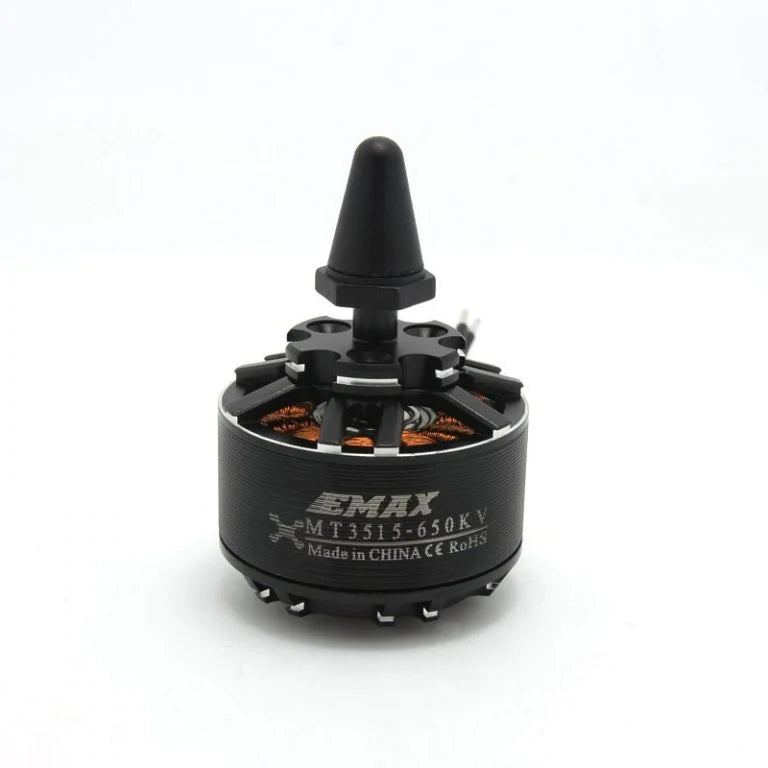

The combination of 4S LiPO(Lithium Polymer) battery with this EMAX MT3515 650KV BLDC motor and high-quality 1347 propeller as suggested by Vinatayskytech.in will give you an excellent flight characteristic.  It comes with a prop adapter to ease the propeller adjustment.

With qualities of durability in use and high-efficiency in performance supported by the high quality of the material, it is the perfect hit at your RC Model requirement. Its main feature includes its ability of transient response and higher stability.

The EMAX MT3515 650KV Brushless DC Motor provides appreciable thrust and efficiency at an affordable price.

“This is CCW rotating BLDC Motor, for CW rotating BLDC motor click below”,

EMAX MT3515 650KV BLDC Motor CW (Original)

Note
  • The BLDC Motor rotation is always opposite to the direction of Thread.
  • As in this case, the motor rotation direction is CCW, so the Thread tightening direction will be CW <“right-handed-thread”>.

Features :

  1. Longers duration of the flight, low CG design, lightweight design.
  2. Air suction system design, rapid cooling, higher efficiency and longer life.
  3. U clip prevents bearing from loosening.
  4. High precision CNC machining exquisite design, stern quality control revealing the user’s taste and position.
  5. Vibration free operation.
  6. Windings are made from copper of high purity.
  7. Powered by highest grade neodymium magnets.
  8. Generates less heat during operations.

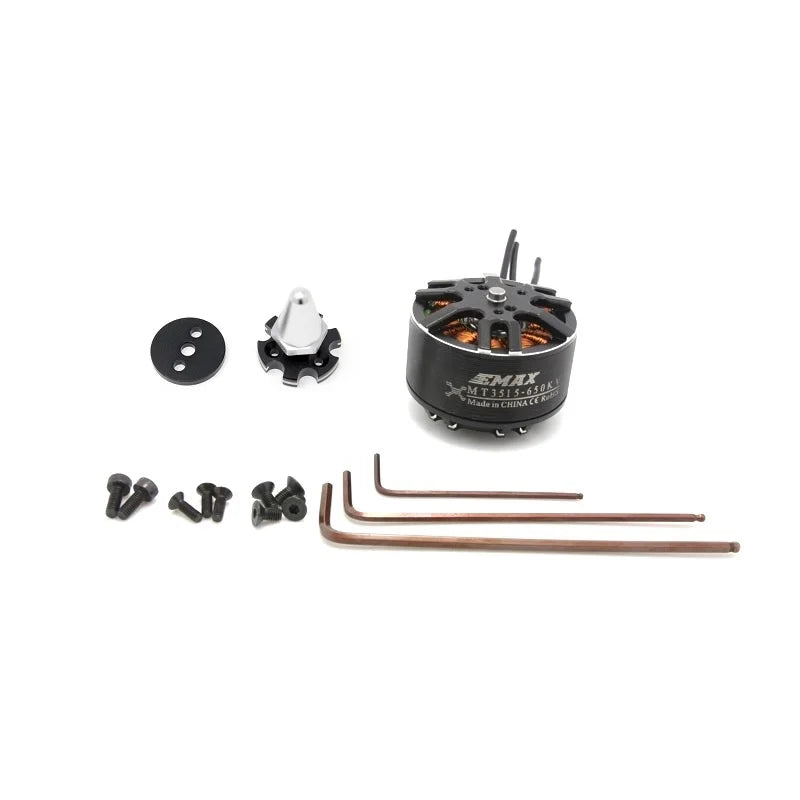

Package includes :

  • 1 x EMAX MT3515 650KV Brushless DC Motor

    Specification:

    Brand

    EMAX

    Model

    MT3515

    Rated current

    20A

    Peak current

    65A

    Framework

    12N14P

    Motor KV (RPM/V)

    650

    Maximum Thrust (gm)

    2870

    Compatible LiPO Batteries

    4S ~ 6S

    Shaft Diameter (mm)

    5

    Compatible Propellers Size (inch)

    13 ~ 15

    Length (mm):

    33.38

    Width (mm):

    41.5

    Weight (g):

    131

    Shipping Weight 0.15 kg
    Shipping Dimensions 10 × 5 × 4 cm
