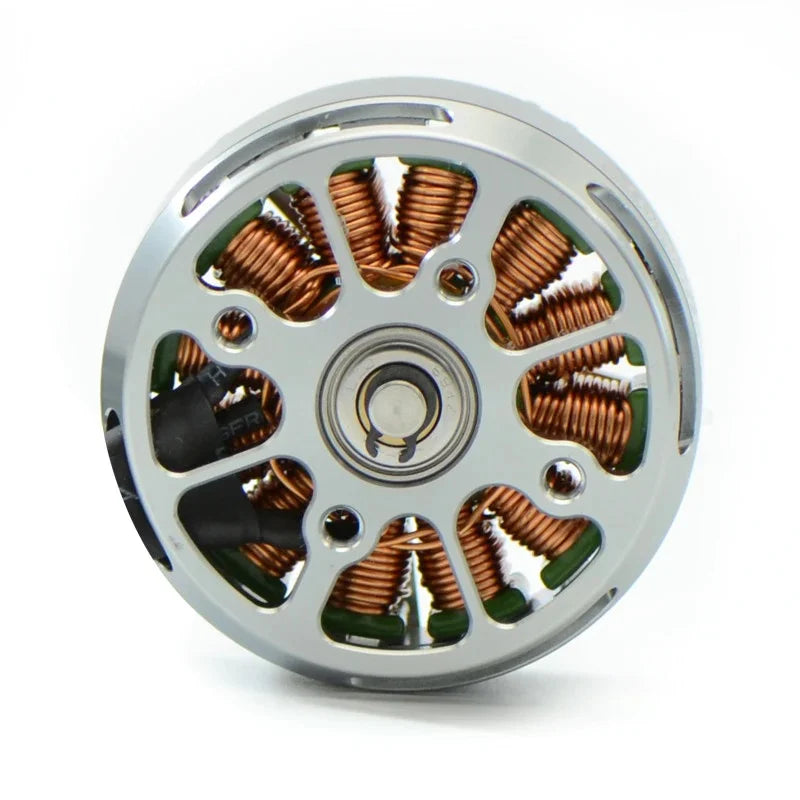

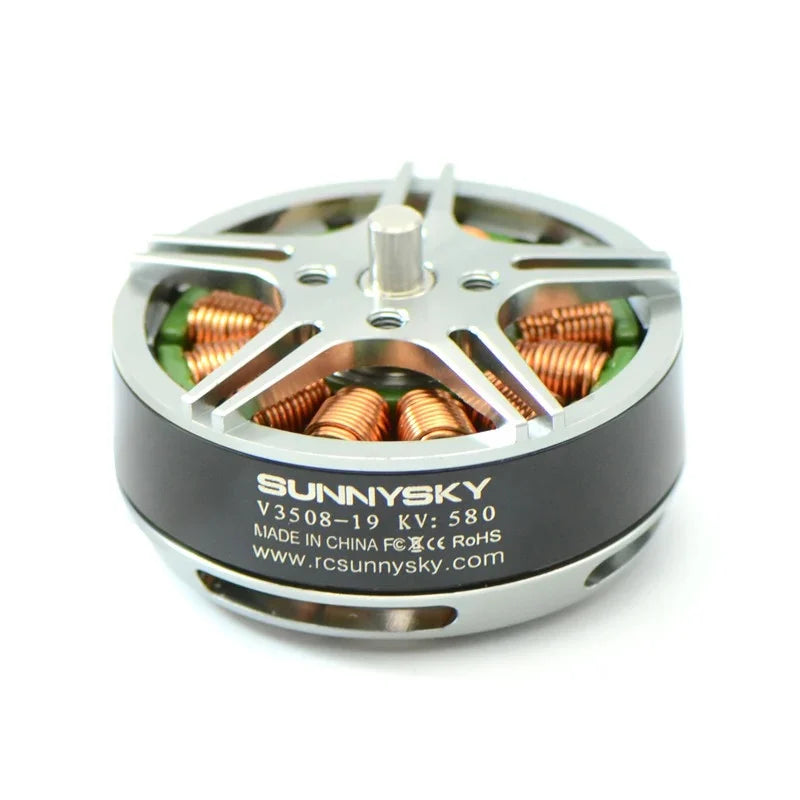

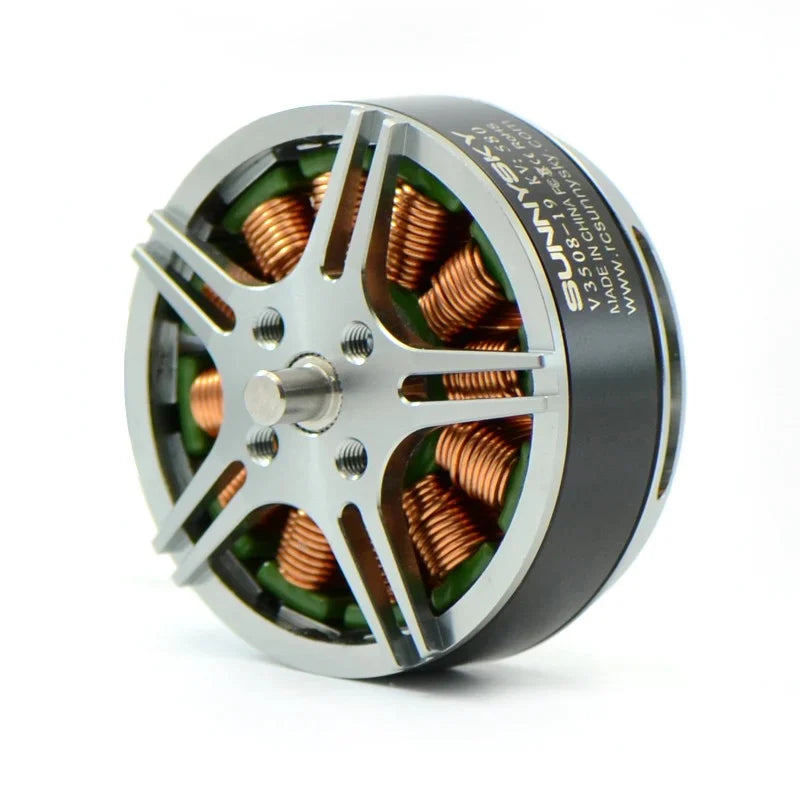

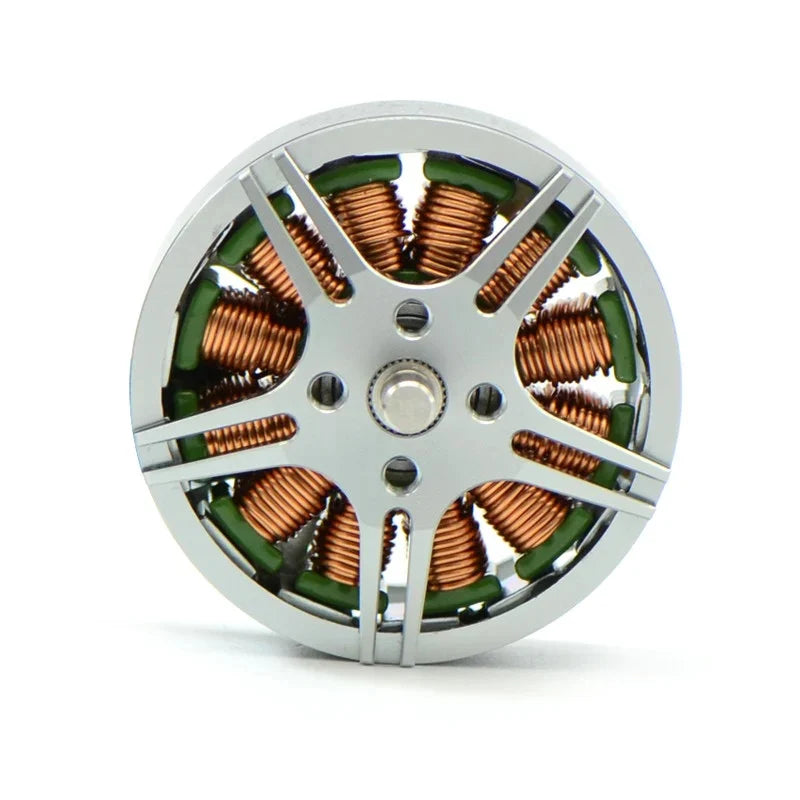

Sunny Sky V3508 KV380 Brushless Motors

Regular price
Rs. 5,281.00
Sale price
Rs. 5,281.00
Regular price
Earn 2640 Reward Points. Learn More...
Order in the next
to get it by
Details

Properties:

  1. Stator Diameter: 35mm
  2. Stator Thickness: 8mm
  3. No.of Stator Slots: 12
  4. No.of Rotor Poles: 14
  5. Motor Kv: 380
  6. No-load current: 0.3A/10V
  7. Recommended single take-off Weight: ≤800g

Full- Description:

Sunnysky V series of motors are specially designed to power long-endurance multirotor aircraft. Design styles of the whole series are high efficiency, stable structure, lightweight, high consistency, etc. These flat Sunny Sky V3508 motors are designed for long-flight time multi-rotors. These motors can produce enough torque at low RPM and work at peak efficiency during flight.

The whole series uses Sunnysky’s patented Stepped and knurled design that not only efficiently prevents motors from getting loose, but also reduces the probability of malfunction and unstable output power. The whole series use original Japanese EZO bearings that provide quiet and stable flight in the air.

With the guarantee of strength, the caps of V motors are highly hollow-cutted to save weight, so that these Sunny Sky V3508 motors can reach maximum thrust-to-weight ratio and gain more flight time.

V series motors are tested with the strictest procedures of SunnySky QC protocols. Each of these motors is dynamically balanced with our highest standard. The axial and radial runouts of each rotor are tested strictly according to its design. The difference in the performance of each motor is controlled within 3% so that these products can provide precise and stable power for professional applications.


    Features:

    1. High Performance: The Sunny Sky V3508 KV380 motors deliver outstanding power and efficiency for your RC aircraft or drone.
    2. Precision Engineering: Crafted with meticulous attention to detail, these motors ensure smooth and reliable operation.
    3. Versatile KV Rating: With a KV rating of 380, they suit various flying styles, from agile acrobatics to stable aerial photography.
    4. Durable Build: Built to withstand rigorous flights and environmental conditions, ensuring longevity and reliability.
    5. Easy Installation: The motors come with user-friendly connectors, simplifying the setup process.
    6. Enhanced Cooling: The design incorporates efficient cooling to prevent overheating during demanding flights.

    Package Includes:

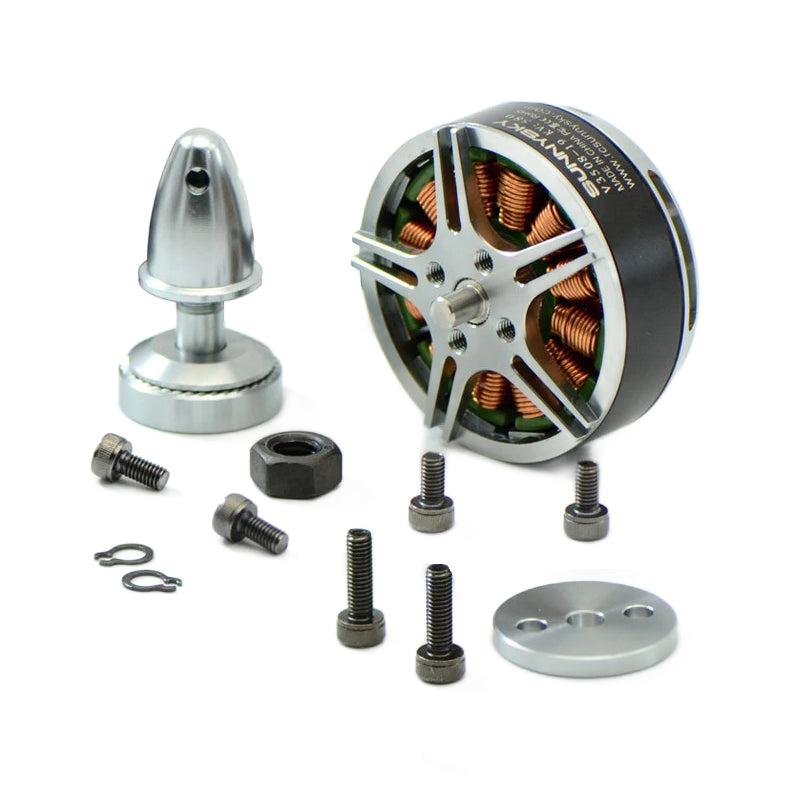

    • 1 x Sunny Sky V3508 KV380 Brushless Motors

                Specification:

                Stator Diameter

                35mm

                Stator Thickness

                8mm

                No. of Stator Arms

                12

                No. of Stator Poles

                14

                Motor KV

                380

                No-Load Current (A/10V)

                0.3A/10V

                Motor Resistance

                257mΩ

                Max Continuous Current

                16A/30s

                Max Continuous Power

                400W

                Motor Weight(gm)

                97

                Outside Diameter (OD) mm

                41.8

                Motor Body Length(mm)

                20

                Max Lipo Cell

                4-6S

                Required ESC (A)

                30

                Shipping Weight 0.195 kg
                Shipping Dimensions 12 × 9 × 5 cm
