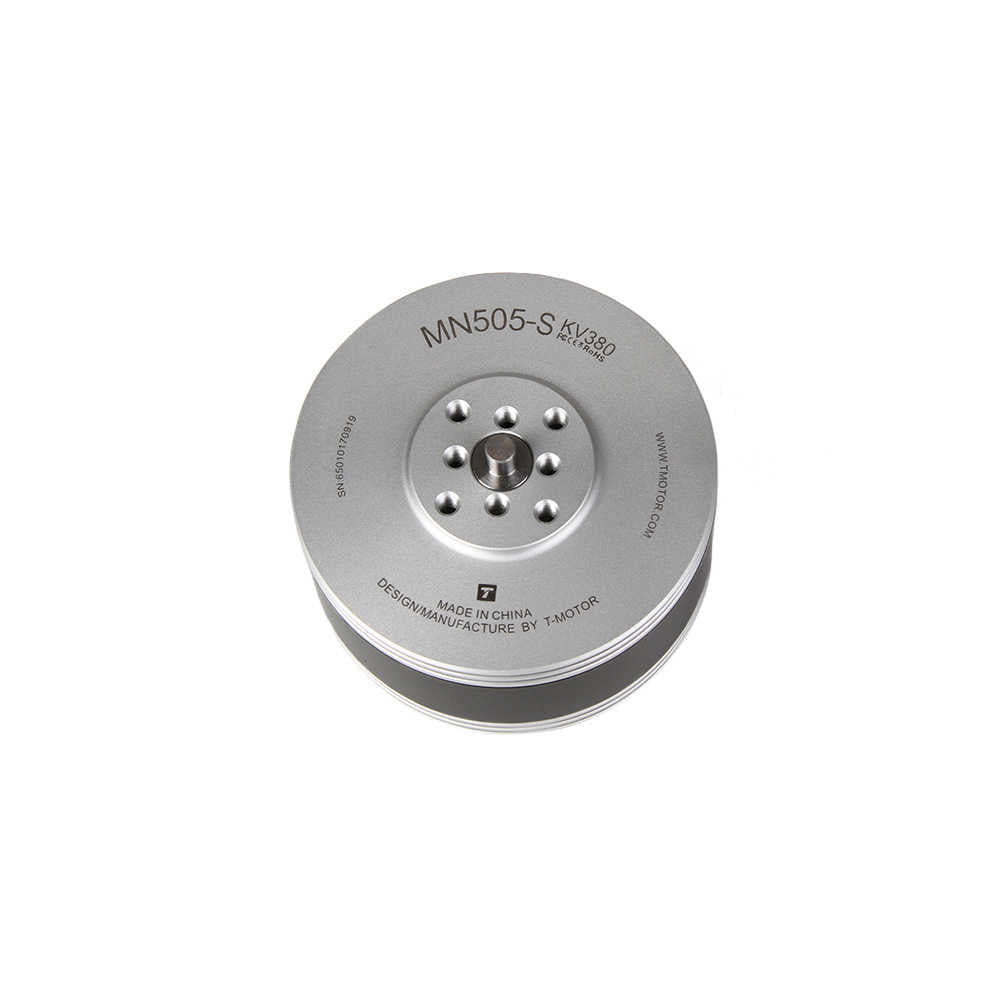

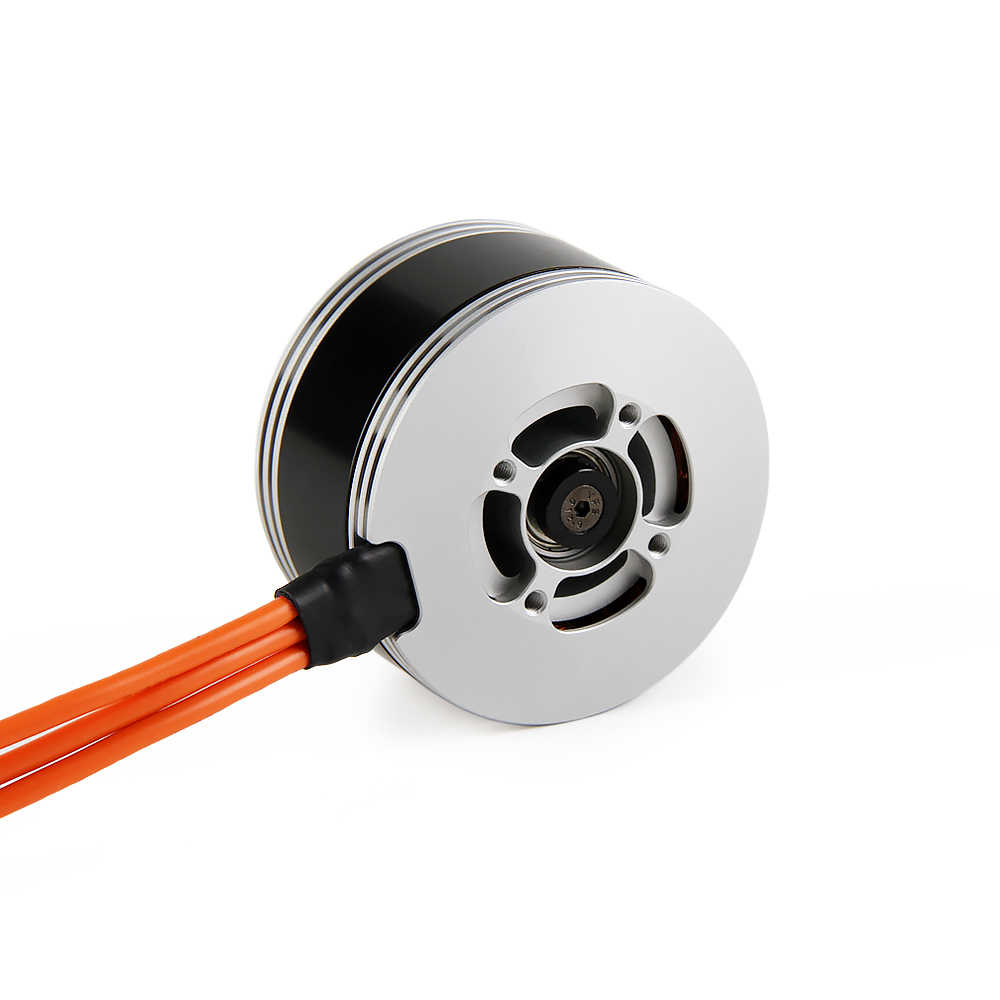

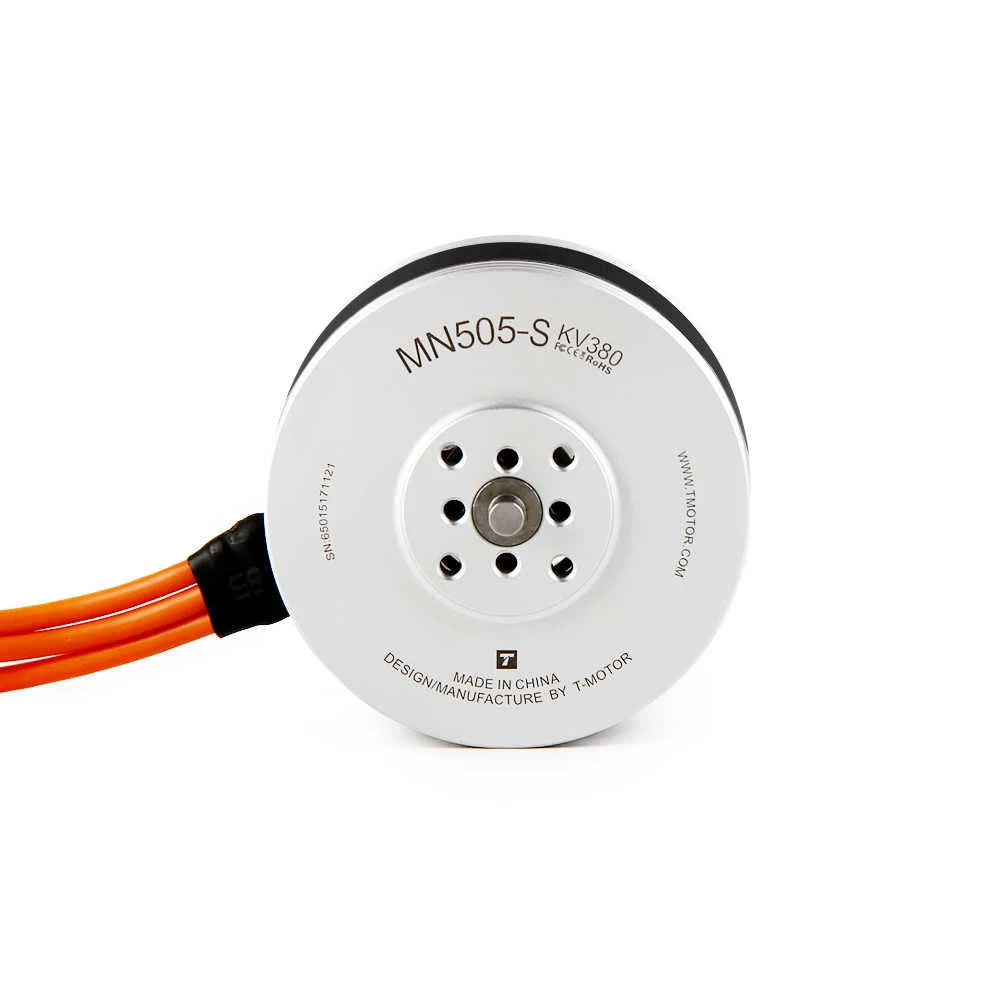

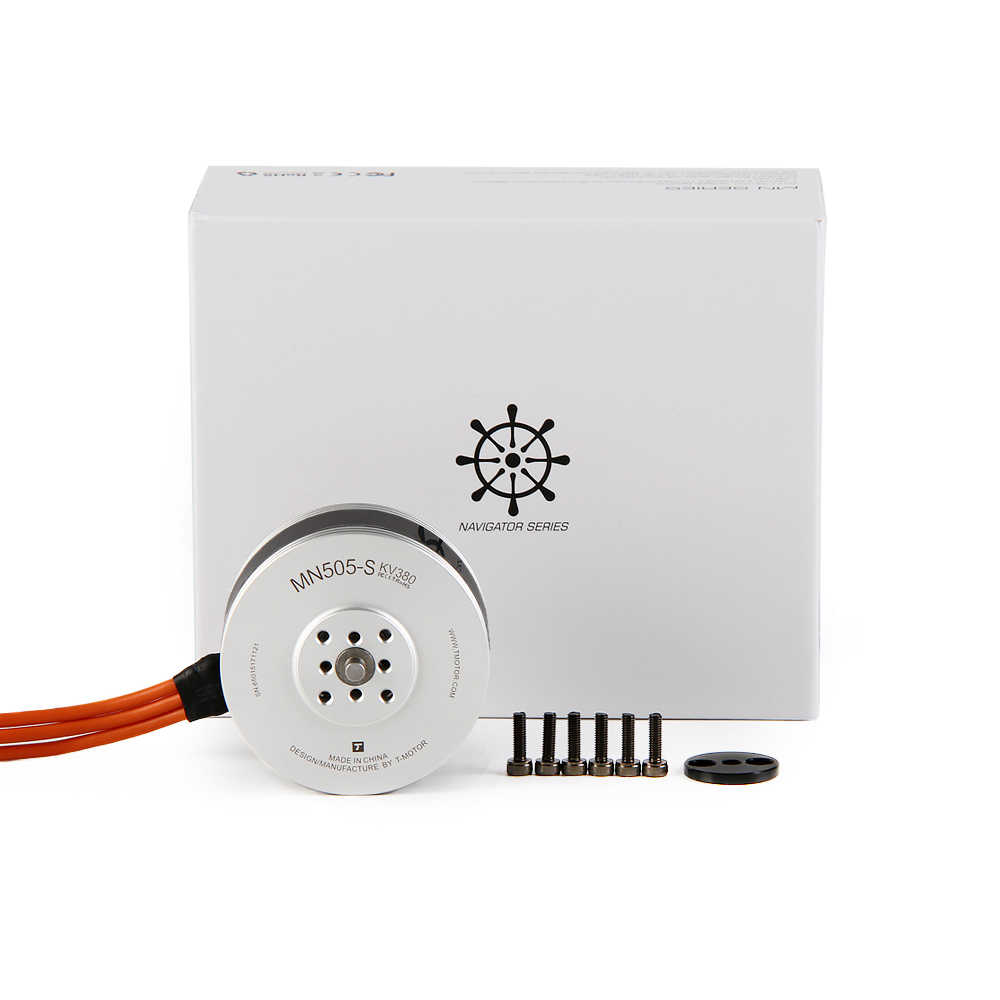

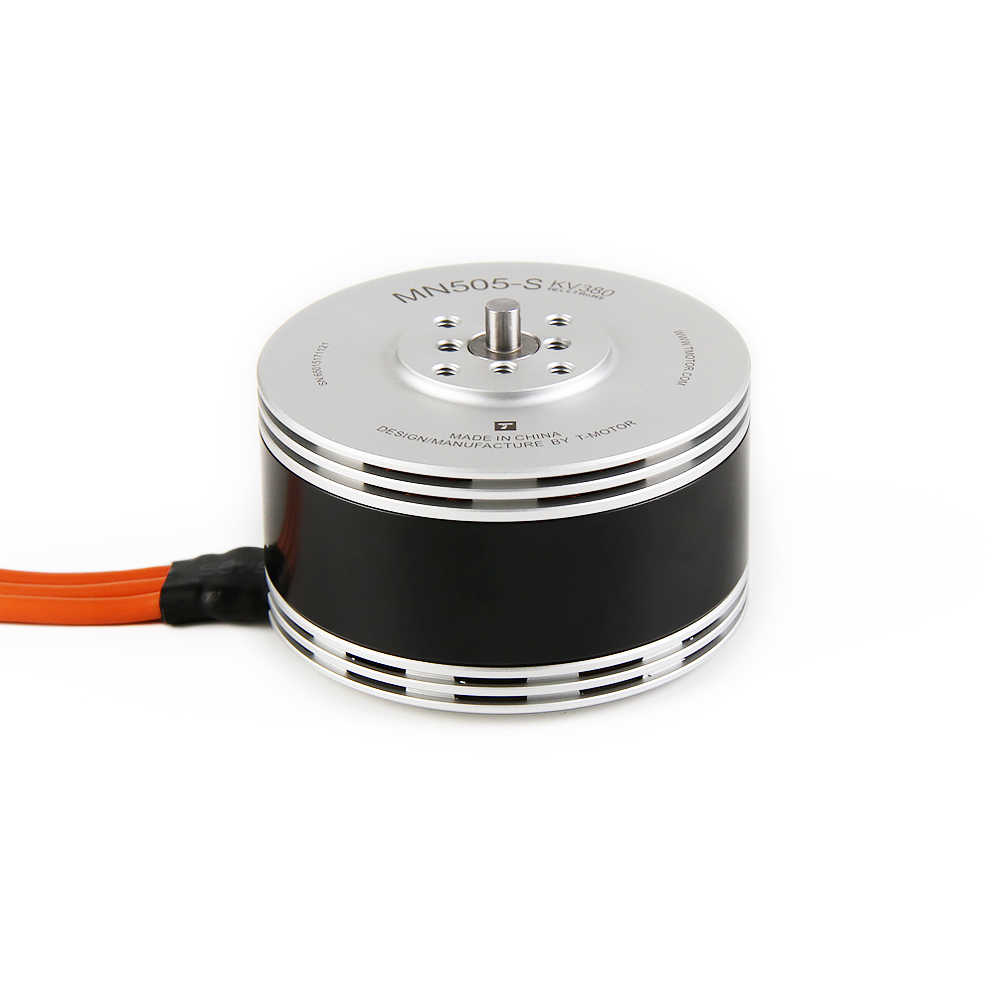

Among a number of new entrants in the T-Motor Navigator range is the MN505-S series motors which are available in a number of RPM/V configurations to provide from approximately upto 5,000 grams of thrust. The new Navigator™ design provides borrows a number of features from the premium U-Power range and some developments from T-Motor’s ever-evolving lineup of FPV motors. The most striking change here is the more enclosed build, providing much better protection against dust and water ingress, which also incorporates a centrifugal fan, to draw air up through the motor and improve heat dissipation and overall cooling. Secondly, the new approach to winding motors with a high-temperature resistant winding gives more protection from burn-out caused by trapped propellers and other mishaps. There are not only important internal changes and external design changes, but the internal T-shaped shaft is now fixed with a clip and a screw to provide extra resilience, strength and reliability under load without developing a loose rotor.
MN505-S motors are designed for aerial photography platforms, monitoring systems and mapping/surveying aerial vehicles. These motors are compatible with T-Motor carbon-fibre propellers both fixed and folding.
| Model |
T MOTOR NAVIGATOR WATERPROOF MN505-S 380KV |
|---|---|
| Working Current(uA) |
4-48 |
| Maximum RPM |
6975 |
| Maximum Thrust (gm) |
5444 |
| Rated Power (W) |
1163 |
| Efficiency |
8-5 |
| Operating Temperature (°C) |
-40~80°C |
| Internal Resistance(Ω) |
28 |
| Shaft Diameter (mm) |
IN=6,OUT=4 |
| No. of Cells |
6 |
| Allowed Wire Size (AWG): |
16 |
| Shipping Weight | 0.1 kg |
| Shipping Dimensions | 8 × 6 × 4 cm |
