CC3D V2 ZMR Power Distribution Board with Dual BEC LC Filter & LED Switch

Rs. 349.00
Rs. 349.00
Write a Review
Earn 174 Reward Points. Learn More...

Here is only a suggestion: Reward Points function (demo function). To use real Reward Points, you need a 3rd party Shopify App.

Your items may arrive sooner than the estimated delivery date. Ralph Lauren reserves the right to send packages via other shipping methods based on the shipping destination as long as orders will still arrive within the arrival times outlined on RalphLauren.com.

When you choose the Economy delivery option, packages are delivered Monday through Saturday 8 AM to 4:30 PM. Orders sent by Fast, 2-Business-Day or Next-Day shipping methods are delivered Monday through Friday from 8 AM to 4:30 PM.

We recommend choosing Fast or Next-Day delivery if you are shipping your package to a business address. You will be asked to provide a telephone number on the shipping page of checkout, which is important in the event the courier needs to arrange a delivery time with you.

You will also be asked to provide an email address, to which we will send confirmation that your order was placed.

Add to wishlist Added to wishlist
Order in the next
to get it by
Ask us any Question
Details

Properties:

  1. BEC output: 5V12V3A band filter
  2. Input Voltage: 2-6S(MAX: 3A)
  3. Weight: 9 gm(with connector)
  4. Latest UBEC, LC Filter
  5. Integrated filter circuit boards, more stable, make FPV further and clearer
  6. Compatible with CC3D/Naze32/F3 flight controller
  7. Slim design, lightweight, and easy to use

Full-Description:

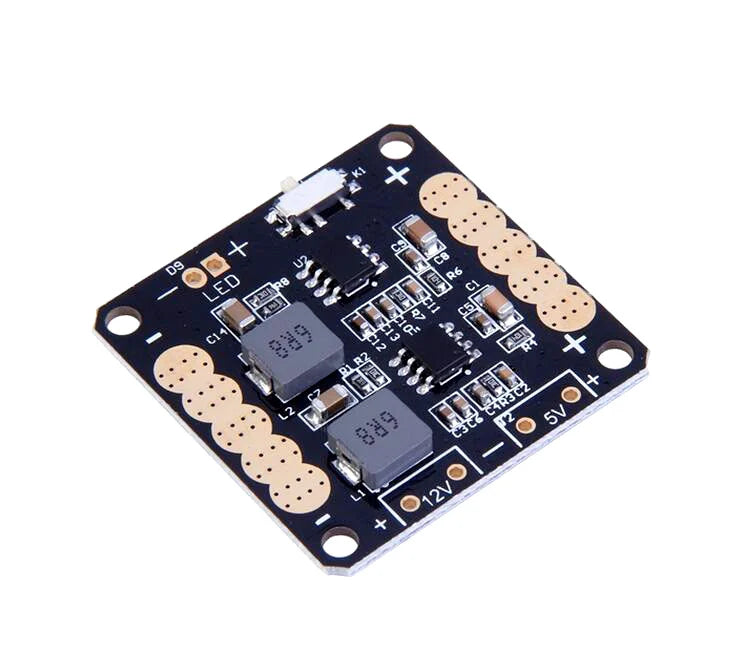

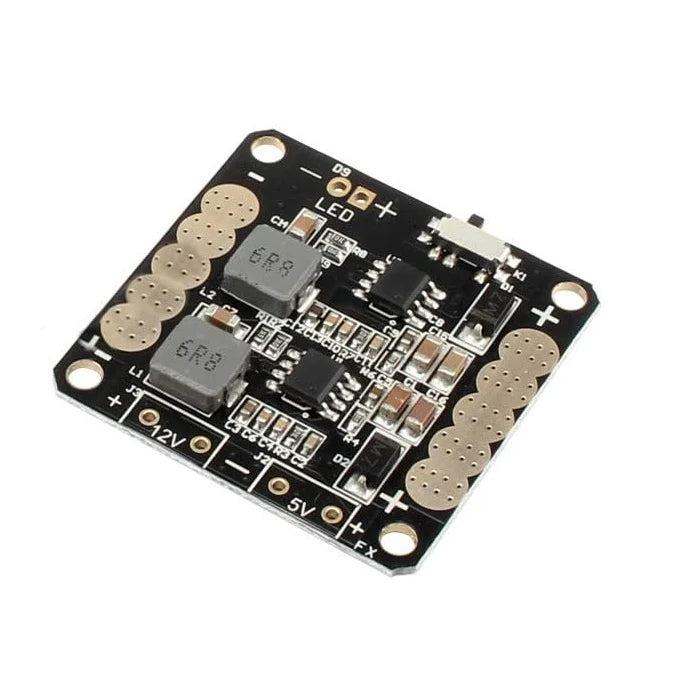

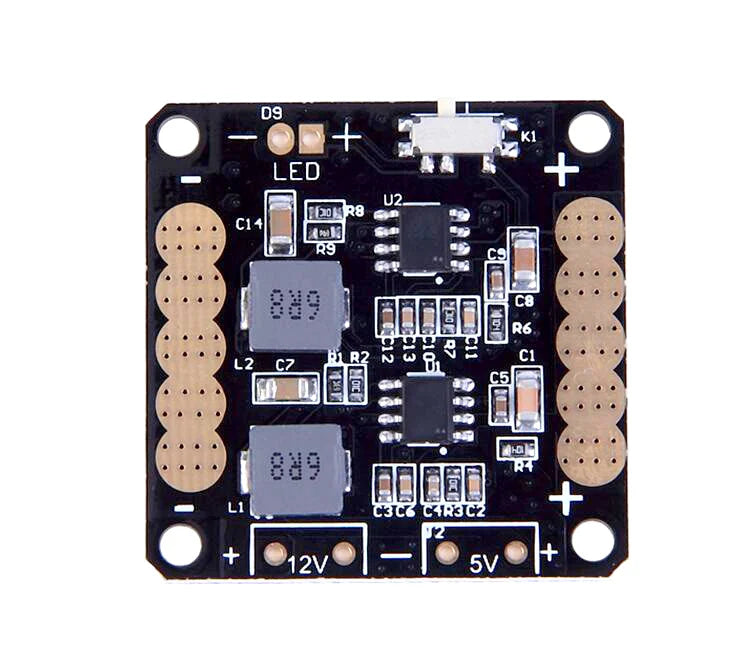

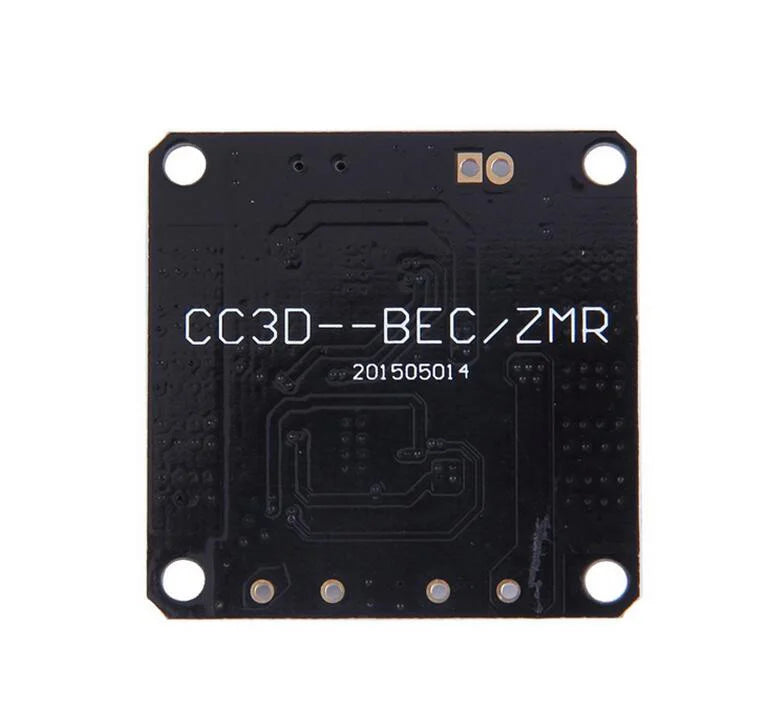

This CC3D V2 ZMR Power Distribution Board with Dual BEC LC Filter & LED Switch is the one of the latest version of the popular CC3D power distribution board (PDB) with 5 and 12-volt BECs.
The layout remains the same as the V1 PDB, but the BECs are now integrated into the PCB using surface-mount-technology, which makes them much more reliable.
The 5V BEC connection is ideal for powering your flight controller or RC receiver, while the 12V output could be used to power FPV components or lighting. Both BECs are compatible with 2-6S LiPo and can output up to 3A continuous. The board also features an unregulated output for powering LEDs, which is switchable so you can turn your lights off when you don’t need them or to save power.
The board is a standard 36mm sized PDB, so you can stack it cleanly with the CC3D, Naze, and most other board type flight controllers.
This power distribution board is suitable for Naze32, CC3D, SP F3, APM, etc flight controller (36 * 36 hole distance). With OSD function, support KVteam, MWOSD firmware etc., comes with FTDI. When OSD connect to PC, it will auto disconnect with flight controller, TX RX Dual way BEC, DC-DC synchronous rectifier 5V voltage regulation(3A), come with LC filter.

Note:

Since this is an Open Source Power Distribution Board, there are many manufacturers who are supplying this product. We have picked up the best quality products from the market and tested them for their functionality. And finally selected best amongst them. Our product works exactly same as we have described above in the description.

Features :

  1. Good-Quality Landing Gears
  2. Provides 200mm ground clearance
  3. Skidproof landing gears
  4. Compatible with F450 and F550 and another large size frames


Package Includes :

  • 1 x Landing Gear

Specification:

Model

CC3D V2
BEC output

5V/12V 3A
Input Voltage

2-6S (max. 3A)
Length (mm):

36
Width (mm):

36
Mounting Distance(mm)

30.5
Weight (g):

9
Shipping Weight 0.014 kg
Shipping Dimensions 5 × 5 × 1 cm
