ESC Power Distribution Board Soldered XT60 Plug & 3.5mm Banana Bullet Connectors For 250mm Multicopter FPV

Rs. 399.00
Rs. 399.00
Write a Review
Earn 199 Reward Points. Learn More...

Here is only a suggestion: Reward Points function (demo function). To use real Reward Points, you need a 3rd party Shopify App.

Your items may arrive sooner than the estimated delivery date. Ralph Lauren reserves the right to send packages via other shipping methods based on the shipping destination as long as orders will still arrive within the arrival times outlined on RalphLauren.com.

When you choose the Economy delivery option, packages are delivered Monday through Saturday 8 AM to 4:30 PM. Orders sent by Fast, 2-Business-Day or Next-Day shipping methods are delivered Monday through Friday from 8 AM to 4:30 PM.

We recommend choosing Fast or Next-Day delivery if you are shipping your package to a business address. You will be asked to provide a telephone number on the shipping page of checkout, which is important in the event the courier needs to arrange a delivery time with you.

You will also be asked to provide an email address, to which we will send confirmation that your order was placed.

Add to wishlist Added to wishlist
Order in the next
to get it by
Ask us any Question
Details

Properties:

    1. Material: glass fiber
    2. Compatible with MK KK flight control installment pitch of holes
    3. Compatible with MK KK flight control system
    4. Can connect 1-8 ESC.
    5. This has an XT60 plug to connect a battery.
    6. This Distribution board has 8 number of the channel to connect different ESCs with 3.5mm Banana Bullet Connectors.

Full-Description:

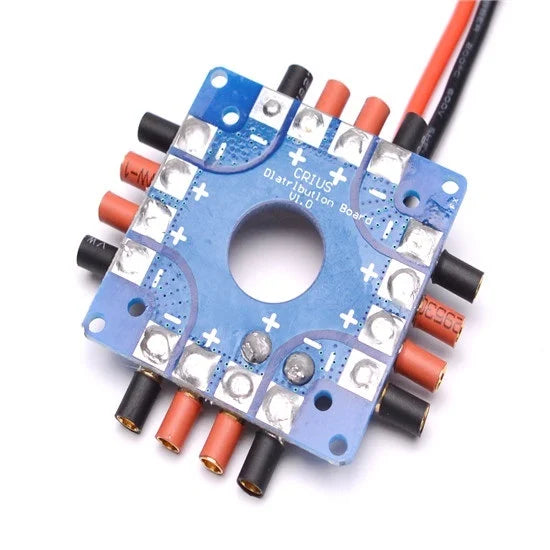

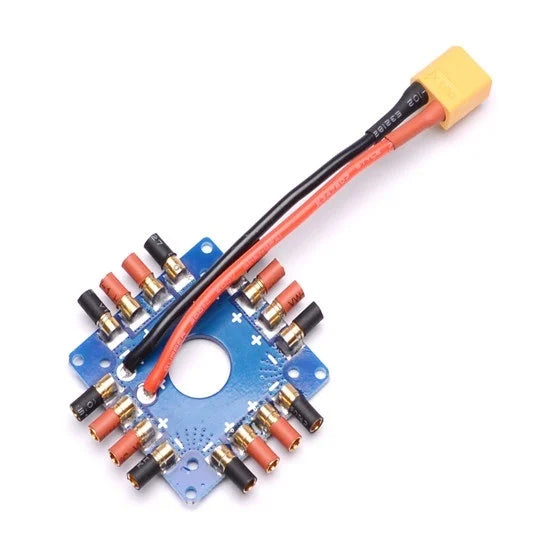

This is ESC Power Distribution Board Soldered XT60 Plug & 3.5mm Banana Bullet Connectors For 250mm Multicopter FPV.  These lightweight distribution boards make powering multi-rotor aircraft easy.

Simply solder a battery connection onto the two central terminals, and you’ve got eight pairs of connections to use – perfect for quadcopters, hexacopters, and even octocopters.

The ESC Power Distribution Board equips Soldered XT60 Plug & 3.5mm Banana Bullet Connectors is great for smaller multirotor builds. They’re compact and lightweight and offer large solder pads – making them easy to work with.

These boards can handle some serious current – up to 20A per output for a quadcopter build or drop that down to 10A each for an octocopter.

Features :

  1. Material: glass fiber
  2. Compatible with MK KK flight control installment pitch of holes
  3. Compatible with MK KK flight control system
  4. Can connect 1-8 ESC.
  5. This has an XT60 plug to connect a battery.
  6. This Distribution board has 8 number of the channel to connect different ESCs with 3.5mm Banana Bullet Connectors.

Package Includes :

1 x ESC Power Distribution Board Soldered XT60 Plug & 3.5mm Banana Bullet Connectors For 250mm Multicopter FPV

Specification:

Width (mm):

50
Height (mm):

2
Weight (g):

25
Mounting Holes(mm)

45×35
Shipping Weight 0.03 kg
Shipping Dimensions 6 × 6 × 1 cm
