Seagull #IR Infrared UAV Camera Trigger

Regular price
Rs. 2,804.00
Sale price
Rs. 2,804.00
Regular price
Earn 1402 Reward Points. Learn More...
Order in the next
to get it by
Details

Description:

  • #IR –  Speed of Light.

    No viable tethered solutions to trigger your camera? Does your camera feature infrared receiver?

    Don’t worry Seagull #IR got you covered, it gives control of your cameras shutter via infrared commands.
    #IR will work with Sony, Nikon, Canon and Olympus cameras that are able to be triggered by an infrared remote.



    NOTESeagull #IR will work with all cameras listed – no matter which model your order it for !

#IMU SOLUTION

Representation of Pix4D plot


What it does:

  • Seagull #IR supports the following modes

    • Picture ( Shutter release action )
    • Video Record  ( NOTE: Only works with capable Sony cameras )


What it supports:

The following hardware is supported

  • Flight Controllers:

    • Pixhawk 1
    • Pixhawk 2.1
    • Pixracer
    • APM 2.6
    • APM 2.5
    • DJI Wookong
    • DJI A2
    • DJI A3

    – and many others with camera support

    R/C radio systems:

    • That interfaces with standard PWM signal (almost any radio system)

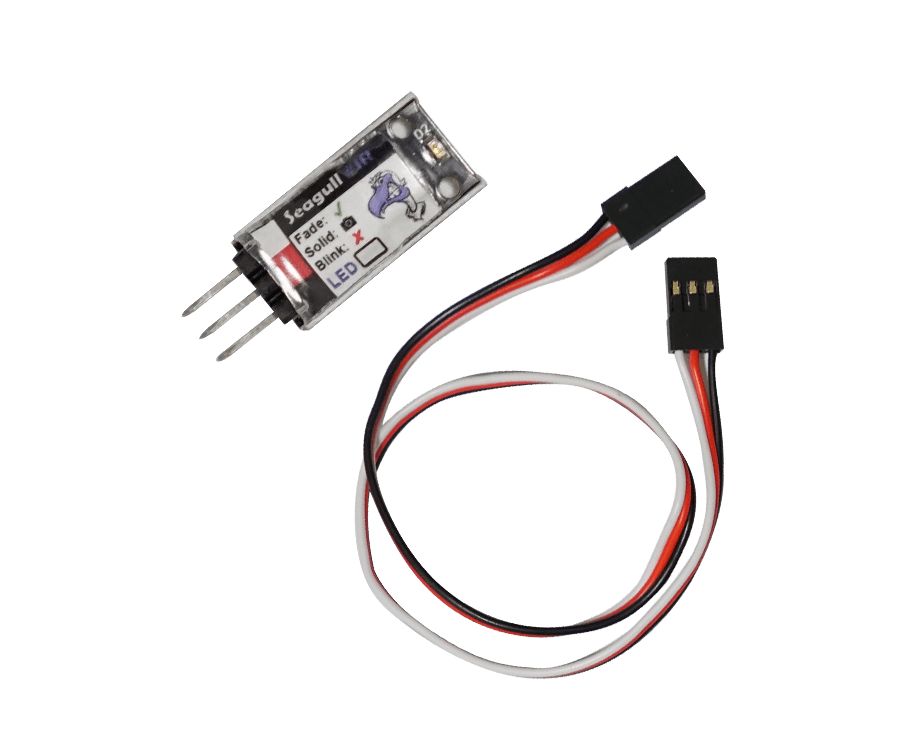

Package Includes:

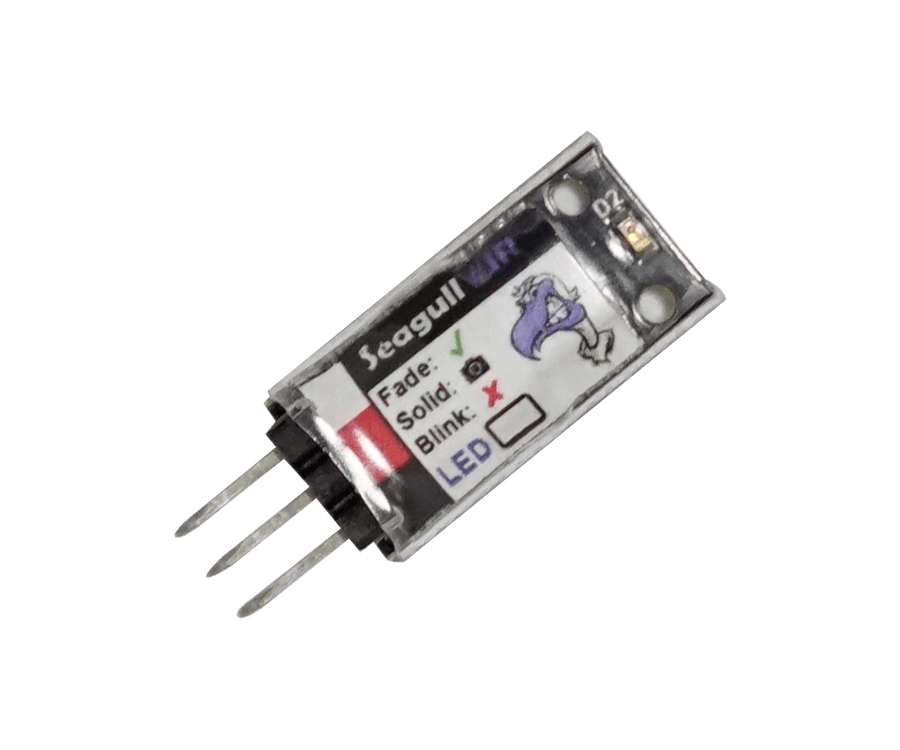

  • Seagull #IR

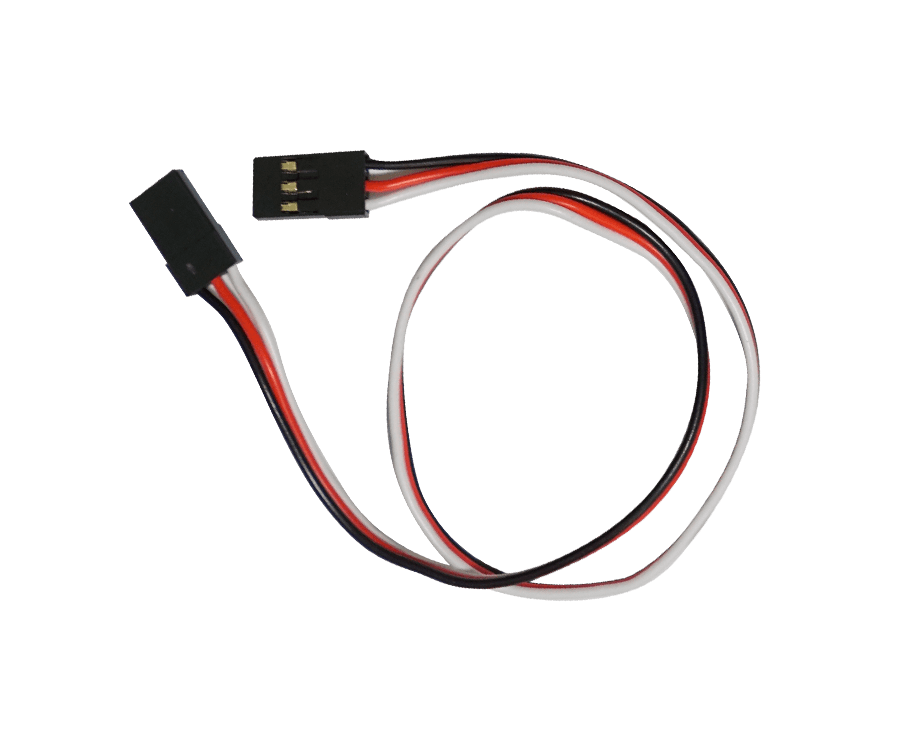

  • x Servo cable ( 30cm length )

Specification:

Voltage 3.5 – 5.5 volts (5 volts recommended, do NOT exceed 5.5V!)
Current draw 22.5mA MAX
Input signal Standard R/C PWM servo signal (between 1000 – 2000µS)
Dimensions 23.5mm x 9.8mm x 4.4mm
Weight 1g (approximately 4g with servo cable)
