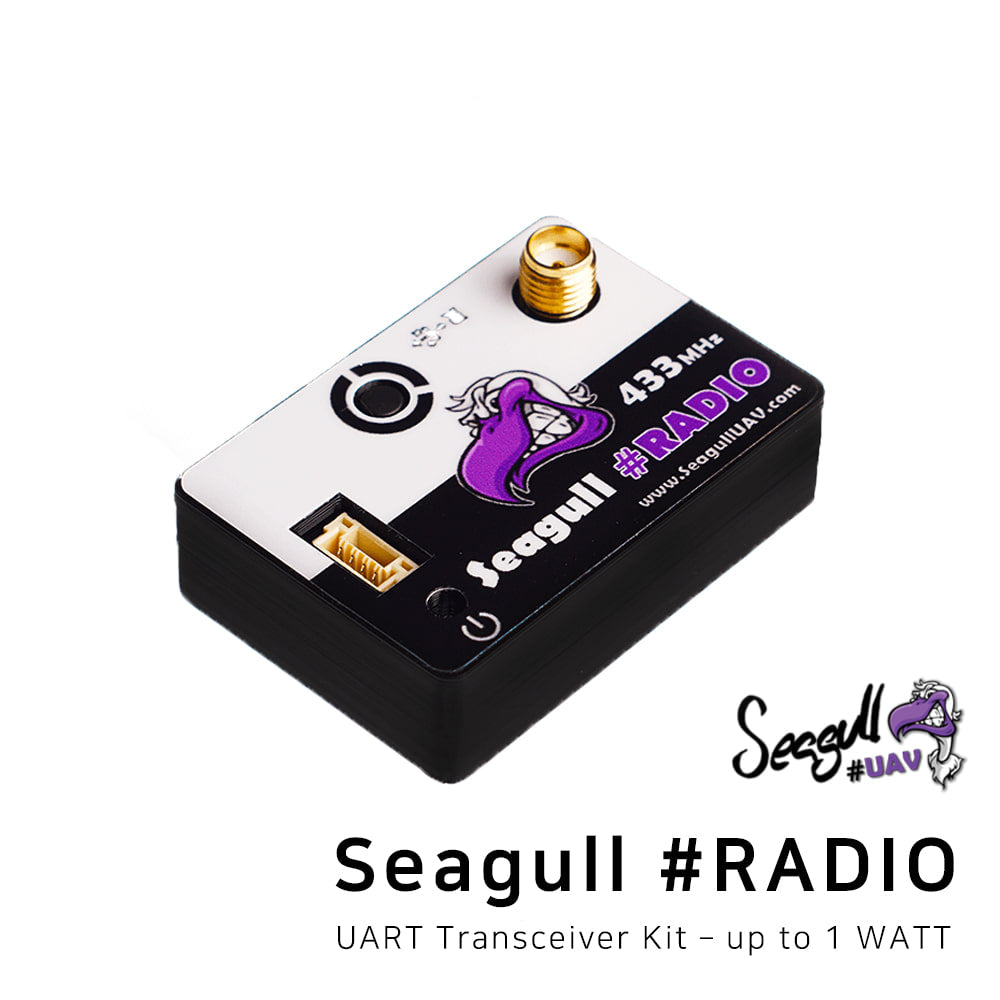

Seagull #RADIO UART Transceiver Kit – up to 1 WATT

Regular price
Rs. 10,999.00
Sale price
Rs. 10,999.00
Regular price
Earn 5499 Reward Points. Learn More...
Order in the next
to get it by
Details

Description:

  •   #RADIO – Roger That.

    Seagull #RADIO is a fully configurable transceiver module designed for use in platforms where unrestricted data size and continuous communication is required, as well as long range – stretching up to 6 kilometers!

    #RADIO is perfect solution to use as a telemetry module to transmit data back to the ground control software from your Flight Controller or use the modules with Seagull #GPK to handle RTCM data streams in order to achieve RTK FIX.

#RADIO SOLUTION

Representation of two #RADIO modules transmitting and receiving “Hello World!”


What it does:

  • Seagull #RADIO highlights the following features

    • Unlimited size data packages transfer/receive!
    • Adjustable output power from 100mW to 1WATT
    • Adjustable frequency and target addresses
    • Air data rate up to 168kbps
    • Range up to 6km
    • UART Interface

What it supports:

The following hardware is supported

  • Flight Controllers:

    • Pixhawk 1
    • Pixhawk 2.1
    • Pixracer
    • APM 2.6
    • APM 2.5
    • – any Flight Controller that has TELEMETRY UART PORT operating at 3.3V logic level

    Seagull:

    • #GPK
    • #GPK2

    Any application that requires data to be transferred!


Package Includes:

  • 2 x Seagull #RADIO
  • 2 x Antenna for #RADIO

Specification:

Voltage 3.9 – 12V (5 volts recommended – do NOT exceed 12V!)
Communication level 3.3V
Current draw (transmitting) 100mW = 31.8mA<br>500mW = 159mA<br>1Watt = 318mA
Current draw (receiving) 29mA
Dimensions 45mm x 41mm x 11mm
Weight 16g
