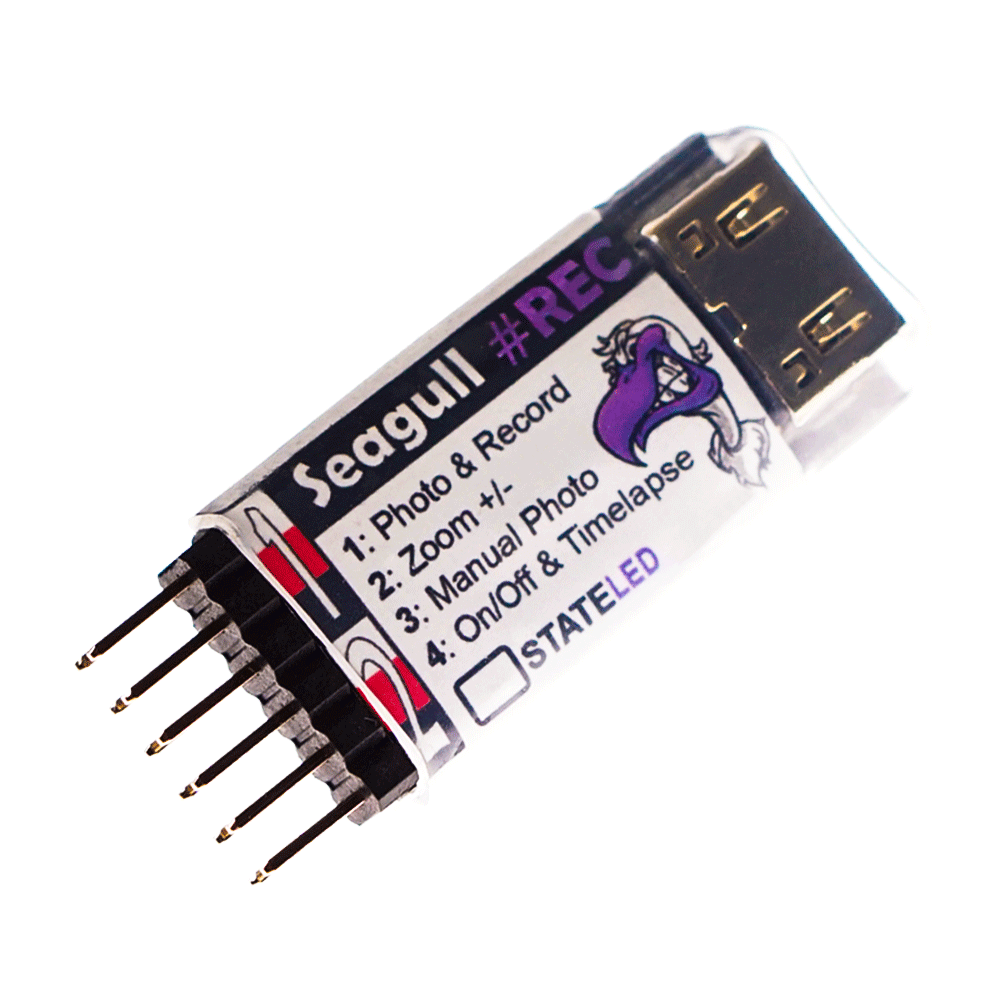

Seagull #REC Sony MULTI Camera Controller

Regular price
Rs. 8,999.00
Sale price
Rs. 8,999.00
Regular price
Earn 4499 Reward Points. Learn More...
Order in the next
to get it by
Details

Description:

  •    #REC – Take Control.

    Take control and capture the moment with Seagull #REC – exclusively designed for Sony MULTI equipped cameras!

    #REC gives you the utmost control of your camera whilst in flight – from shutter control to video record, zoom and more. #REC is the most reliable Sony MULTI camera controller designed for usage within UAV industry.

    It’s a perfect solution if you are working within Aerial Videography, Photography, Geomapping, Agriculture Analysis, 3D modelling or similar fields where you need utmost control of your camera.


What it does:

  • Seagull #REC supports the following modes

    • Video record Start/Stop
    • Zoom ( Variable Zoom In/Out speeds )
    • 2 Auto Photo modes ( Pre-focus and Instant )
    • Manual Photo mode ( Manual Focus/Shutter release )
    • Camera On/Off
    • Timelapse ( Variable interval shutter release )


What it supports:

The following hardware is supported

Flight Controllers:

  • Pixhawk 1
  • Pixhawk 2.1
  • Pixracer
  • APM 2.6
  • APM 2.5
  • DJI Wookong
  • DJI A2
  • DJI A3

– and many others with camera support

R/C radio systems:

  • That interfaces with standard PWM signal (almost any radio system)

Package Includes:

  • 1 x Seagull #REC
  • 4 x Servo cables ( 30cm length )

Specification:

GNSS Signals Supported L1C/A (GPS), L1OF (GLONASS), B1I (BeiDou)
Refresh Rate - Moving Baseline: Up to 4 Hz
- Real Time Kinematic (RTK): 8 Hz
- RAW (Post Processed Kinematic): 10 Hz
- PVT (UBX Binary): 10 Hz
Supply Voltage 3.6V – 16V (5V recommended, do NOT exceed 16V)
Current Draw 25 mA (average)
Input Signal Standard R/C PWM servo signal (1000 – 2000 μs)
Dimensions - Length: 41 mm
- Width: 17.5 mm
- Height: 6.1 mm
Weight 4 grams
