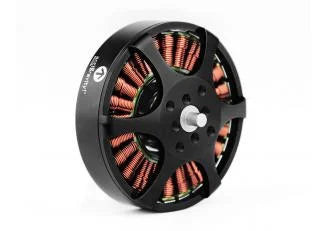

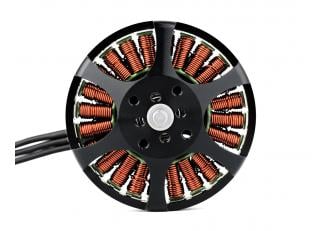

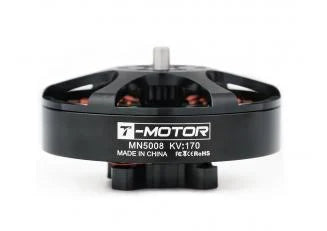

T Motor Antigravity MN5008 KV340

Rs. 10,235.00
Rs. 10,235.00
Write a Review
Earn 5117 Reward Points. Learn More...

Here is only a suggestion: Reward Points function (demo function). To use real Reward Points, you need a 3rd party Shopify App.

Your items may arrive sooner than the estimated delivery date. Ralph Lauren reserves the right to send packages via other shipping methods based on the shipping destination as long as orders will still arrive within the arrival times outlined on RalphLauren.com.

When you choose the Economy delivery option, packages are delivered Monday through Saturday 8 AM to 4:30 PM. Orders sent by Fast, 2-Business-Day or Next-Day shipping methods are delivered Monday through Friday from 8 AM to 4:30 PM.

We recommend choosing Fast or Next-Day delivery if you are shipping your package to a business address. You will be asked to provide a telephone number on the shipping page of checkout, which is important in the event the courier needs to arrange a delivery time with you.

You will also be asked to provide an email address, to which we will send confirmation that your order was placed.

Add to wishlist Added to wishlist
Order in the next
to get it by
Ask us any Question
Details

Properties:

  1. Ultra light, high efficiency
  2. Devote to long flight
  3. Quadcopter of 4kg, 60mins flight time
  4. Run smoothly, low cogging torque

Full- Description

 This is amazing T MOTOR ANTIGRAVITY MN5008 KV340  offers some of the highest levels of quality and performance in a motor to date.

We at Vinatayskytech.in believe in supplying quality products to the makers who really are struggling hard to build something that is best in performance while assuring the long life of the design by using the branded components.

Lightweight Antigravity 5008 type T-motors are available with an Ultra-thin design, processed by high strength aluminum. The use of a single thick copper wire winding reduces the energy dissipation of the motor. Antigravity T Motor contains a unique cooling design so that ventilation of winding is well, perfect dynamic test make motor easier to speed up and run more stably. Antigravity Tiger motor has excellent assembling workmanship with great rotor dynamic balance.

Dimensions:

T-Motor 1630315409115055

Package Includes:

  • 1 x T Motor Antigravity MN5008 KV340

        Specification:

        Motor Size

        55.6*32mm
        Stator

        Imported silicon steel sheet; Anti-rust treatment; 180°C high temperature-resisting coatings
        Configuration

        24N28P
        Shaft Diameter

        IN: 6mm
        Bearing

        Imported 696ZZ
        Magnet Level

        150°C high temperature resistance: Level E
        Lead Cable

        80mm
        Copper Wire

        180°C high temperature resistance: Level H
        Coil Insulation Test

        500V
        Centrifugal Cooling Design

        YES
        Rotor Dynamic Balance Standard

        ≤15mg
        Motor Dynamic Balance Standard

        ≤10mg
        IP

        IP35
        Others Technical Details

        KV: 340
        Idle Current (22V): 0.9A
        Peak Current (180s): 35A
        Max. Power (180s): 760W
        Rated Voltage (Lipo): 6S
        ESC Recommendation: AIR 40A
        Propeller Recommendation: P17-18"
        Motor Weight (Incl. Cable): 135g
        Internal Resistance: 55mQ
        Shipping Weight 0.198 kg
        Shipping Dimensions 11 × 9 × 4 cm
