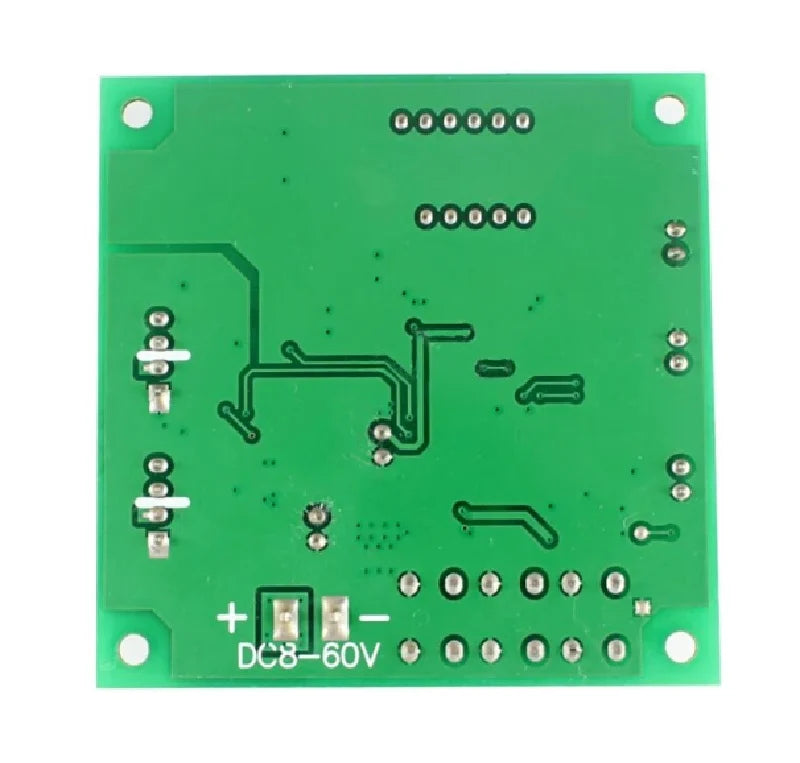

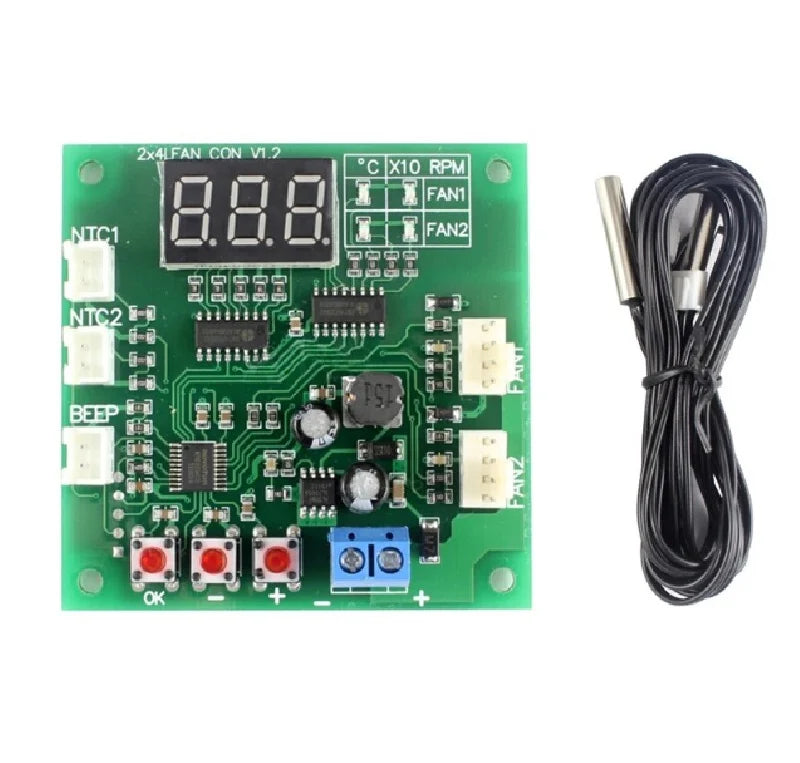

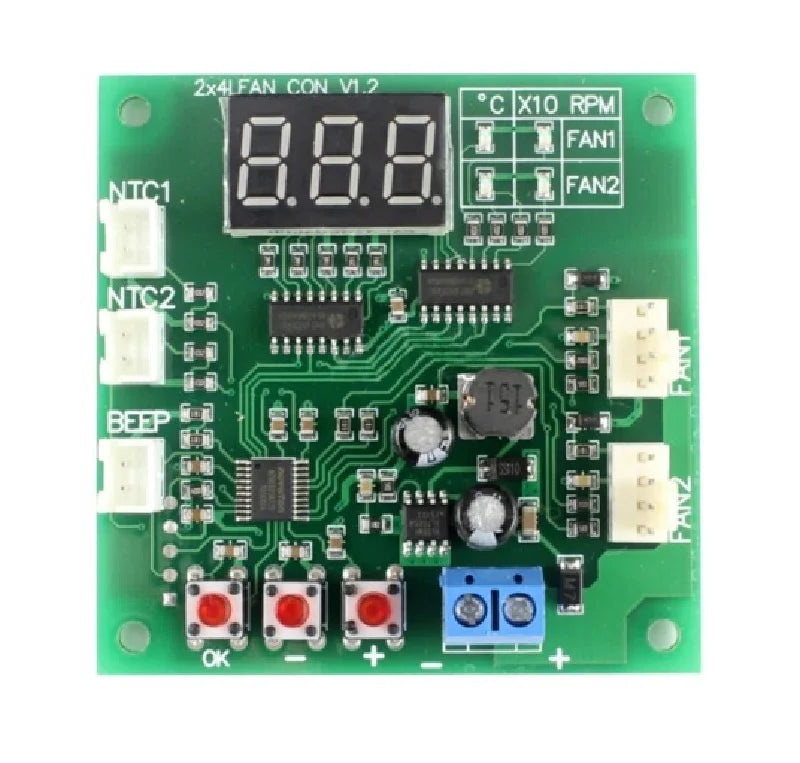

2CH 4 Wire LED Digital PWM Motor Speed Controller Fan Temperature Controller Buzzer Alarm DC 12V 24V 48V with 50CM Cable

Rs. 659.00
Rs. 659.00
Write a Review
Earn 329 Reward Points. Learn More...

Here is only a suggestion: Reward Points function (demo function). To use real Reward Points, you need a 3rd party Shopify App.

Your items may arrive sooner than the estimated delivery date. Ralph Lauren reserves the right to send packages via other shipping methods based on the shipping destination as long as orders will still arrive within the arrival times outlined on RalphLauren.com.

When you choose the Economy delivery option, packages are delivered Monday through Saturday 8 AM to 4:30 PM. Orders sent by Fast, 2-Business-Day or Next-Day shipping methods are delivered Monday through Friday from 8 AM to 4:30 PM.

We recommend choosing Fast or Next-Day delivery if you are shipping your package to a business address. You will be asked to provide a telephone number on the shipping page of checkout, which is important in the event the courier needs to arrange a delivery time with you.

You will also be asked to provide an email address, to which we will send confirmation that your order was placed.

Add to wishlist Added to wishlist
Order in the next
to get it by
Ask us any Question
Details

Properties:

  1. Motor Type: DC motor
  2. Operating voltage range: DC8-60V
  3. Cable length: 50cm
  4. four-wire PWM fan controller

Full- Description

The 2CH 4 Wire LED Digital PWM Motor Speed Controller is a versatile device designed for DC motors operating at 12V, 24V, or 48V. Featuring a 4-wire configuration and a 50CM cable, it enables precise control of motor speed using pulse-width modulation (PWM). Additionally, it includes a temperature controller with an LED display and a buzzer alarm for effective monitoring and feedback. Ideal for fan applications.

 Note: This is a four-wire PWM fan controller, which can only control fans that comply with Intel’s four-wire fan specifications (most 12-48V four-wire fans are supported), and cannot control 2-3-wire fans and cannot be completely turned off. Turn off the fan.

Features:

  1. DC8-60V ultra-wide working voltage range (here refers to that the control board can work within this voltage range. In actual work, the controller power supply and the fan are together, so the power supply must be by the fan power supply requirements, otherwise the fan will be damaged).
  2.  Two-channel independent temperature control, which alternately displays the temperature of the two channels (-9.9°C to 70.1°C, error <1°C) and fan speed (resolution 10rpm, maximum display 999*10rpm, always display 999 after exceeding).
  3. The minimum speed of the fan and the temperature control zone are set by buttons, which are flexible in control and have a large setting range. The program is saved after setting.
  4. The stop alarm function of the switch can be set (the external AC buzzer beeps for a long time, the default is off)
  5. Control ability: Not limited by the fan current, but the maximum current of the fan interface pins on the board should not exceed 3A. If you use a larger current fan, please connect the fan power cord directly to the main power supply.
  6. Control output range: 10%-100% (this is only the signal output range, the actual situation depends on the fan performance)
  7. Rotation speed measurement: 10-9990 rpm, greater than this speed will always display 999, resolution 10 rpm, display unit *10 rpm (speed measurement is based on the common 2-pole signal fan design, most fans are 2-pole signals)
  8. Stop alarm speed: lower than 375rpm
  9. Circuit size: 65mm*65mm*15mm; center distance of positioning hole 56mm*56mm; diameter 3.2mm

Package Includes:

  • 1 x 2CH 4 Wire LED Digital PWM Motor Speed Controller Fan Temperature Controller Buzzer Alarm DC 12V 24V 48V with 50CM Cable

      Specification:

      Working Voltage

      DC8-60V
      Working Current

      35mA (12V), 22mA (24V)
      Probes

      NTC 10K B=3950
      Temperature Measuring Range (°C)

      9.9°C to 99.9°C
      Temperature Control Range (°C)

      Acceleration temperature 5-94℃, full speed temperature 10-99℃
      Shipping Weight 0.035 kg
      Shipping Dimensions 10 × 9 × 1.5 cm
      Cable length (mm)

      100, 75
      Output Connector

      3.5 Gold Connectors (Female)
      Size(mm)

      60x25x8
      Weight (g):

      33
      Shipping Weight 0.053 kg
      Shipping Dimensions 22 × 13 × 4 cm
