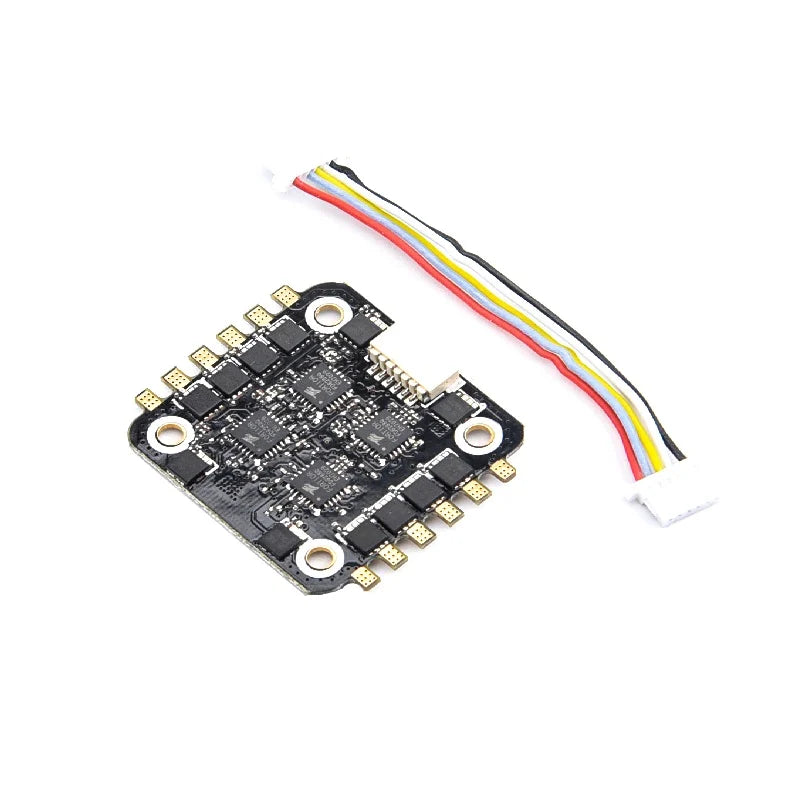

BLHELI 4 IN 1 15A 2-4S ESC

Regular price
Rs. 1,839.00
Sale price
Rs. 1,839.00
Regular price
Earn 919 Reward Points. Learn More...
Order in the next
to get it by
Details

Properties:

  1. Type: 4 in 1
  2. Current: 15A
  3. Peak Current (10s): 20A
  4. BEC: 5V

Full- Description

In the market there manly 3 type of ESC are available 1) Oneshort ESC, 2) Opto ESC, 3) D-Short ESC. So this is D-Short ESC this best drone flight controller for your drone project it gives power to BLDC motor to gain quality of  speed, It use BLHeli technology. D-Shot is a protocol that flight controllers use for communicating with ESCs. It stands for ‘Digital Shot’. It is a new digital communication protocol developed by Flyduino in collaboration with Beta flight as an alternative to Oneshot and Multishot. Oneshot and Multishot (and standard PWM) all use analogue signals This is the fastest ESC protocol among all the above with a maximum frequency of 32 kHz. It is 10 times faster than Oneshot125

Electronic speed controllers (ESCs) are devices that allow drone flight controllers to control and adjust the speed of the aircraft’s electric motors. A signal from the flight controller causes the ESC to raise or lower the voltage to the motor as required, thus changing the speed of the propeller, It’s helps prevent a vehicle from skidding – and the driver from losing control of his or her vehicle – when turning a corner, braking sharply or making a sudden maneuver. ESC technology automatically activates the brakes to help steer the vehicle in the right direction

Applications:

  1. Electric cars.
  2. Electric bicycles.
  3. Electric aircraft.
  4. Cars.
  5. Helicopters.
  6. Airplanes.
  7. Boats.
  8. Quadcopters.

Features:

  1. Small size: 20x20mm mounting holes
  2. New BusyBee2 MCU at 48MHz, up to 500k eRPM support
  3. Improved firmware using BLHeliS
  4. Hardware PWM driver at 36KHz
  5. Supports Oneshot125 (125-250us), Oneshot42(41.7-83.3us) and Multishot (5-25us). Auto-detection. DSHOT compatible
  6. Ultra Lightweight, and compact size
  7. Adaptive timing, compatible with a wide range of motors and Kv
  8. Synchronous rectification technology adds efficiency, damped light
  9. Powerful regenerative braking / active braking.
  10. 2-3s LiPo battery compatible

Package Includes:

  • 1 x BLHELI 4 IN 1 15A 2-4S ESC

Specification:

Type

4 in 1

Current

15A

Peak Current (10s)

20A

BEC

5V

Cell

2-4s

Lipo

2-3S

Programming

YES

Weight

3.2g

Size (PCB)

27mm x 27mm

M3 Mounting hole Dimensions

20mm x 20mm
