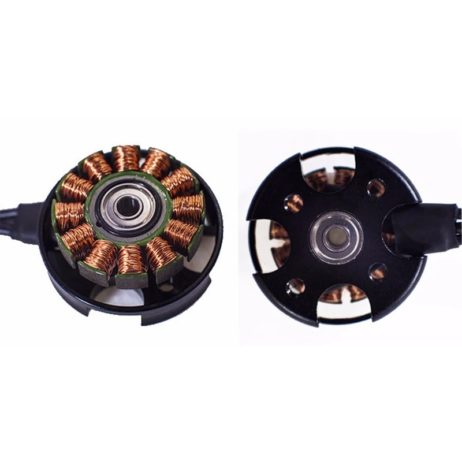

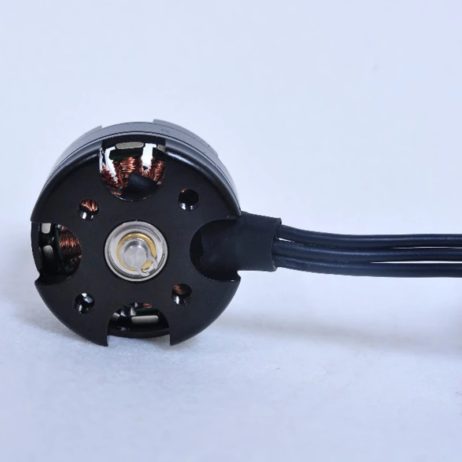

Brushless Motor MT2204 2300KV CW

Regular price
Rs. 645.00
Sale price
Rs. 645.00
Regular price
Earn 322 Reward Points. Learn More...
Order in the next
to get it by
Details

Properties:

  1. Battery: 2~4 Cell /7.4~14.8V
  2. RPM: 910kv
  3. Max current: 25.5A
  4. No load current: 1.5A
  5. Max power: 370W
  6. Internal resistance: 0.063 ohm
  7. Weight: 102g (including connectors)
  8. Diameter of shaft: 5mm
  9. Dimensions: 35x36m
  10. Prop size: 7.4V/12×5 14.8V/10×7
  11. Max thrust: 1050g

Full- Description

The Brushless Motor MT2204 2300KV CW is designed with one thing in mind – maximizing multirotor performance!

The new MT2204 2300KV is the new standard in Multirotor performance. Each motor is built for a specific type/application allowing for further refinement and efficiency/power to be optimized.

Built with the highest quality components from Japan bearings to N45SH magnets and 0.2mm laminations, 180deg oxygen-free copper wire0.005g balancing, the perfect wind laid down. The MT2204-2300KV Multi-Rotor Motor is 100% QC approved, and then the design of each motor is also evaluated for their type of application and including everything from their mounting to the prop type adapters are taken into consideration.

The lower motor frame is chamfered for easy fitment on tighter frames and has plenty of height for mounting hardware to winding clearance.

Multistar Elite is unmatched in quality and value, and the performance speaks for itself. It can be paired with Orange 3S Premium Li-PO and Orange Series HD 5″ Propeller for a unique multirotor flight experience.

If you are wandering to build a drone and don’t know what will be the best motor for you then worry no more, we have got your back. At Robu, we have everything for you to get started with your drone project.


This MT2204-2300KV Multi-Rotor Motor is available in CW/CCW flavors with matching bullet hardware. For CCW motor, Click here

To Explore more Drone motors, Click here
To Explore Various kinds of Propellers, Click here
To Explore Various kinds of ESC’s, Click here


Features :

  1. Equips high-quality Japan Bearings for smooth operation.
  2. It has N45SH Magnets for long life.
  3. Designed with 2mm Laminations for best operational characteristics.
  4. 180deg oxygen-free Copper wire makes them more durable in class.
  5. Shows 0.005g Or better balancing.
  6. Perfect lay-down windings.

Package Includes :

  • 1 x MT2204 2300KV CW Brushless Motor
  • 1 x Compatible Allen Screw-8pcs

    Specification:

    Motor

    Brushless Motor MT2204 2300KV CW

    Wire material

    Copper

    Shipping Weight 0.036 kg
    Shipping Dimensions 9 × 7 × 3 cm
