Dys D3536-5 1450KV Bldc Motor

Rs. 1,482.00
Rs. 1,482.00
Write a Review
Earn 741 Reward Points. Learn More...

Here is only a suggestion: Reward Points function (demo function). To use real Reward Points, you need a 3rd party Shopify App.

Your items may arrive sooner than the estimated delivery date. Ralph Lauren reserves the right to send packages via other shipping methods based on the shipping destination as long as orders will still arrive within the arrival times outlined on RalphLauren.com.

When you choose the Economy delivery option, packages are delivered Monday through Saturday 8 AM to 4:30 PM. Orders sent by Fast, 2-Business-Day or Next-Day shipping methods are delivered Monday through Friday from 8 AM to 4:30 PM.

We recommend choosing Fast or Next-Day delivery if you are shipping your package to a business address. You will be asked to provide a telephone number on the shipping page of checkout, which is important in the event the courier needs to arrange a delivery time with you.

You will also be asked to provide an email address, to which we will send confirmation that your order was placed.

Add to wishlist Added to wishlist
Order in the next
to get it by
Ask us any Question
Details

Properties:

  1. Battery: 2~4 Cell /7.4~14.8V
  2. RPM: 1450kv
  3. Max current: 45A
  4. No-load current: 3.5A
  5. Max power: 655W
  6. Internal resistance: 0.023 ohm
  7. Weight: 102g (including connectors)
  8. Diameter of shaft: 5mm
  9. Dimensions: 35x36m
  10. Prop size: 7.4V/9×6 14.8V/8×4
  11. Max thrust: 1380g
  12. Pole Count: 12

Full- Description:

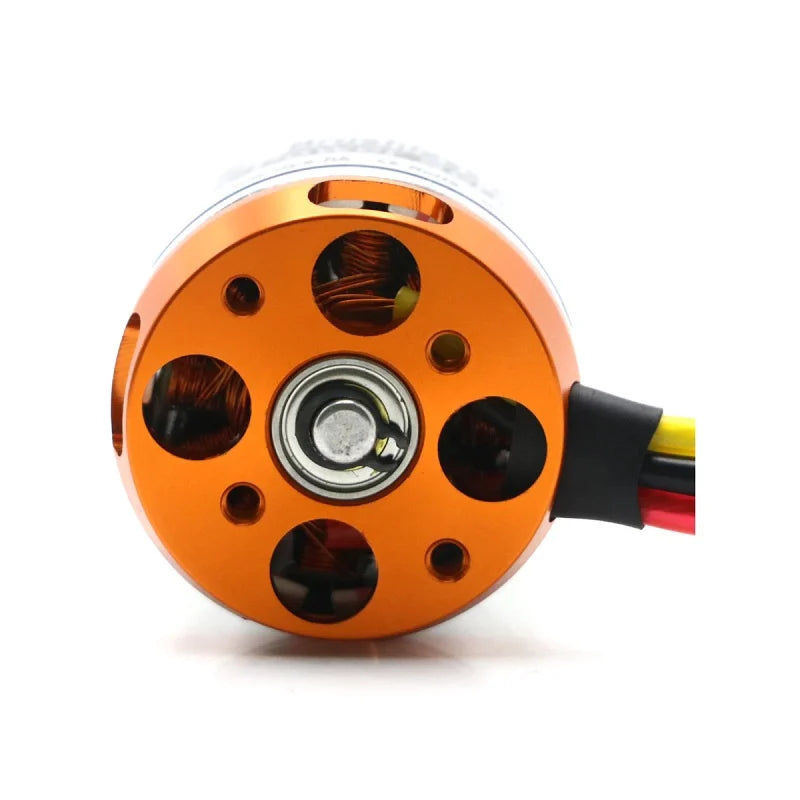

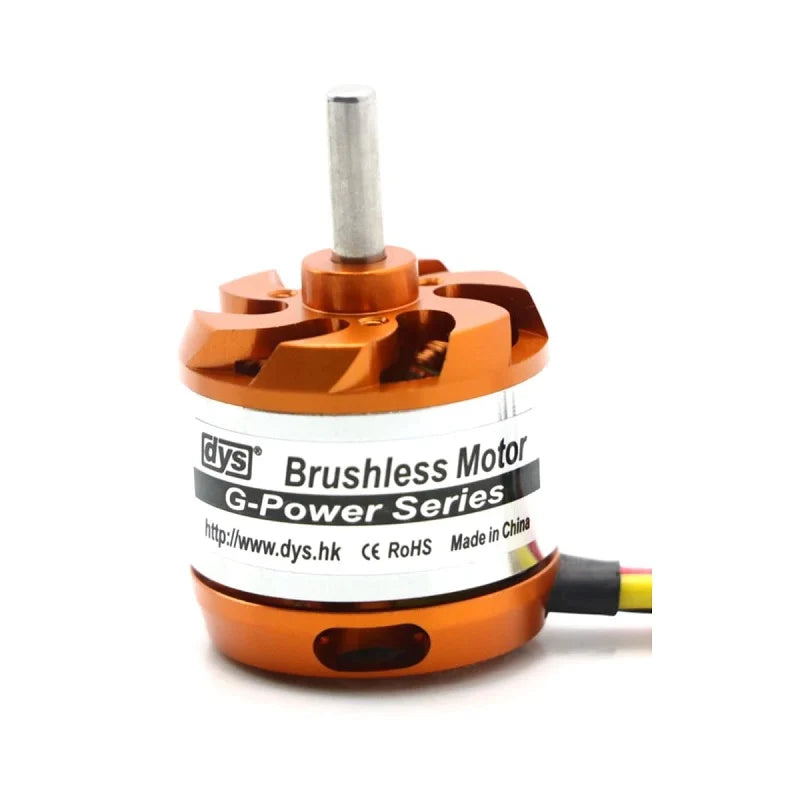

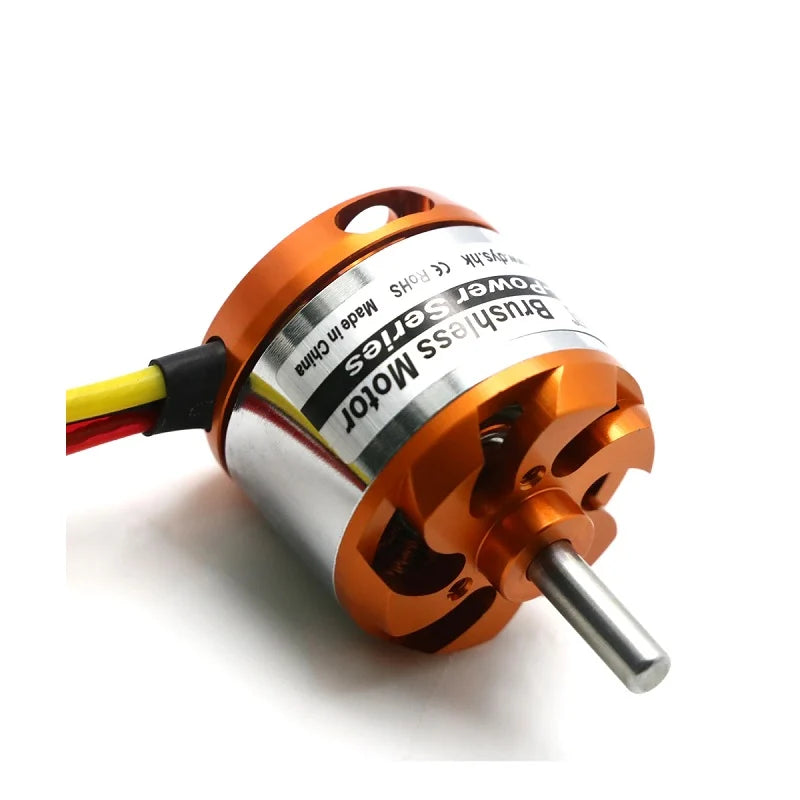

This is a DYS D3536-5 1450KV BLDC Motor.

This DYS High-Quality D3536-5 1450KV brushless outrunner motor specifically made to power Quadcopters and Multirotors. It is a 1450kV motor. It provides high performance, superpower, and brilliant efficiency. These motors are perfect for medium size quadcopters with 8 inches to 10-inch propellers.

The motor comes with 3mm banana male connector attached which can be directly connected with 30A ESC without any soldering requirement

With a 3S LiPo battery, 30A ESC, and high efficiency 10″ propellers, these motors provide up to 1380gms of thrust each. Using 4 of these motors on a quadcopter with orange propellers will give you a total of 3.9 kg thrust! Use this to build powerful and efficient quadcopters.

This is a low price and excellent quality Brushless Motor.  It comes with Bullet Connectors already soldered.

APPLICATION :
  • FPV Racing Drones
  • Quadcopters
  • Multirotors
  • RC Airplanes
  • UAV

Features:

  1. The steel design is capable of withstanding competitive conditions.
  2. Lightweight design makes them suitable for a wide range of Quadcopter and Hexacopter Frames.
  3. Compact size.
  4. Offers great performance and value for money.
  5. Smooth throttle response for best RC experience.

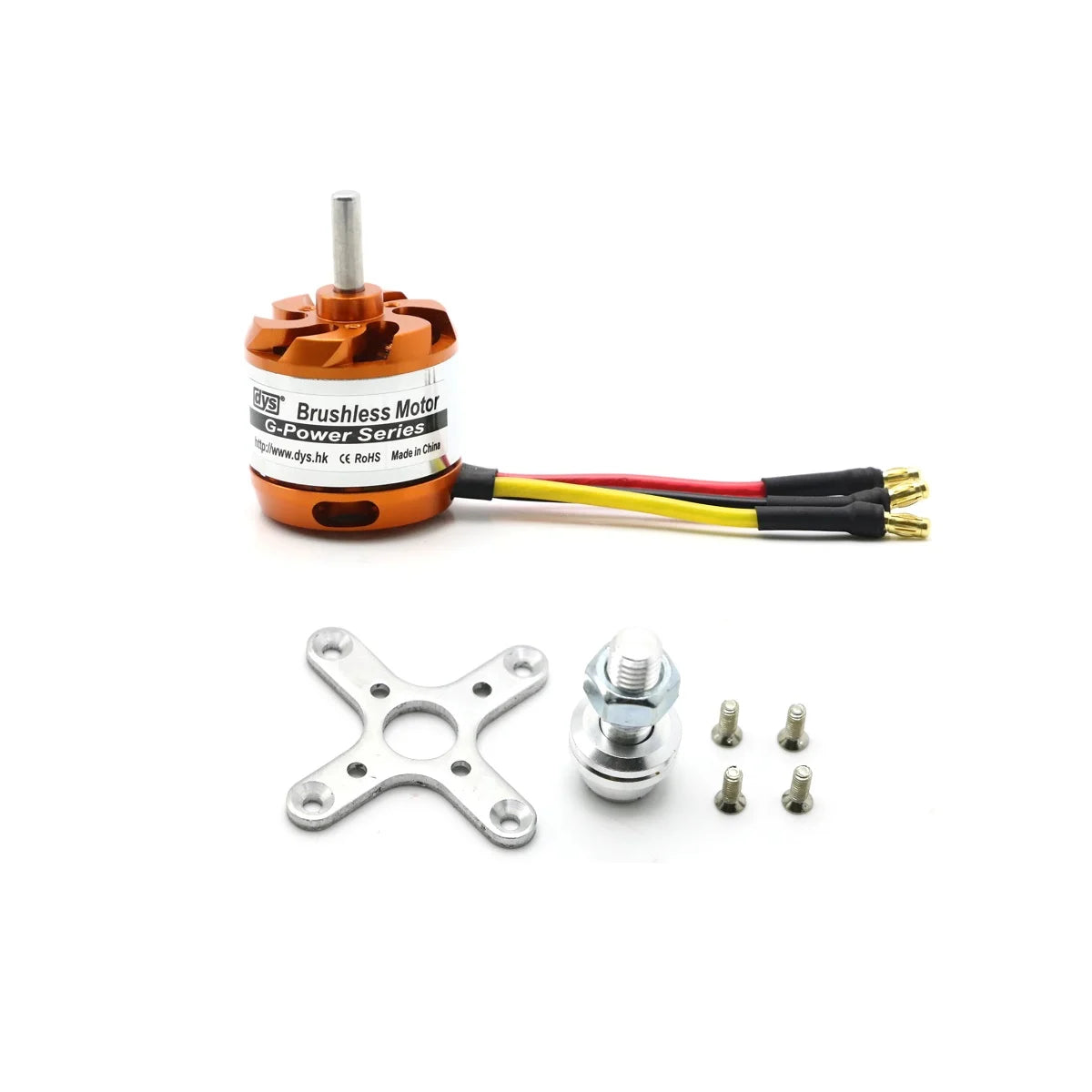

Package Included:

  • 1 x DYS D3536-5 1450KV Outrunner Brushless Drone Motor
  • 1 x Prop Adapter
  • 1 x A Motor Holder (X-type) and set of screws
  • 1 x User Manual

        Specification:

        Shaft Diameter (mm)

        5
        Maximum Power (W)

        655
        Poles

        12
        Maximum Thrust (gm)

        1380
        Compatible Propellers Size (inch)

        9×6/8×4
        Required ESC (A)

        30-40, 50A
        Volts

        7.4 ~ 15v
        Shipping Weight 0.135 kg
        Shipping Dimensions 8 × 5 × 5 cm
