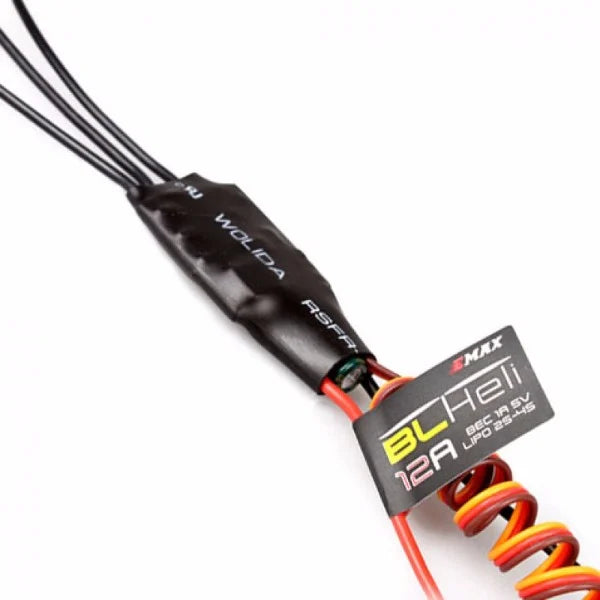

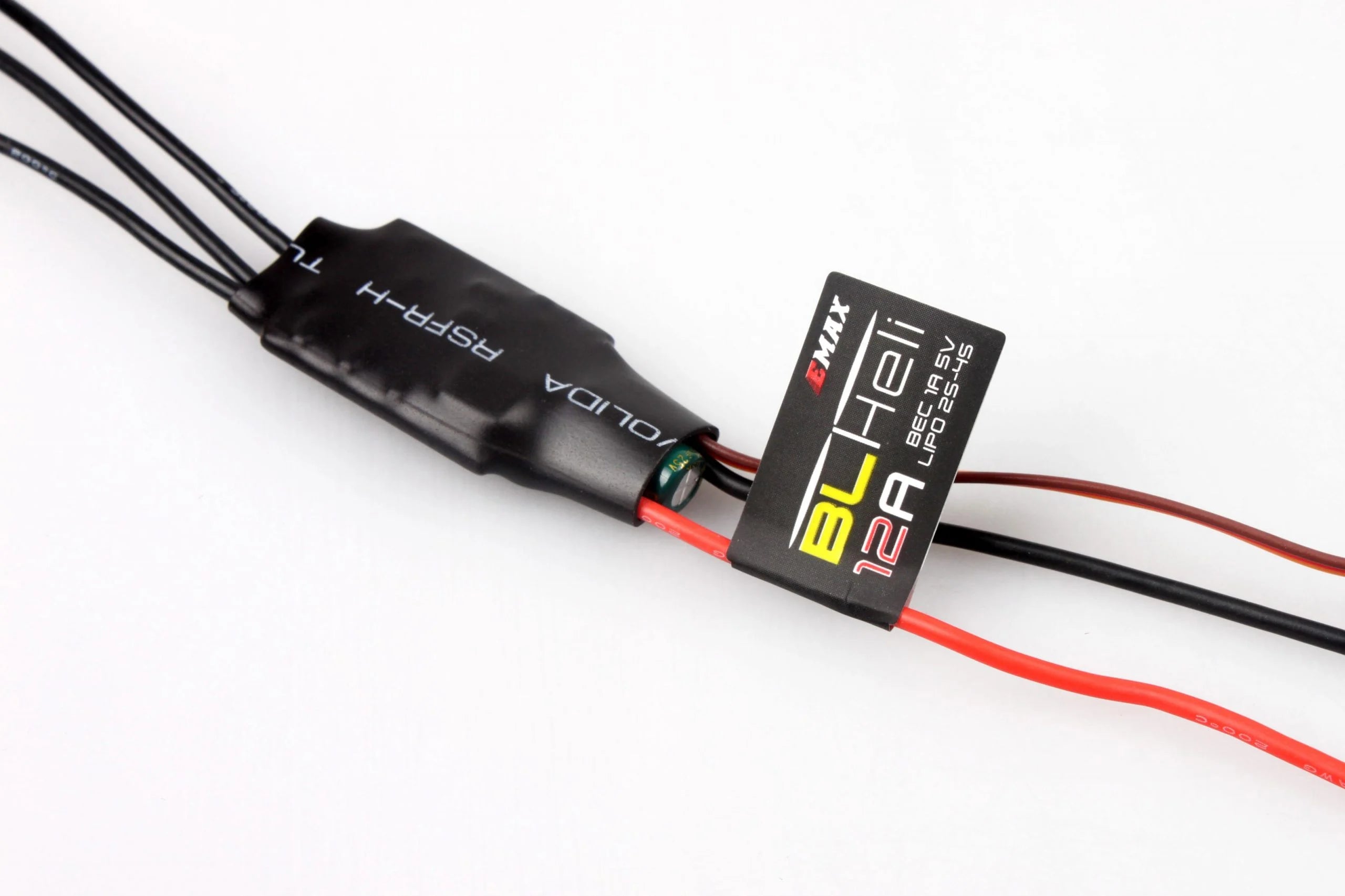

Emax BLHeli Series 12A ESC with Oneshot (Original)

Rs. 999.00
Rs. 999.00
Write a Review
Earn 499 Reward Points. Learn More...

Here is only a suggestion: Reward Points function (demo function). To use real Reward Points, you need a 3rd party Shopify App.

Your items may arrive sooner than the estimated delivery date. Ralph Lauren reserves the right to send packages via other shipping methods based on the shipping destination as long as orders will still arrive within the arrival times outlined on RalphLauren.com.

When you choose the Economy delivery option, packages are delivered Monday through Saturday 8 AM to 4:30 PM. Orders sent by Fast, 2-Business-Day or Next-Day shipping methods are delivered Monday through Friday from 8 AM to 4:30 PM.

We recommend choosing Fast or Next-Day delivery if you are shipping your package to a business address. You will be asked to provide a telephone number on the shipping page of checkout, which is important in the event the courier needs to arrange a delivery time with you.

You will also be asked to provide an email address, to which we will send confirmation that your order was placed.

Add to wishlist Added to wishlist
Order in the next
to get it by
Ask us any Question
Details

Properties:

  1. Constant Current: 12A.
  2. ESC Type: Brushless.
  3. Burst Current: 15A.
  4. Battery: 2-4S Lipo.
  5. BEC: 5 V / 1A.
  6. Support: Oneshot 125 Protocol.

Full- Description

Emax BLHeli Series 12A ESC with Oneshot Based on BLHeli firmware further optimized to the perfect drive performance. It has Low-voltage protection, over-heat protection, and throttle signal loss protection.

The ESC comes with a Separate power supply for MCU and BEC, enhancing the ESC’s ability to eliminate magnetic interference. The Parameter of this ESC can be set via a program card or transmitter. Throttle range can be set to be compatible with different receivers. Equipped with built-in linear BEC or switch BEC. Max speed: 210,000 rpm for 2-pole, 70,000 rpm for 6-pole, 35,000 rpm for 12-pole.

How to do ESC Connection and Calibration Click here.

100% Guaranteed Original & Genuine Emax Product.

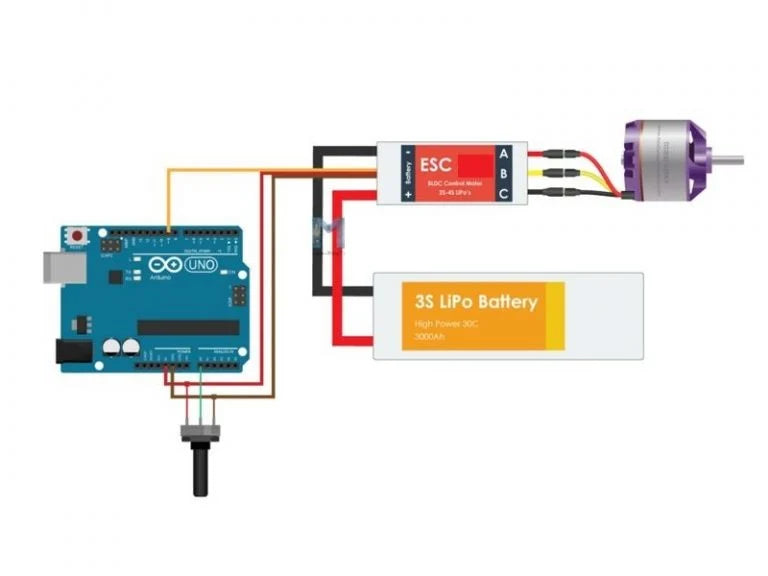

Connection:

Features :

  1. Uses the authentic Electronic components to ensure high quality and enhance the current endurance ability of the ESC.
  2. Based on BLHeli firmware, Optimized for high performance with great linearity and much quicker throttle response.
  3. Specially designed for multi-rotors and compatible with fixed-wing aircraft and helicopters.
  4. The rotational direction of the motor is Programmable i.e. Normal, reverse or bi-directional.
  5. All parameters can be programmed via using a programming card or a transmitter
  6. Multiple protection features including Low-voltage cut-off protection/ over-heat protection.
  7. Alarm to help you find the device: keep the throttle on FULL OFF position for a while, the ESC will beep
  8. Throttle range can be configured and fully compatible with all receivers, providing smooth; linear and precise throttle response.
  9. One-Shot Available.

Package Includes:

  • 1 x Emax BLHeli Series 12A ESC with Oneshot (Original).

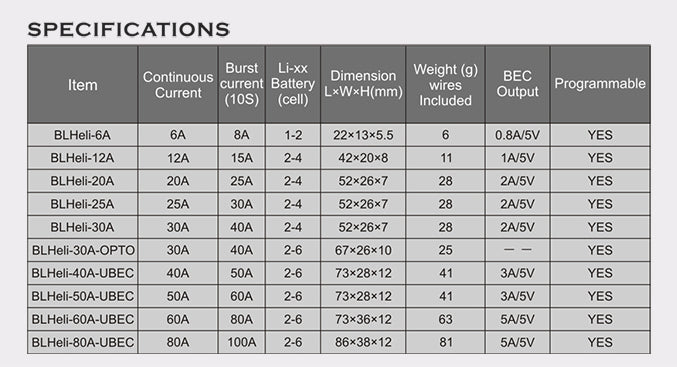

Specification:

Model

Emax BLHeli Series 12A ESC
Burst Current (A)

15
Constant Current (A)

12
BEC

Yes (5V/1A)
Suitable Lipo Batteries

2 ~ 4S
Color:

Black
Application

Multi-roter, Rc Plane etc.
Length (mm):

44
Width (mm):

20
Height (mm):

8
Weight (g):

15
Shipping Weight 0.018 kg
Shipping Dimensions 8 × 8 × 4 cm
