Emax ECOII-2004-3000KV Brushless Motor

Regular price
Rs. 1,249.00
Sale price
Rs. 1,249.00
Regular price
Earn 624 Reward Points. Learn More...
Order in the next
to get it by
Details

Properties:

  1. Brand: EMAX
  2. Model: ECOII-2004
  3. KV: 3000
  4. Cells: 4-6S
  5. Maximum Thrust: 1170g(on4s)
  6. Peak current (6S): 32A

Full- Description

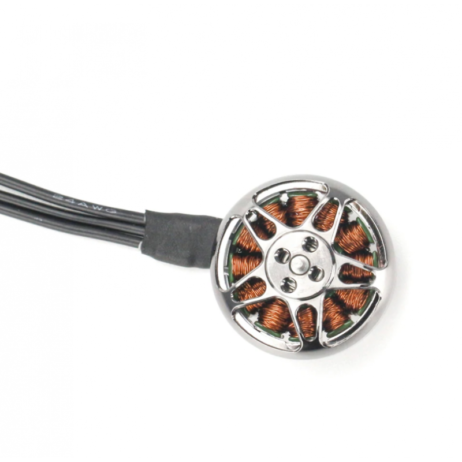

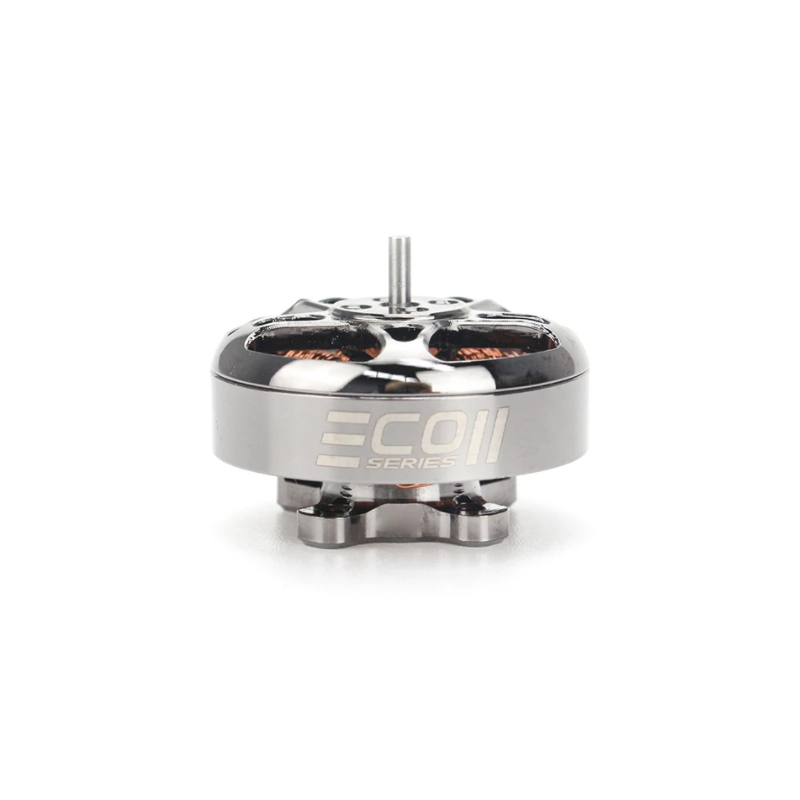

This is a Emax ECOII-2004-3000KV Brushless Motor.

The engineers at EMAX are always seeking ways to design the ultimate motor with brushless technology. In their efforts, they produced the ECO II Series, a new line of brushless motors further improving on the performance and durability while retaining the same affordability. Redesigned from the ground up, the ECO II boasts an all-new architecture. With a more rounded design paired together with thicker reinforcements, maximum durability is achieved. Finished with a reflective surface, the ECO II offers a sleek modern design destined to satisfy the need for both aesthetics and durability. In order to improve the performance from its predecessor, the ECO II utilizes N52SH arc magnets over prior N48 magnets, allowing more powerful throttle response and higher RPMs to be achieved. More torque and thrust is generated, allowing pilots the flexibility to comfortably meet the demands of any racetrack or flight situation. The ECO II Series marks the next evolution in affordable brushless motor technology, bringing in a new era of performance for everyone.


Features:

  1. NSK precision bearing
  2. Base casing : Al 7075
  3. Rotor : N52SH arc magnets
  4. Steel shaft
  5. 12*12mm hole pattern
  6. Multi-strand winding
  7. 120mm 24 AWG silicone wire

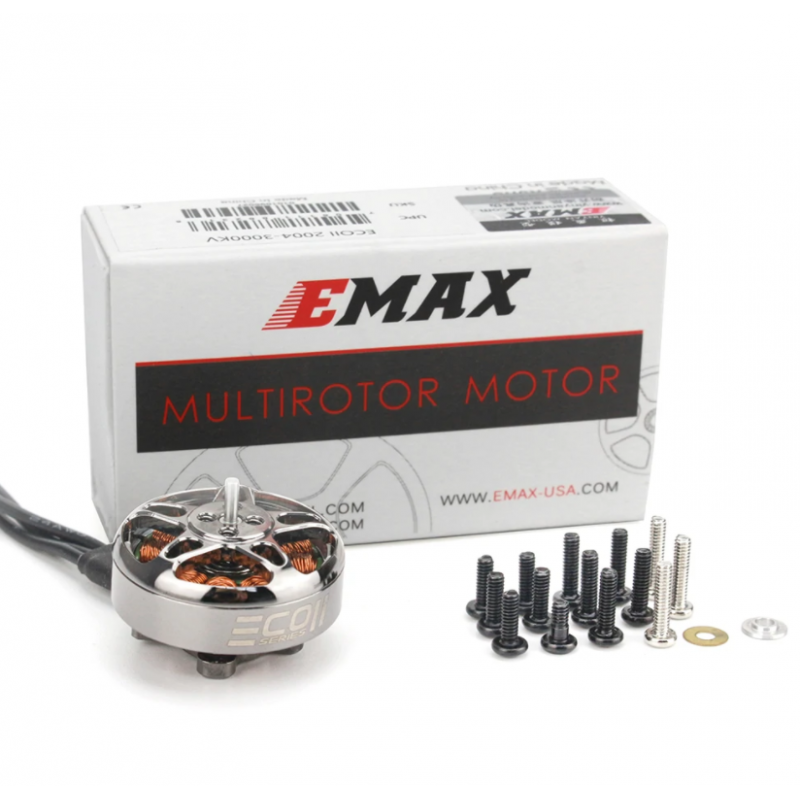

Package Include:

  • 5 X M2 x 6mm Screw
  • 5 X M2 x 7.5mm Screw
  • 3 X M2 x 8.5mm Screw
  • 1 X Washer and screw for shaft

            Specification:

            Motor KV

            3000 RPM

            Framework

            12N14P

            Cells

            4-6S

            Maximum Thrust (gm)

            1170g(on4s)

            Peak Current (A)

            32A

            Compatible Propellers Size (inch)

            4"-5"

            Bearing Shaft

            3mm

            Bolt Pattern

            M2 (12x12mm)

            Prop adapter Shaft Thread

            1.5mm

            Length (mm):

            19.2mm

            Diameter (mm):

            24.7mm

            Shipping Weight 0.03 kg
            Shipping Dimensions 7 × 4 × 2 cm
