Emax ECOII-2207-1900KV Brushless Motor

Regular price
Rs. 1,499.00
Sale price
Rs. 1,499.00
Regular price
Earn 749 Reward Points. Learn More...
Order in the next
to get it by
Details

Properties:

  1. Model Emax ECOII-2207-1900KV
  2. KV 1900
  3. Framework 12n14p
  4. No. of Cells 3-6s
  5. Maximum Thrust 2020g(on 6s)
  6. Precision bearing

Full- Description

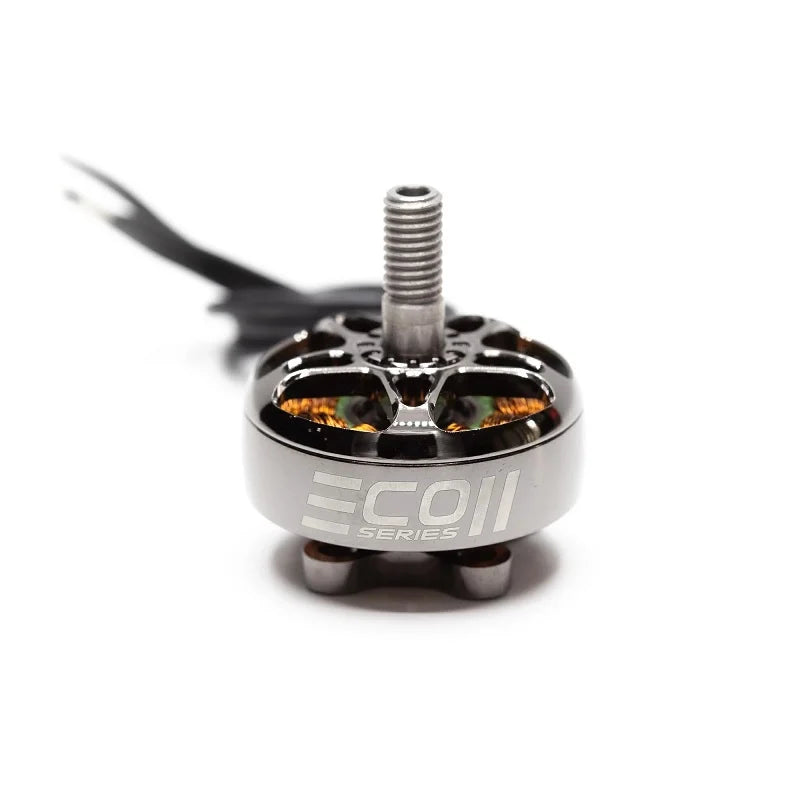

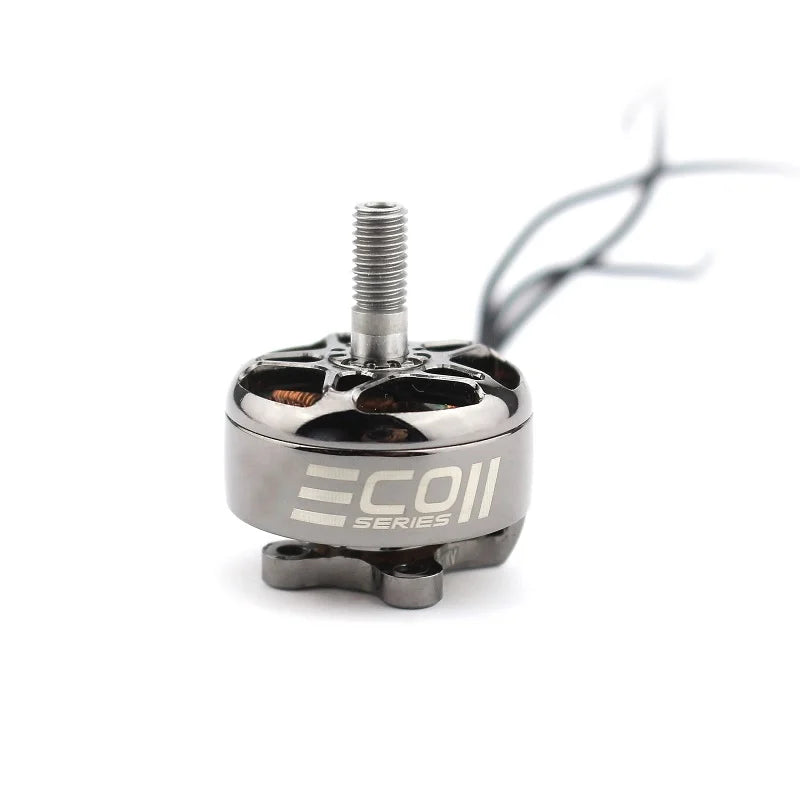

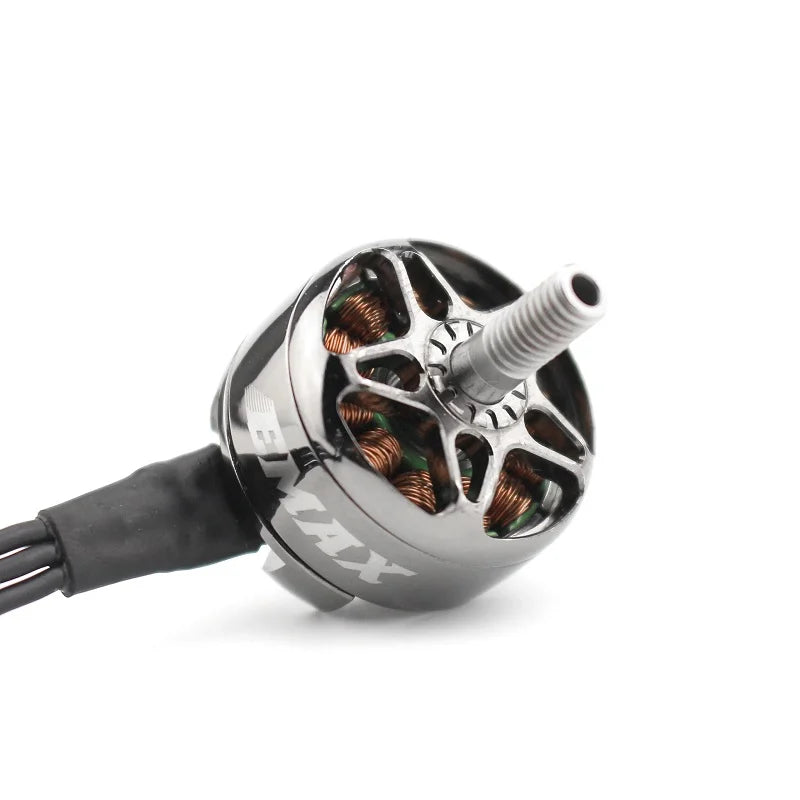

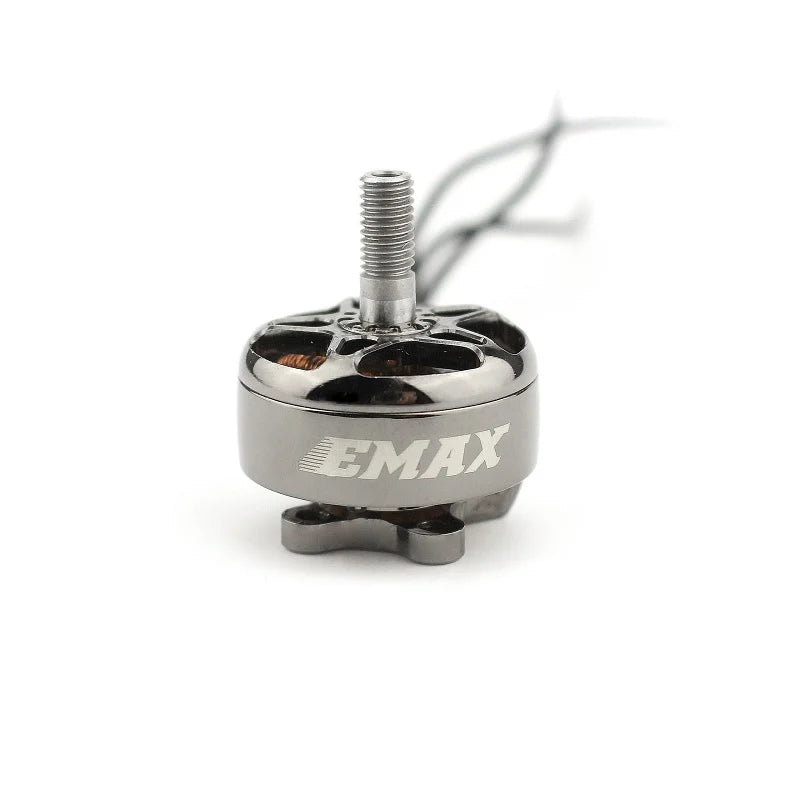

This is a Emax ECOII-2207-1900KV Brushless Motor.

The engineers at Emax are always seeking ways to design the ultimate motor with brushless technology. In their efforts, they produced the ECO II Series, a new line of brushless motors further improved performance and durability while retaining the same affordability. Redesigned from the ground up, the ECO II boasts an all-new architecture. With a more rounded design paired together with thicker reinforcements, maximum durability is achieved. Finished with a reflective surface, the ECO II offers a sleek modern design destined to satisfy the need for both aesthetics and durability.

In order to improve the performance of its predecessor, the ECO II utilizes N52SH arc magnets over prior N48 magnets, allowing more powerful throttle response and higher RPMs to be achieved. More torque and thrust are generated, allowing pilots the flexibility to comfortably meet the demands of any racetrack or flight situation. The ECO II Series marks the next evolution in affordable brushless motor technology, bringing in a new era of performance for everyone.


Features:

  1. Precision bearing
  2. Steel shaft
  3. Anodizing
  4. 19 x 19mm hole pattern
  5. Multi-strand winding.

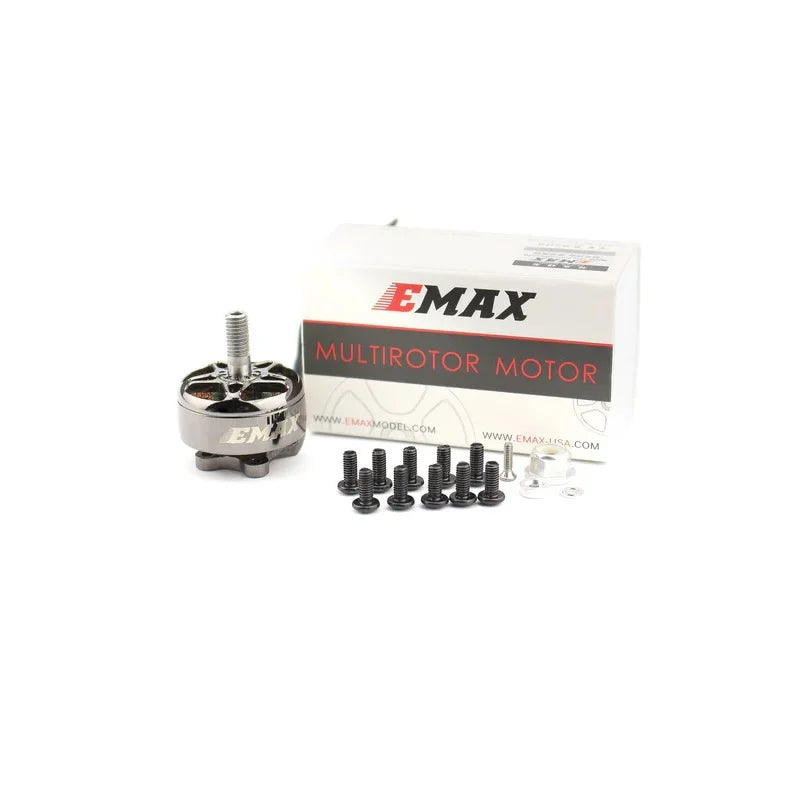

Package Include:

  • 5 x M3 x 8mm Screw
  • 5 x M3 x 7mm screw
  • 5 x M3 x 6mm screw
  • 1 x Aluminium M5 nylock nut
  • 1 x Washer and screw for shaft

Specification:

Model

Emax ECOII-2207-1900KV

KV

1900

Framework

12n14p

Length

33.1mm

Diameter

27.5mm

No. of Cells

3-6s

Maximum Thrust

2020g(on 6s)

Propeller

5″-5.5″

Weight

33.6g (w/o silicone wire)

Propeller adaptor shaft thread

M5

Shipping Weight 0.055 kg
Shipping Dimensions 7 × 4 × 4 cm
