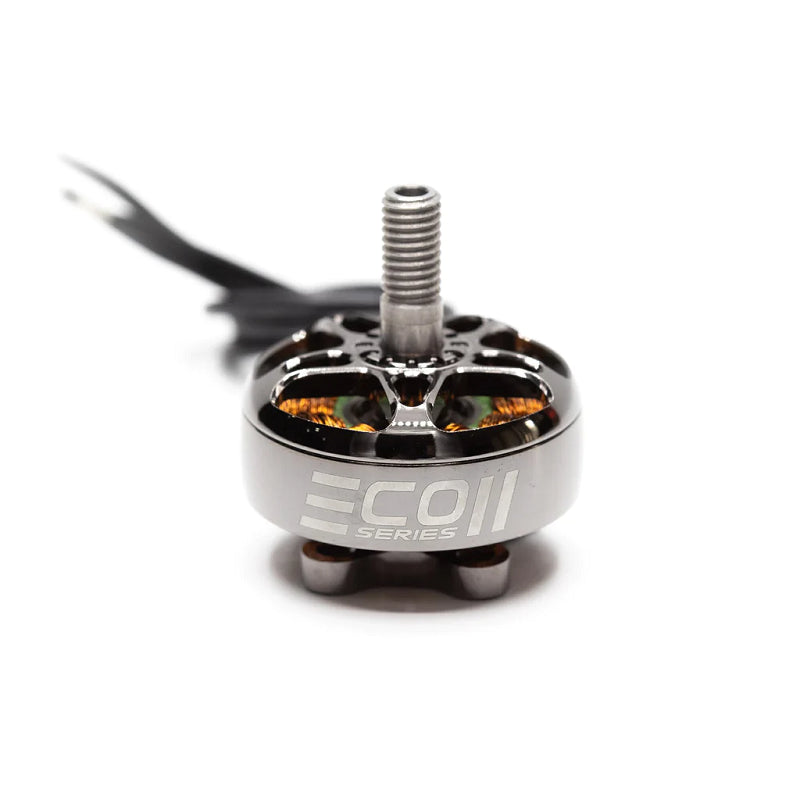

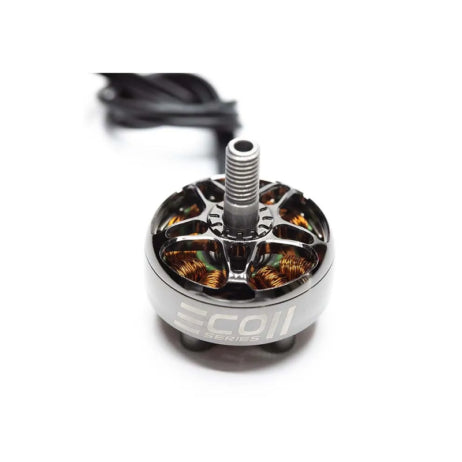

Emax ECOII-2306-1700KV Brushless Motor

Rs. 1,465.00
Rs. 1,465.00
Write a Review
Earn 732 Reward Points. Learn More...

Here is only a suggestion: Reward Points function (demo function). To use real Reward Points, you need a 3rd party Shopify App.

Your items may arrive sooner than the estimated delivery date. Ralph Lauren reserves the right to send packages via other shipping methods based on the shipping destination as long as orders will still arrive within the arrival times outlined on RalphLauren.com.

When you choose the Economy delivery option, packages are delivered Monday through Saturday 8 AM to 4:30 PM. Orders sent by Fast, 2-Business-Day or Next-Day shipping methods are delivered Monday through Friday from 8 AM to 4:30 PM.

We recommend choosing Fast or Next-Day delivery if you are shipping your package to a business address. You will be asked to provide a telephone number on the shipping page of checkout, which is important in the event the courier needs to arrange a delivery time with you.

You will also be asked to provide an email address, to which we will send confirmation that your order was placed.

Add to wishlist Added to wishlist
Order in the next
to get it by
Ask us any Question
Details

Properties:

  1. Model: Emax ECOII-2306-1700KV Brushless Motor
  2. Motor: 1700kv
  3. Length:31.5mm
  4. Diameter: 28mm
  5. No of Cells 3-6s
  6. Max Thrust:5″-5.5″

Full- Description:

The engineers at EMAX are always seeking ways to design the ultimate motor with brushless technology. In their efforts, they produced the ECO II Series, a new line of brushless motors further improving on performance and durability while retaining the same affordability. Redesigned from the ground up, the ECO II boasts an all-new architecture. With a more rounded design paired together with thicker reinforcements, maximum durability is achieved.
Finished with a reflective surface, the ECO II offers a sleek modern design destined to satisfy the need for both aesthetics and durability. In order to improve the performance from its predecessor, the ECO II utilizes N52SH arc magnets over prior N48 magnets, allowing more powerful throttle response and higher RPMs to be achieved. More torque and thrust is generated, allowing pilots the flexibility to comfortably meet the demands of any racetrack or flight situation.

Features:

  1. Precision bearing
  2. Steel shaft
  3. Anodizing

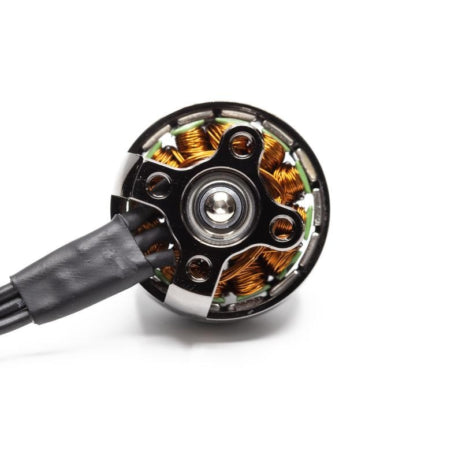

  4. 16*16mm hole pattern
  5. Multi-strand winding .
  6. 120mm 20 AWG silicone wire

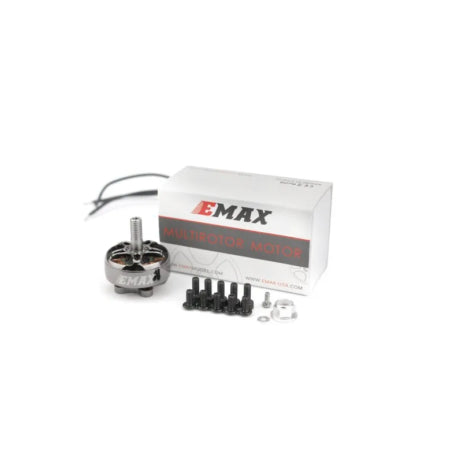

Package Includes:

  • 5 X M3x8mm Screw
  • 5 X M3x7mm Screw
  • 5 X M3x6mm Screw
  • 1 X Aluminium M5 nylock nut
  • 1 X Washer and screw for shaft

Specification:

Motor

1700kv
Framework

12N14P
No. of Cells

3-6S
Prop Adapter Shaft Thread

M5
Thrust Limitation

5"-5.5"
Length (mm):

31.5mm
Diameter (mm):

28mm
Weight (g):

30.4g(w/o silicone wire)
Shipping Weight 0.058 kg
Shipping Dimensions 7 × 4 × 3 cm
