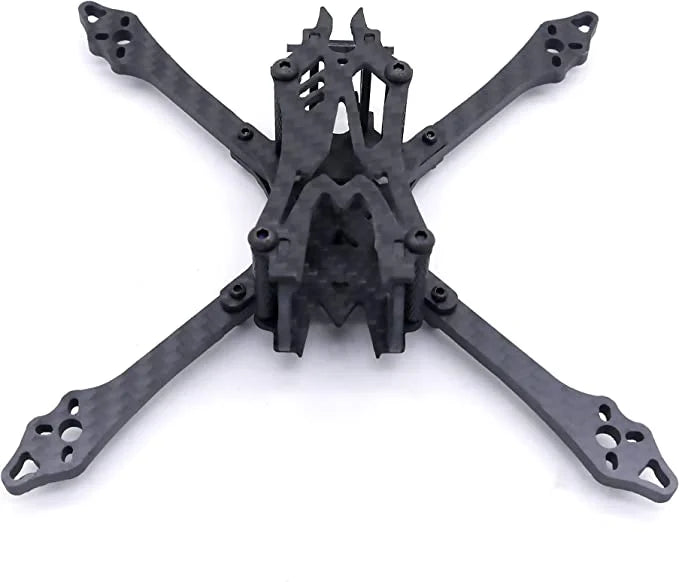

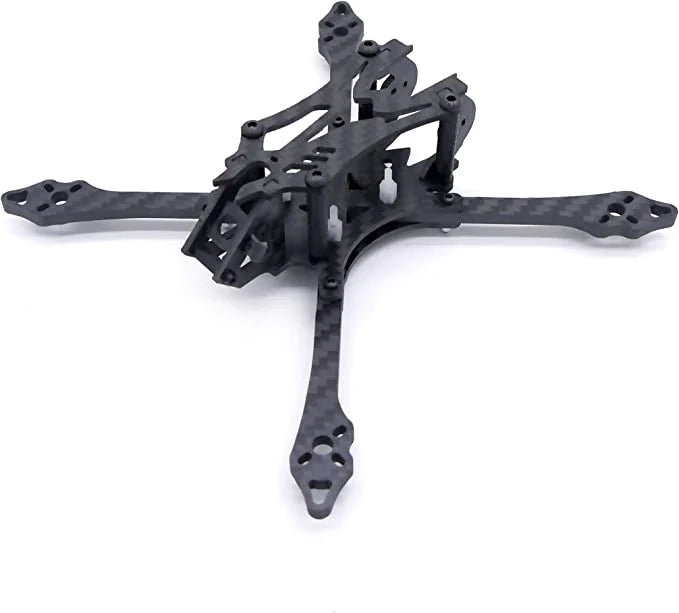

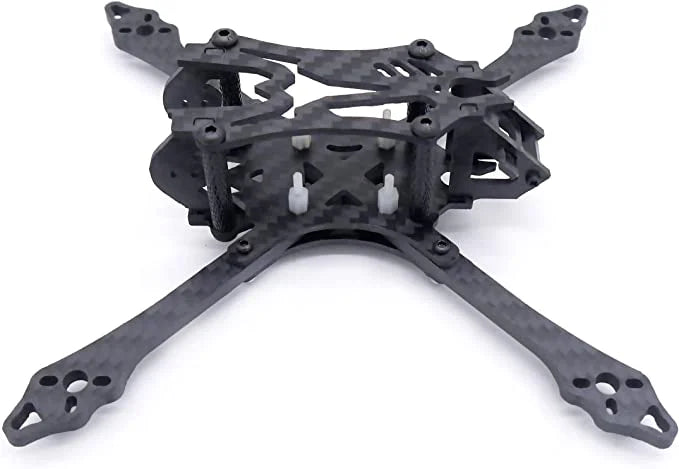

HF150 150mm 3 inch Carbon Fiber Frame

Regular price
Rs. 1,069.00
Sale price
Rs. 1,069.00
Regular price
Earn 534 Reward Points. Learn More...
Order in the next
to get it by
Details

Properties:

  1. Model: HF150
  2. Product: DIY drone frame Kit
  3. Wheelbase: 150mm
  4.  Paddle: 3 inch paddle
  5.  Flight control hole distance: 20x20mm

Full- Description

Made of full carbon fiber, arm thickness 4.0mm, other plates 2.0mm. 3 inch drone frame, weight: 40G,super lightweight. Perfect balance between performance and durability. Support 1306 / 1407 / 1105, 13xx, 14xx series motors (9×12) Simple structure , easily assembled.

A drone frame has two main parts: the body and the arms. The body houses and protects your electronic components including flight controller, 4in1 ESC, FPV camera, VTX etc. Typically it consists of a bottom plate, top plate and some standoffs in between to hold them together. The arms are for installing the motors.


Features :

  1. Quality product
  2. HF150 Model
  3. DIY drone frame Kit
  4. Wheelbase: 150mm
  5.  Paddle: 3 inch paddle
  6.  Flight control hole distance: 20x20mm

Package Includes :

  • 1 X HF150 150mm 3 inch Carbon Fiber Frame



Specification:

Thickness

Arm 4.0mm, other plates 2.0mm

Paddle

3 inch paddle

Flight control hole distance

20x20mm

Camera installation width

19mm

Motor

13xx, 14xx series (9×12)

Structure

X-type split

Aluminum column height

25mm

Shipping Weight 0.055 kg
Shipping Dimensions 15 × 12 × 1 cm
