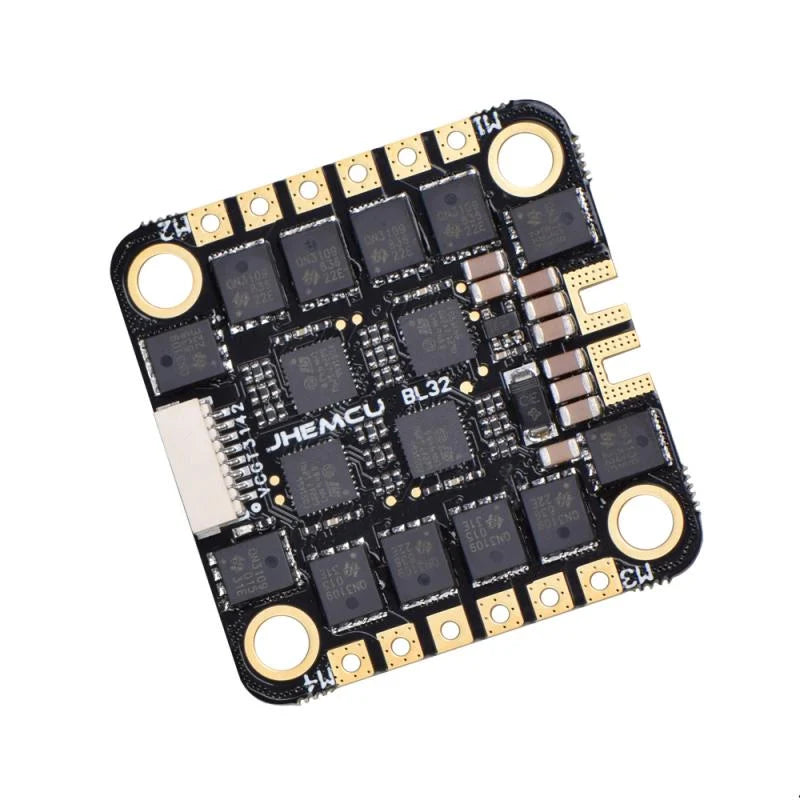

Jhemcu Blheli_32- 40A 4In1 3-6S Esc

Regular price
Rs. 4,499.00
Sale price
Rs. 4,499.00
Regular price
Earn 2249 Reward Points. Learn More...
Order in the next
to get it by
Details

Properties:

  1. Supply Voltage:12-26 V
  2. Continous working Current:55 A
  3. Firmware: BLHELI 32 ESC

Full- Description

If you are wandering to build a drone and don’t know what will be the best ESC for you then worry no more, we have got your back. At Robu, we have everything for you to get started with your drone project.

BLHELI_S BL32- 40A 4IN1 3-6S ESC is a completely digital signal, Oneshot and multishot are analog signals. During the use of analog signals, ESC hardware and software will generate some noise, which is clutter. If there is too much clutter, you need to add a filter capacitor or resistor to hardware filtering. (Off-topic, those who need to remove the capacitor is probably the case) and it is a digital signal, do not need to calibrate the ESC, no filtering is required during the transmission!

It is designed for multi-axis UAV transition machines. Accurate speed control, accurate signal acquisition. ESC uses a 32-bit ARM Cortex MCU STM32F051 48MHZ processor, 2048-level throttle resolution, unique algorithm control, and strong anti-interference ability. You can upgrade the firmware online or change the configuration parameters via the signal line.

ESC comes with a current sensing module that can cooperate with flight control to detect current value. ESC adopts an adaptive control system and is compatible with most motors on the market. The PCB board adopts thickened 6-layer treatment, the internal resistance heat generation is small, the layout of the components is optimized, and the installation is more convenient.

For more 40 A ESC’s, Click here


Features :

  1. 32Bits ARM Cortex MCU STM32F051 48MHZ CPU
  2. Strong anti-interference ability
  3. PCB adopts 6-layer, low inner resistance
  4. Built-in Current detection module, which can cooperate with the flight control to detect the current value
  5. The Dshot series calls the BB21MCU. 48Mhz
  6. Support 2S-6S, 4PWM input without BEC
  7. Support for Oneshot / Multishot /Dshot BLHELI-32 firmware
  8. You can upgrade the firmware online or change the configuration parameters via the signal line.
  9. ESC comes with a current sensing module that can cooperate with flight control to detect current value.
  10. ESC adopts an adaptive control system and is compatible with most motors on the market.

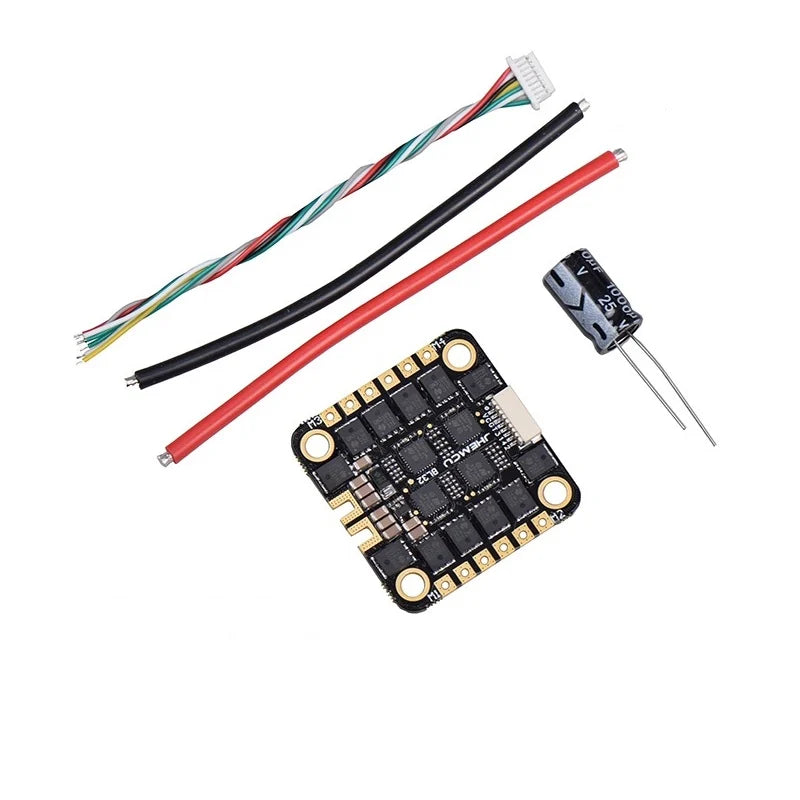

                        Package Includes:

                        • 1 x JHEMCU  40A 4IN1 3-6S ESC
                        • 2 x Wire 12AWG 100mm (Red + Black)
                        • 1 x 1000μF 25v Capacitor
                        • 1 x Connecting Cable


                        Specification:

                        Model

                        JHEMCU BS-55A ESC

                        Supports

                        Oneshot / Multishot /Dshot, BLHELI-32 PWM control signal

                        Power supply voltage

                        3-6S (12-26V)

                        Continuous working current

                        55A

                        BEC

                        No built-in 5V BEC output

                        Firmware

                        BLHELI 32 ESC

                        Mounting hole spacing (mm)

                        30.5 * 30.5MM

                        Length (mm):

                        40

                        Width (mm):

                        40

                        Height (mm):

                        6.1

                        Weight (gm)

                        10.9

                        Shipping Weight 0.016 kg
                        Shipping Dimensions 8 × 5 × 1 cm
