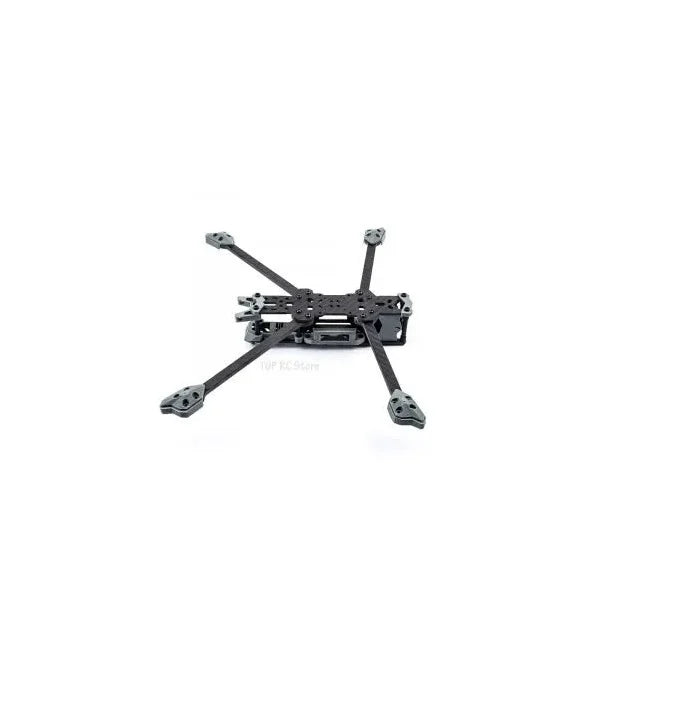

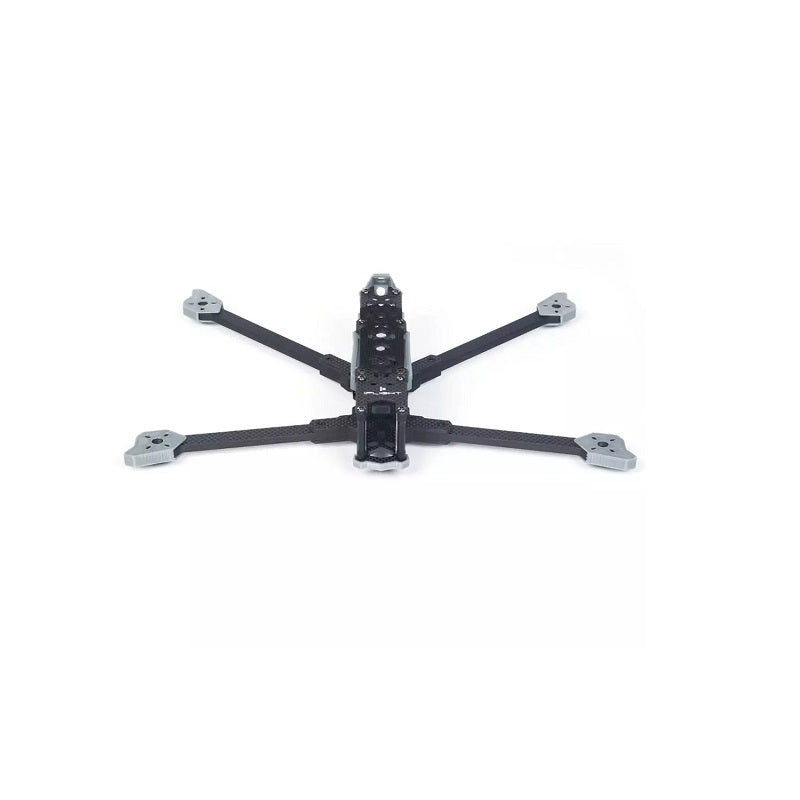

TITAN DC7 HD 333mm FPV Freestyle Frame

Rs. 3,719.00
Rs. 3,719.00
Write a Review
Earn 1859 Reward Points. Learn More...

Here is only a suggestion: Reward Points function (demo function). To use real Reward Points, you need a 3rd party Shopify App.

Your items may arrive sooner than the estimated delivery date. Ralph Lauren reserves the right to send packages via other shipping methods based on the shipping destination as long as orders will still arrive within the arrival times outlined on RalphLauren.com.

When you choose the Economy delivery option, packages are delivered Monday through Saturday 8 AM to 4:30 PM. Orders sent by Fast, 2-Business-Day or Next-Day shipping methods are delivered Monday through Friday from 8 AM to 4:30 PM.

We recommend choosing Fast or Next-Day delivery if you are shipping your package to a business address. You will be asked to provide a telephone number on the shipping page of checkout, which is important in the event the courier needs to arrange a delivery time with you.

You will also be asked to provide an email address, to which we will send confirmation that your order was placed.

Add to wishlist Added to wishlist
Order in the next
to get it by
Ask us any Question
Details

Properties:

  1. Product: TITAN DC7 HD 333mm FPV Freestyle Frame
  2. Wheelbase (mm): 333
  3. Main body dimension (mm): 183*287
  4. Bottom-to-top distance (mm): 35
  5. Arm thickness (mm): 6

Full- Description

The TITAN DC7 HD Frame perfectly fits the amazing new DJI FPV system with boomerang arms, this quad makes flying FPV truly breathtaking.

Features :

  1. Popular Deadcat style configuration, No prop in View
  2. Optimized weight distribution: DJI unit and Stack centered
  3. Fits both 30.5x and 20x stacks
  4. Full 3K Carbon Fiber airframe with chamfered boomerang arm

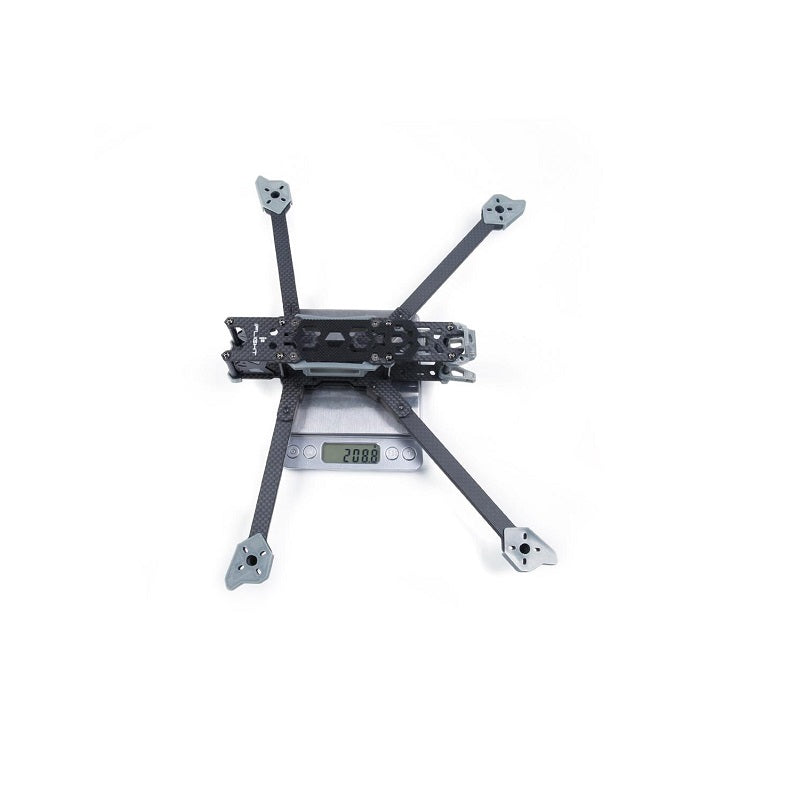

  5. 333mm wheelbase, weight: 208.8g dry with TPU parts
  6. Recommended motors: 22xx, 23xx

Package Includes :

  • 1 x TITAN DC7 HD Frame
  • 1 x Screw Bag
  • 1 x TPU Camera mount adapters
  • 4 x Arm guard/Motor mount
  • 1 x TPU Bracket Mount for DJI Air Unit
  • 1 x TPU Antenna Mount for DJI Air Unit Antenna
  • 1 x TPU bottom plate front protective mount
  • 1 x TPU bottom plate rear protective mount
  • 1 x Battery Anti-slip Mat
  • 2 x Battery Straps




Specification:

Main body dimension (mm)

183*287
Bottom-to-top distance (mm)

35
Arm thickness (mm)

6
Bottom plate thickness (mm)

3
Top plate thickness (mm)

2.5
Camera plate thickness (mm)

1.5mm( 2.5mm included TPU inserts)
Mounting Holes

30.5*30.5mm / 20*20mm
Support camera size

19*19mm 22*22mm
Shipping Weight 0.302 kg
Shipping Dimensions 16 × 8 × 4 cm
