Details

Properties:

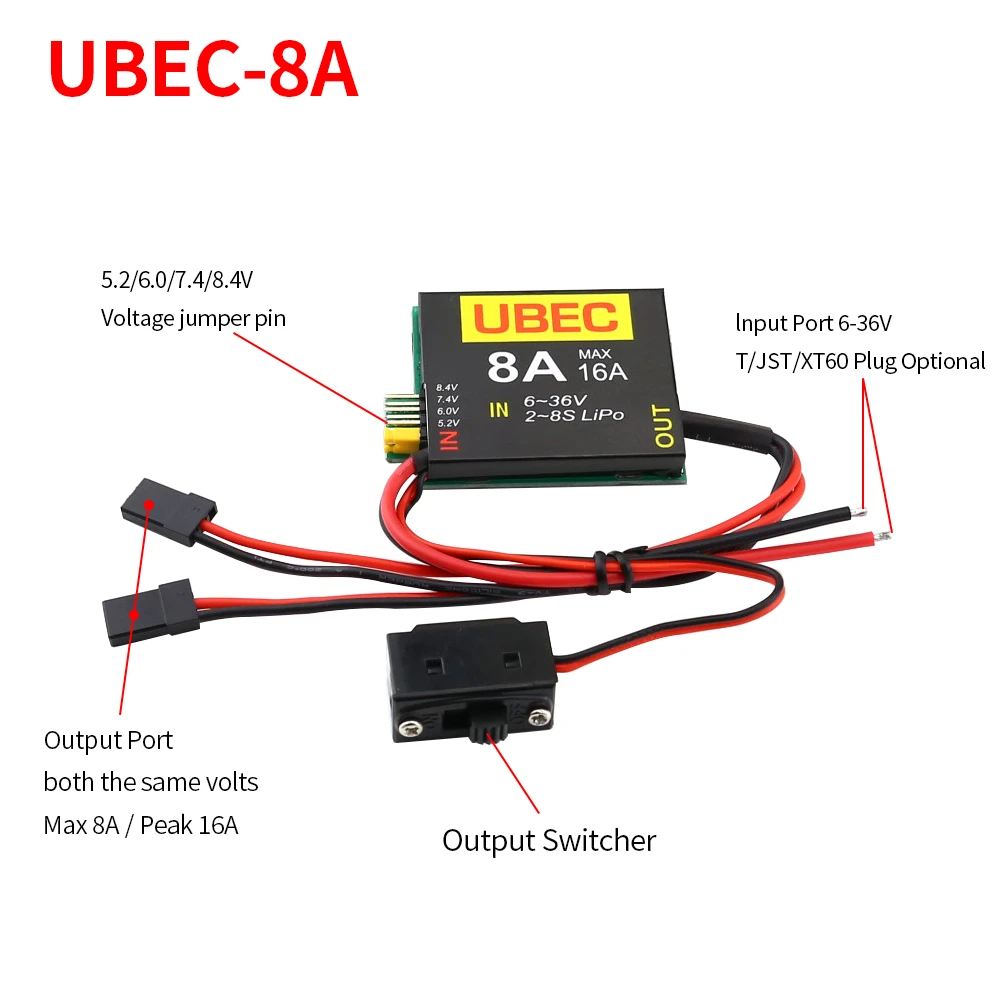

  1. Model: 8A-UBEC is a DC-DC regulator
  2. Input: 6V-36V (2-8 cells lithium battery pack)
  3. Output Voltage: 5.2V,6.0V,7.4V,8.4V  optional
  4. Continuous output current: 8 Amps
  5. Burst output current: 15 Amps

Full- Description

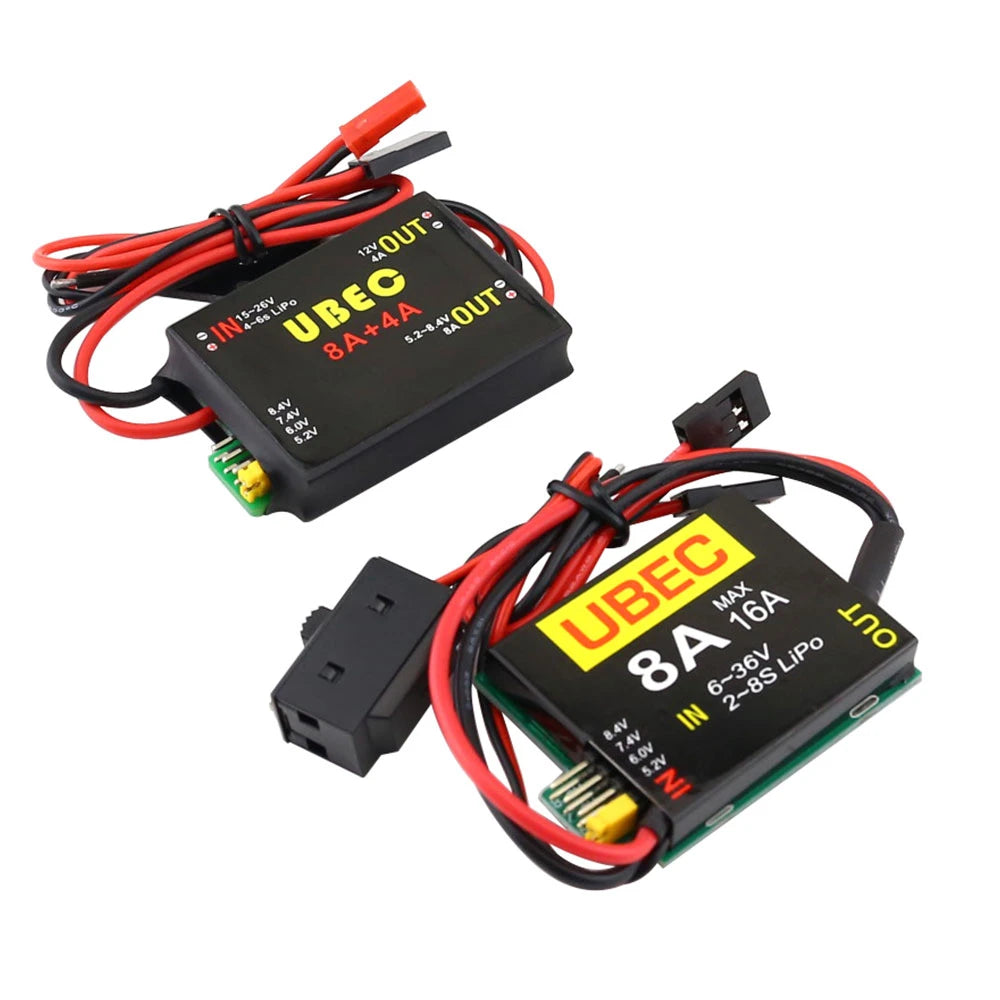

The 8A-UBEC is a switching-mode DC-DC regulator supplied with a 2-3 cells lithium battery pack and it outputs a consistent safe voltage for your receiver, gyro and servos. It is very suitable for nitro powered RC helicopter (bigger than 30 class) and big fixed-wing aircraft.
Compared with the linear mode UBEC, the overall efficiency of the switching-mode BEC is much higher, so it can extend the working time of the receiver battery pack, and because a switch mode UBEC can significantly reduce the heat emission, it can avoid the loss of control caused by the over-heat problem which is frequently happened with the linear mode UBEC.

Features :

  1. It adopted the advance DC-DC regulator chip with conversion efficiency exceeds 90%
  2. Applicable for all kinds of recievers/gyros/servos,etc
  3. Dual parallel output can carry larger current
  4. Cables provide larger current to flow into the receiver
  5. The external switch can turn on/off  the UBEC easily.

Package Includes:

  • 1 x Ubec-8A 6-36V 2~8S LIPO ESC

Specification:

Model

8A-UBEC is a DC-DC regulator
Input

6V-36V (2-8 cells lithium battery pack) Weight 36g
Max. Output Current (A)

8 Amps
Burst Current (A)

(Output) 15 Amps
Output Voltage(V)

5.2V, 6.0V, 7.4V, 8.4V Optional
Shipping Weight 0.037 kg
Shipping Dimensions 12 × 10 × 1 cm
