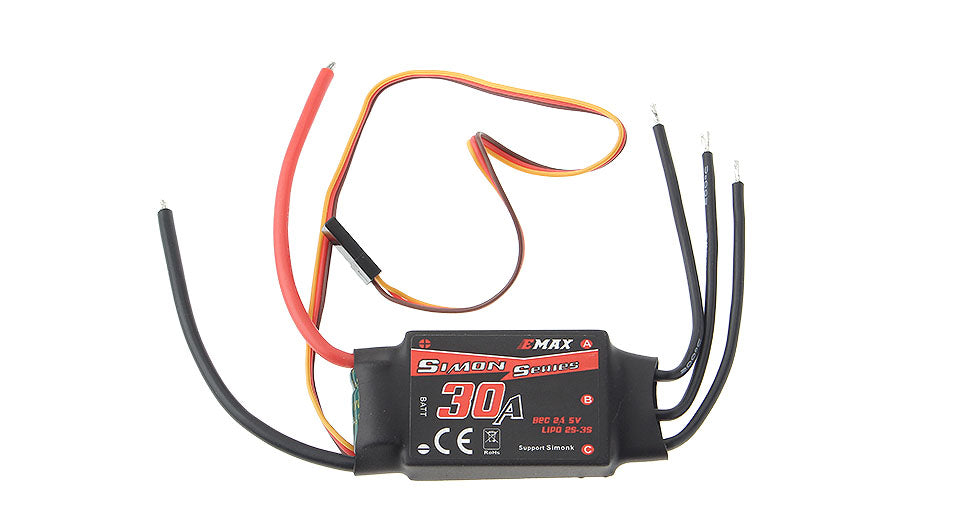

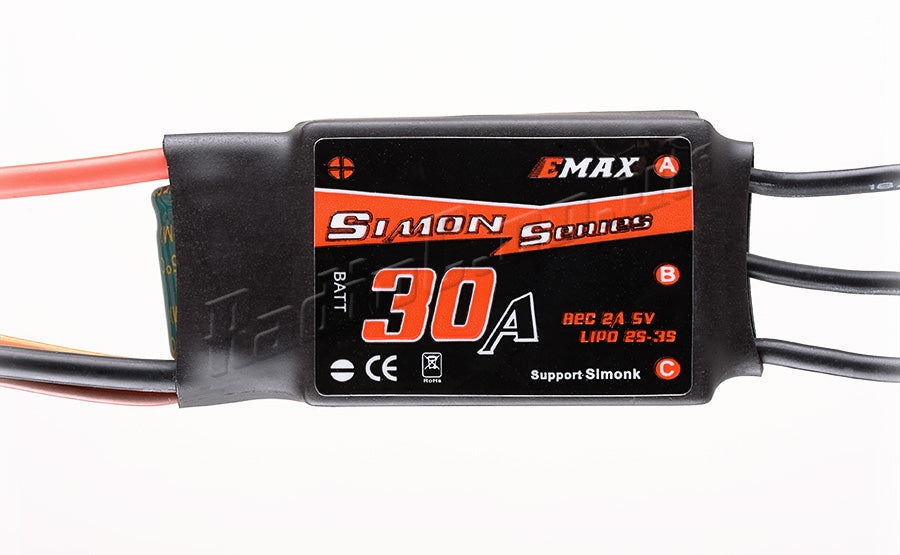

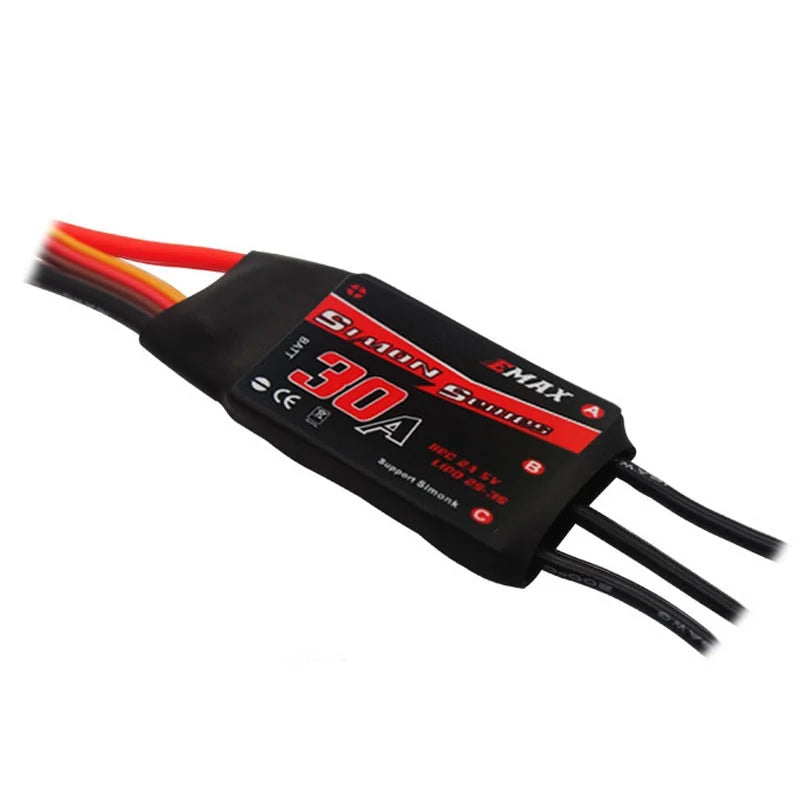

Emax SimonK Series Multirotor 30A Brushless ESC (Original)

Rs. 1,665.00
Rs. 1,665.00
Write a Review
Earn 832 Reward Points. Learn More...

Here is only a suggestion: Reward Points function (demo function). To use real Reward Points, you need a 3rd party Shopify App.

Your items may arrive sooner than the estimated delivery date. Ralph Lauren reserves the right to send packages via other shipping methods based on the shipping destination as long as orders will still arrive within the arrival times outlined on RalphLauren.com.

When you choose the Economy delivery option, packages are delivered Monday through Saturday 8 AM to 4:30 PM. Orders sent by Fast, 2-Business-Day or Next-Day shipping methods are delivered Monday through Friday from 8 AM to 4:30 PM.

We recommend choosing Fast or Next-Day delivery if you are shipping your package to a business address. You will be asked to provide a telephone number on the shipping page of checkout, which is important in the event the courier needs to arrange a delivery time with you.

You will also be asked to provide an email address, to which we will send confirmation that your order was placed.

Add to wishlist Added to wishlist
Order in the next
to get it by
Ask us any Question
Details

Properties:

  1. Model: Emax SimonK Series.
  2. LiPo Battery Input: 2 ~ 3S.
  3. Continuous Current: 30A.
  4. Burst Current(10S): 40A (for 10Sec).
  5. BEC Mode: Linear.
  6. BEC Output: 1A/5V.

Full- Description

Emax SimonK Series Multirotor 30A Brushless ESC (Original) is a brushless dc motor speed controller. The low output resistance greatly enhances power stability, and this will improve the great battery life. Emax SimonK Series Multirotor 30A Brushless ESC is programmed to start the brushless dc motor. This ESC has a greater current handling capacity which is 30A continuous and the peak current is 40A for the last 10 seconds only.

100% Guaranteed of Original & Genuine Emax Product


Features :

  1. Based on SimonK firmware, further optimized to the perfect drive performance.
  2. Low-voltage protection, over-heat protection, and throttle signal loss protection.
  3. Separate power supply for MCU and BEC, enhancing the ESC’s ability to eliminate magnetic interference.
  4. Parameters of the ESC can be set via a program card or transmitter.
  5. Throttle range can be set to be compatible with different receivers.
  6. Equipped with built-in linear BEC or switch BEC.
  7. Max speed: 210,000 rpm for 2-pole, 70,000 rpm for 6-pole, 35,000 rpm for 12-pole.

Package Includes:

  • 1x Emax SimonK Series Multirotor 30A Brushless ESC module.

Specification:

Model

Emax SimonK Series 30A
Burst Current (A)

40
Constant Current (A)

30
BEC

Yes (5V/2A)
Suitable Lipo Batteries

2 ~ 3S
Color:

Black and Red
Dimensions (mm) LxWxH

52 x 26 x 7
Weight (g):

28
Application

BLDC Motors, Multirotors, Rc Planes etc.
Shipping Weight 0.03 kg
Shipping Dimensions 6 × 3 × 1 cm
