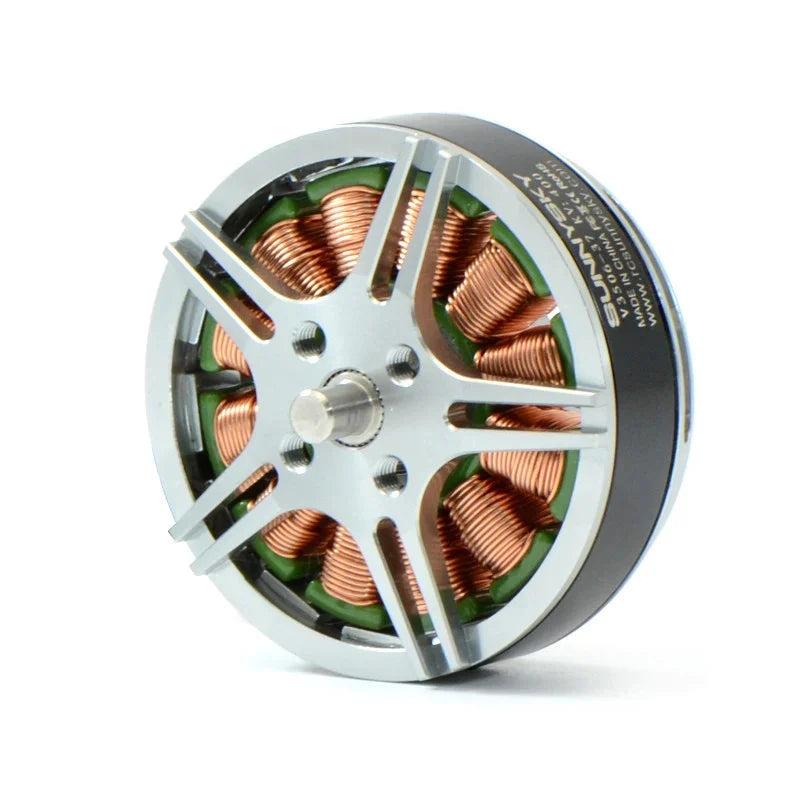

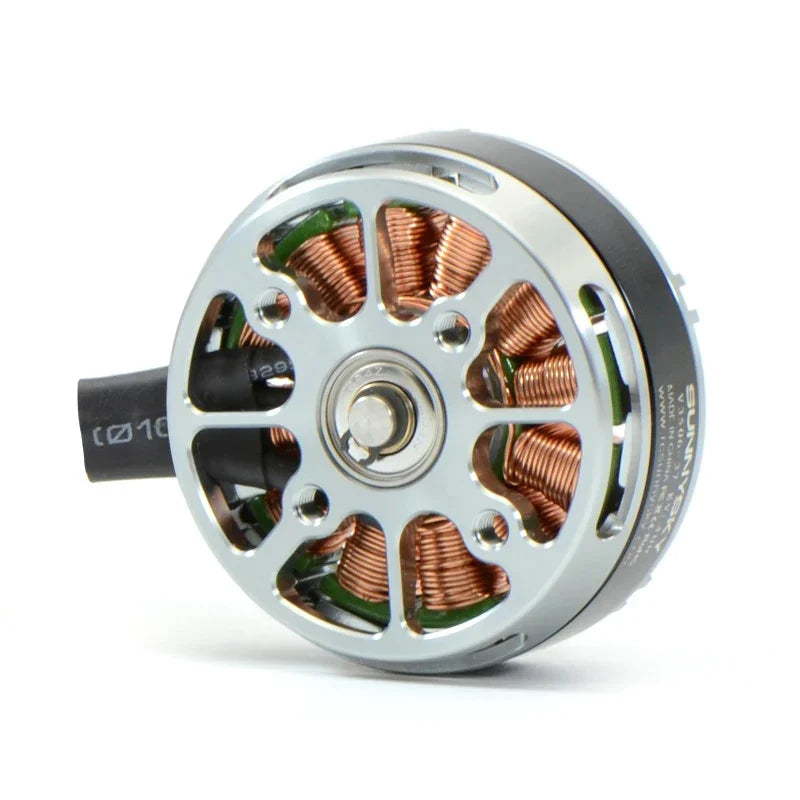

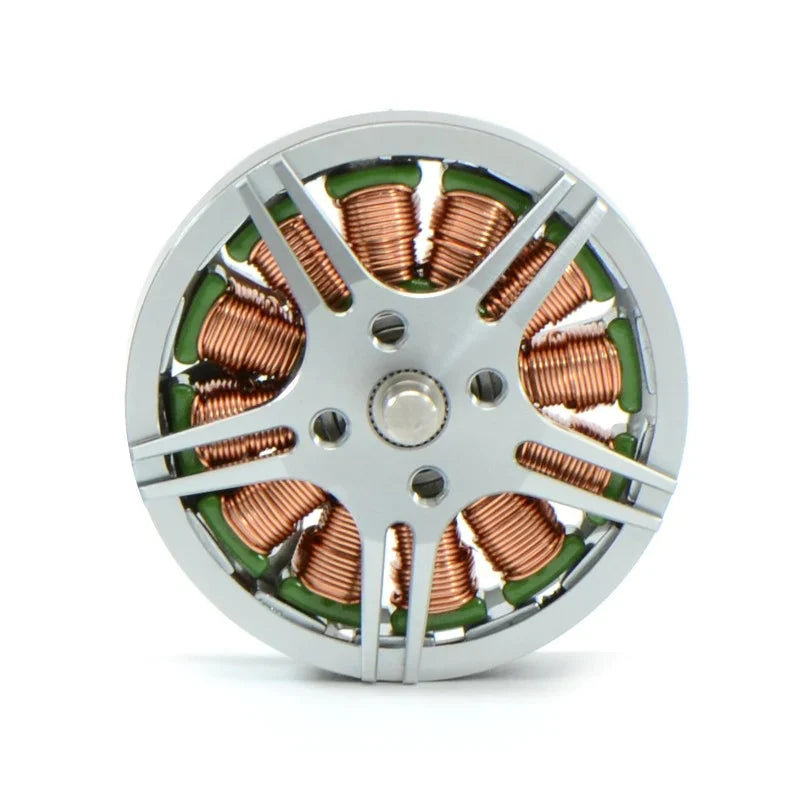

Sunny Sky V3506 KV400 Brushless Motors

Rs. 4,177.00
Rs. 4,177.00
Write a Review
Earn 2088 Reward Points. Learn More...

Here is only a suggestion: Reward Points function (demo function). To use real Reward Points, you need a 3rd party Shopify App.

Your items may arrive sooner than the estimated delivery date. Ralph Lauren reserves the right to send packages via other shipping methods based on the shipping destination as long as orders will still arrive within the arrival times outlined on RalphLauren.com.

When you choose the Economy delivery option, packages are delivered Monday through Saturday 8 AM to 4:30 PM. Orders sent by Fast, 2-Business-Day or Next-Day shipping methods are delivered Monday through Friday from 8 AM to 4:30 PM.

We recommend choosing Fast or Next-Day delivery if you are shipping your package to a business address. You will be asked to provide a telephone number on the shipping page of checkout, which is important in the event the courier needs to arrange a delivery time with you.

You will also be asked to provide an email address, to which we will send confirmation that your order was placed.

Add to wishlist Added to wishlist
Order in the next
to get it by
Ask us any Question
Details

Properties:

  1. Stator Diameter: 35mm
  2. Stator Thickness: 6mm
  3. No.of Stator Slots: 12
  4. No.of Rotor Poles: 14
  5. Motor Kv: 400
  6. No-load current: 0.3A/10V
  7. Recommended single take-off Weight: ≤550g

Full- Description:

Sunnysky V series of motors are specially designed to power long-endurance multirotor aircraft. Design styles of the whole series are high efficiency, stable structure, lightweight, high consistency, etc. These flat Sunny Sky V3506 motors are designed for long-flight time multi-rotors. These motors can produce enough torque at low RPM and work at peak efficiency during flight.

The whole series uses Sunnysky’s patented Stepped and knurled design that not only efficiently prevents motors from getting loose, but also reduces the probability of malfunction and unstable output power. The whole series use original Japanese EZO bearings that provide quiet and stable flight in the air.

With the guarantee of strength, the caps of V motors are highly hollow-cutted to save weight, so that these Sunny Sky V3506 motors can reach maximum thrust-to-weight ratio and gain more flight time.

Features:

  1. High Performance: The Sunny Sky V3506 KV400 motors deliver outstanding power and efficiency for your RC aircraft or drone.
  2. Precision Engineering: Crafted with meticulous attention to detail, these motors ensure smooth and reliable operation.
  3. Versatile KV Rating: With a KV rating of 400, they suit various flying styles, from agile acrobatics to stable aerial photography.
  4. Durable Build: Built to withstand rigorous flights and environmental conditions, ensuring longevity and reliability.
  5. Easy Installation: The motors come with user-friendly connectors, simplifying the setup process.
  6. Enhanced Cooling: The design incorporates efficient cooling to prevent overheating during demanding flights.

Package Includes:

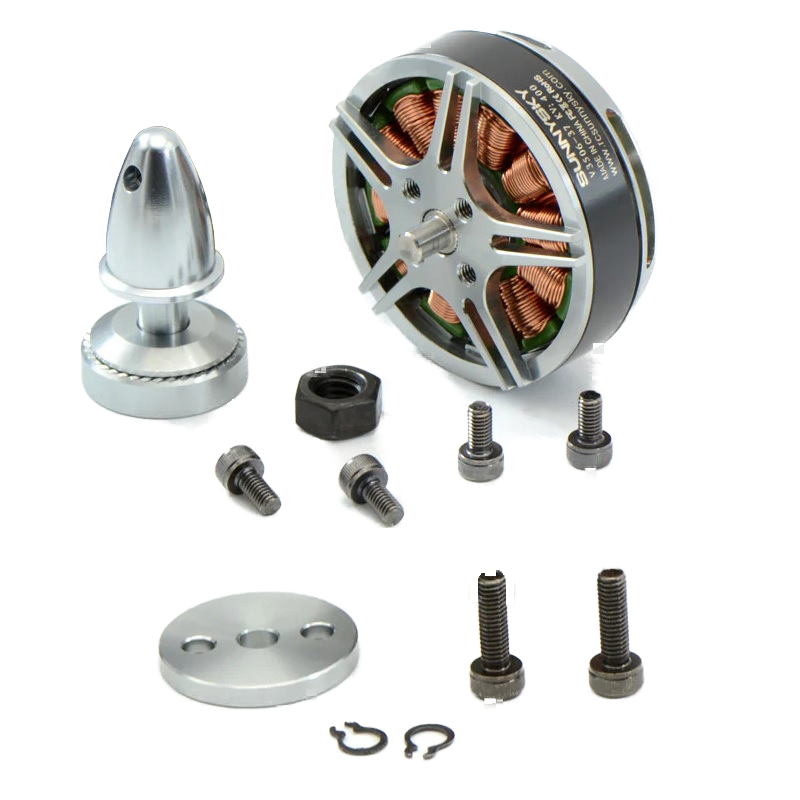

  • 1 x Sunny Sky V3506 KV400 Brushless Motors

        Specification:

        Stator Diameter

        35mm
        Stator Thickness

        6mm
        No. of Stator Arms

        12
        No. of Stator Poles

        14
        Motor KV

        400
        No-Load Current (A/10V)

        0.3A/10V
        Motor Resistance

        330mΩ
        Max Continuous Current

        13A/180s
        Max Continuous Power

        315W
        Motor Weight(gm)

        84
        Outside Diameter (OD) mm

        41.8
        Motor Body Length(mm)

        18
        Required ESC (A)

        20-30
        Recommended Prop(inch)

        EOLO CN11x4.5, EOLO CN12x5, EOLO CN13x5, EOLO CN15x5.5
        Shipping Weight 0.183 kg
        Shipping Dimensions 12 × 9 × 5 cm
